Luus DRO-810 Commercial Gas Duck Oven | 12 Duck Capacity 83Mj

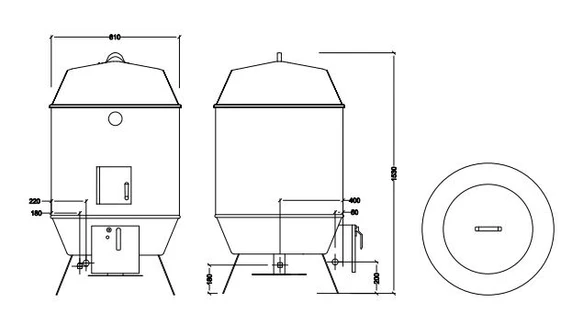

The Luus DRO-810 Single Roasting Burner Commercial Duck Oven is a high-yield, vertical gas roasting drum engineered specifically for Australian Cantonese barbecue restaurants, roast meat eateries, Asian dining establishments, hotels, and high-volume commercial catering kitchens. Featuring an internal diameter of 810 mm, an external diameter of 830 mm, an overall height of 1530 mm, and an unpacked weight of 42 kg, this specialised vertical roaster is driven by an 83 Mj/h heavy-duty cast iron nozzle burner. Designed to roast up to 12 ducks simultaneously on an internal heavy-gauge stainless steel hanging rail, the DRO-810 incorporates double-skin thermal insulation, an external door-mounted temperature dial, an integrated grease overflow management system, and an automatic high-temperature safety cut-off device, ensuring succulent meat, blistered crispy skin, and consistent thermal control across continuous service rotations.

Why commercial barbecue and Asian dining operators choose the Luus DRO-810:

• High-power 83 Mj/h cast iron nozzle burner — generates intense, consistent convective heat (83 Mj/h in both Natural Gas and LPG) to rapidly render duck fat, caramelise marinades, and create authentic, crackling Cantonese roast duck skin.

• 12-duck commercial capacity — heavy-duty circular internal hanging rail accommodates up to 12 standard commercial ducks, pork bellies (siu yuk), or char siu strips in a single batch, easily managing peak weekend trading.

• Double-skin insulated construction — dual-layer stainless steel drum structure retains thermal energy efficiently within the chamber, reducing ambient heat dissipation into the kitchen, shortening roast cycles, and protecting operators from accidental touch burns.

• Precision external temperature gauge — clear, front-mounted analogue dial provides continuous at-a-glance monitoring of internal drum roasting heat without lifting the lid and losing chamber pressure.

• Integrated grease overflow & waste drainage — built-in base overflow pipe paired with an accessible waste release ball valve routes rendered fat and juices safely out of the combustion zone into grease collection pans, eliminating grease-fire hazards.

• Convenient lower service hatch & front access — hinged lower service door fitted with a durable zinc-aluminium alloy handle allows swift access to the burner nozzle, pilot assembly, and isolation valves for lighting, adjustment, and technical servicing.

• Comprehensive safety protection — equipped with a continuous standing pilot, Flame Failure Device (FFD), and an automatic high-temperature safety cut-off mechanism that shuts off the gas supply if the drum exceeds safe operational thresholds.

• Modular 4-piece heavy-duty assembly — designed as a modular 4-piece unit with a removable lift-off lid and access points, streamlining installation through standard doorways and facilitating deep cleaning.

• Comprehensive Australian warranty — supplied with a 1-Year commercial warranty, extendable to 2 Years upon free product registration with Luus Australia.

Technical Specifications

Daily Care, Maintenance & End-of-Shift Sanitisation

1. Draining Rendered Duck Fat: After each roasting cycle, place an approved metal grease container beneath the waste release ball valve at the bottom of the drum. Open the ball valve slowly to drain rendered hot oil and juices completely. Never leave standing grease inside the roaster between services.

2. Internal Drum Cleaning: Once the drum has cooled to a safe handling temperature, remove the circular hanging rail and lift-off lid. Wash the interior stainless steel walls using warm water, a commercial degreaser, and a non-scratch sponge to remove fat splatters and baked-on marinade glaze. Rinse thoroughly and allow the drain to carry wash water through the open ball valve.

3. Burner & Jet Inspection: Open the lower access hatch to inspect the 83 Mj/h cast iron nozzle burner. Clear any fat drippings or debris away from the gas ports and the pilot assembly with a stiff nylon brush. Never spray chemical degreasers or water directly into the gas burner nozzle or thermocouple.

4. Grease Overflow Pipe Maintenance: Periodically check the base overflow tube to ensure it remains clear of solid animal fats and carbon deposits, maintaining an unrestricted drainage path for fat discharge.

Gas, Ventilation & Installation Guidelines

The Luus DRO-810 is an industrial gas cooking appliance that must be installed in accordance with national safety regulations:

1. Licensed Gas Fitter Installation: Must be installed, tested, and commissioned by an authorised, licensed gas fitter in strict compliance with current AS/NZS 5601 gas installation regulations, local municipal health ordinances, and manufacturer instructions. An official gas compliance certificate must be retained to validate the warranty.

2. Gas Supply & Sizing: Connect to a dedicated gas supply line terminating at an approved isolation valve. The unit consumes 83 Mj/h and requires adequate gas line sizing (typically 3/4" BSP pipework) to prevent pressure drop-offs when other high-draw kitchen equipment (such as wok ranges or fryers) is in active use. Specify Natural Gas or LPG at the time of ordering to receive the correctly calibrated gas regulator.

3. Extraction & Canopy Requirements: The roaster generates significant convective heat, steam, and vaporised fat. It must be installed directly beneath an approved commercial kitchen exhaust hood compliant with AS 1668.2. Maintain a minimum vertical clearance of at least 450 mm between the top of the roaster lid and the lower filters of the kitchen exhaust canopy.

4. Safety Clearances: Maintain minimum clearances of 300 mm from combustible walls and surfaces, or a minimum of 50 mm from non-combustible building materials. Ensure the base sits firmly on a level, fireproof commercial kitchen floor.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia to commercial business premises with level access or a loading dock. Because this equipment ships in a large crated format (940 x 860 x 1470 mm, 69 kg gross), deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our commercial sales team prior to placing your order to verify site delivery access, doorway widths, and preferred gas connection type (Natural Gas or LPG).

Frequently Asked Questions

What makes a vertical gas duck oven superior to a standard combi or convection oven?

A vertical duck oven utilizes an upward-draft convective roasting chimney powered by an intense central nozzle burner. By hanging ducks vertically from a top rail, radiant and convective heat circulates evenly around the entire carcass. Rendered fat drips naturally away from the meat into the base drainage channel rather than pooling on a roasting pan, resulting in crisp, evenly coloured, blistered skin and tender, juicy meat without manual turning.

How does the double-skin construction benefit the kitchen?

The double-skin stainless steel wall creates an insulated barrier that traps intense radiant heat inside the roasting chamber. This accelerates cooking times, ensures consistent internal temperatures from top to bottom, lowers overall gas consumption, and keeps the external outer drum significantly cooler to the touch, improving safety for kitchen staff in tight spaces.

Can the Luus DRO-810 roast items other than duck?

Yes. Although purpose-built for Peking and Cantonese roast duck, the heavy-gauge circular hanging rail is widely used for hanging Chinese roast pork belly (siu yuk), barbecue pork strips (char siu), whole chickens, crispy pork ribs, and hanging poultry cuts.

What is the function of the high-temperature cut-off safety feature?

Commercial duck roasters operate at sustained high temperatures with high volumes of rendering animal fat. The automated high-temperature cut-off device continuously monitors chamber heat; if internal temperatures rise past safe thresholds (which could ignite accumulated fat vapours), the system automatically cuts the main gas supply to prevent flare-ups.

How does the extendable warranty work?

The Luus DRO-810 comes standard with a 1-Year commercial parts and labour warranty. Venue operators can extend this coverage to a total of 2 Years at no additional charge by registering the product online with Luus Australia within the registration window following installation.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
