Streamline dishwashing workflows and warewashing pass-through lines with the DSBD7-2400R/A 2400mm Commercial Stainless Steel Right Inlet Double Sink Dishwasher Bench. Engineered specifically for high-volume Australian commercial kitchens, restaurants, cafés, clubs, and catering venues, this heavy-duty sink bench is designed to connect seamlessly to the right-hand inlet side of commercial pass-through dishwashers.
Fabricated from premium 1.2mm SUS304 (18/8) food-grade stainless steel, the benchtop features two fully welded, polished double sink bowls (450mm W × 450mm D × 300mm H) each fitted with standard 90mm drain holes. Reinforced underneath with XPS insulation board and heavy-duty stainless steel ‘U’ channel supports, it incorporates a 15mm wet edge to prevent water spillage onto kitchen floors and a 180mm fully enclosed bevelled splashback. Supported by 6 sturdy tubular stainless steel legs with fully adjustable polished disc feet, the DSBD7-2400R/A provides exceptional stability and long-lasting durability in demanding wash-up zones.
Key Features & Specifications
-
Right Inlet Dishwasher Orientation: Purpose-built for right-side pass-through dishwasher entry (when facing the bench, the sinks and dishwasher inlet connection are located on the right side).
-
Dual Fully Welded Sink Bowls: Includes two spacious 450mm × 450mm × 300mm deep sink bowls, fully welded and polished inside and out, each with a 90mm Ø drain hole for standard commercial waste outlets.
-
Premium 304-Grade Stainless Steel Construction: Constructed from 1.2mm thick SUS304 (18/8) stainless steel for maximum corrosion resistance, hygiene, and durability.
-
Reinforced Benchtop & Wet Edge: Benchtop is lined with 15mm XPS insulation board, stainless steel backing panel, and special ‘U’ channel reinforcements, complete with a 15mm wet edge to control water run-off.
-
180mm High Bevelled Splashback: Stainless steel-backed, 180mm high by 30mm thick fully enclosed bevelled splashback protects walls from splashes and water damage.
-
6-Leg Heavy-Duty Support Structure: Features 6 sturdy 42mm Ø stainless steel legs (1.2mm thick) with fully adjustable polished disc feet for easy leveling on uneven commercial kitchen floors.
-
Flat-Packed for Easy Assembly & Transport: Supplied flat-packed with an instruction manual and required tools for quick and straightforward on-site setup.
-
Optional Castor Mobility: Compatible with lockable commercial castor kits for mobile kitchen cleaning access.
Detailed Technical Specifications
| Feature |
Specification |
| Product Model / SKU |
DSBD7-2400R/A |
| Product Type |
Commercial Double Bowl Dishwasher Sink Bench |
| Inlet Configuration |
Right Inlet (Sinks & dishwasher connection on right side when facing bench) |
| Bench Dimensions (W x D x H) |
2400 mm × 700 mm × 900 mm |
| Bowl Dimensions (W x D x H) |
2 × 450 mm × 450 mm × 300 mm Deep |
| Drain Hole Diameter |
90 mm Ø Standard Waste Hole |
| Benchtop Material |
1.2 mm Premium SUS304 (18/8) Stainless Steel |
| Benchtop Reinforcement |
15 mm XPS Insulation Board + S/S Backing Panel + 'U' Channels |
| Wet Edge Protection |
15 mm Wet Edge |
| Splashback Profile |
180 mm High × 30 mm Thick (Bevelled, Fully Enclosed S/S Backed) |
| Leg Configuration |
6 × 42 mm Ø Stainless Steel Legs (1.2 mm thick) |
| Foot Type |
Fully Adjustable Polished Stainless Steel Disc Feet |
| Assembly & Delivery |
Flat-Packed (Includes assembly tools & instruction manual) |
| Mobility Option |
Castor Kits Available (Lockable) |
| Warranty |
2 Years Parts Only Warranty |
Inlet Direction Clarification:
• Right Side Sink Inlet Bench (DSBD7-2400R/A): When facing the bench, the dishwasher inlet and sinks are located on the right side.
• Left Side Sink Inlet Bench: When facing the bench, the dishwasher inlet and sinks are located on the left side.
Delivery Information: Residential address deliveries require a custom freight quote. Kindly contact our friendly sales team prior to placing your order to arrange delivery to a residential address.

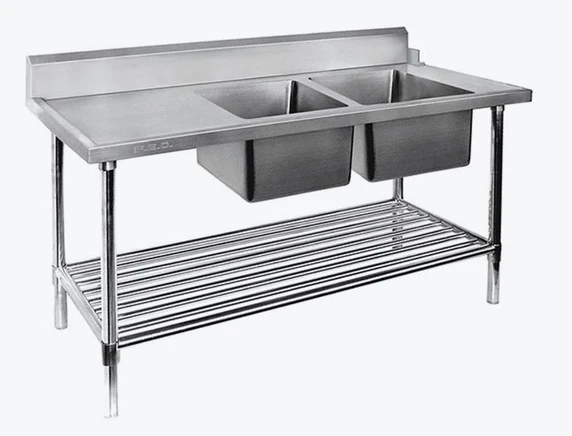

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
