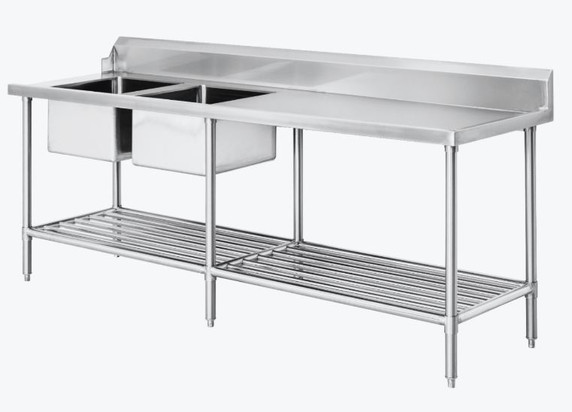

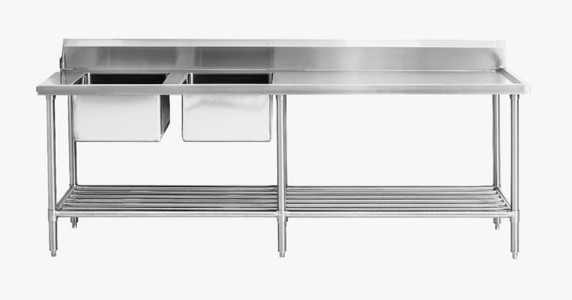

Modular Systems DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench (2400mm)

[MODULAR_SYSTEMS_MSG]

The Modular Systems DSBD7-2400L/A All Stainless Steel Left Inlet Double Sink Dishwasher Bench is a premium, high-capacity commercial wash station engineered specifically for high-volume Australian kitchens, restaurants, catering venues, and food production facilities. Measuring an expansive 2400mm in width, with a standard 700mm depth and a 900mm working height, this heavy-duty double sink bench features a Left-Hand Inlet orientation—meaning when facing the bench, the dishwasher inlet and double sink assembly are situated on the left-hand side for seamless integration with pass-through dishwashers.

Built from high-grade 1.2mm SUS304 (18/8) food-grade stainless steel, this bench includes two fully welded, polished sink bowls (450mm W x 450mm D x 300mm H each with standard 90mm drain holes) and a protective 15mm wet edge to prevent water spillover. The benchtop is reinforced with an internal 15mm XPS insulation board and multiple heavy-duty stainless steel 'U' channel supports, engineered to handle an exceptional 480kg load rating. Supported by 6 x 42mm stainless steel legs with adjustable polished disc feet and a 180mm high fully enclosed splashback, it ships flat-packed with assembly tools and is backed by a 2-Year Parts-Only Warranty.

Why Choose the Modular Systems DSBD7-2400L/A Double Sink Dishwasher Bench?

Choosing the Modular Systems DSBD7-2400L/A Double Sink Dishwasher Bench equips high-volume commercial wash areas with an ultra-durable, hygienic, and streamlined pass-through solution.

Key reasons commercial kitchen operators specify the Modular Systems DSBD7-2400L/A include:

• Maximum 480kg Benchtop Load Capacity: Heavy-duty 1.2mm SUS304 stainless steel benchtop lined with a 15mm XPS board and multiple stainless steel 'U' channels easily holds heavy pot loads, dish racks, and commercial dishwashing equipment up to 480kg.

• Dual Fully Welded Commercial Sink Bowls: Features two spacious 450mm x 450mm x 300mm deep sink bowls, fully welded and polished inside and out, each equipped with a standard 90mm drain hole for rapid drainage and basket waste fitting.

• Left-Hand Inlet Configuration: Purpose-designed left-side orientation aligns perfectly with pass-through dishwashers when facing the unit, creating an efficient pre-rinse and wash workflow.

• 15mm Wet Edge Spillage Protection: Engineered with a raised 15mm wet edge perimeter around the benchtop to contain water splashes and prevent liquid overflow onto kitchen floors.

• Integrated 180mm Fully Enclosed Splashback: Features a 180mm high x 30mm thick bevelled, stainless steel-backed splashback that seals tightly against rear walls to eliminate moisture traps and food buildup.

• Reinforced 6-Leg Assembly with Adjustable Feet: Fitted with 6 x 42mm diameter stainless steel legs and fully adjustable polished disc feet to ensure rigid stability across wide 2400mm spans and uneven floors.

• Flat-Packed for Fast Assembly: Ships flat-packed for reduced transport freight costs, complete with all necessary assembly tools and step-by-step instructions.

• Castor Kit Compatibility: Compatible with optional lockable castor wheel kits for mobile cleaning convenience.

• 2-Year Warranty Protection: Supported by a 2-Year Parts-Only Warranty for long-term commercial reliability.

Technical Specifications

Orientation Notice: When standing directly in front of and facing the bench, the dishwasher inlet connection and double sink bowls are positioned on your LEFT side.

Delivery & Freight Notice: Commercial heavy equipment requires dedicated freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Assembly & Installation Guidelines

1. Unpacking & Component Inspection: Unpack the flat-packed bench carton on a soft, protective surface. Verify all components, including the 2400mm SUS304 double sink benchtop, 6 x 42mm stainless steel legs, adjustable disc feet, tool kit, and instruction manual are present.

2. Leg Insertion & Tightening: Invert the benchtop onto a protective floor mat. Insert the 6 x stainless steel legs into the pre-welded under-bench sockets. Secure each leg tightly using the provided fixing hardware and tools.

3. Upright Positioning & Levelling: Carefully flip the 2400mm bench upright and position it adjacent to your pass-through dishwasher. Rotate the 6 adjustable polished stainless steel disc feet to ensure the bench is completely level before connecting plumbing waste lines and sealing the 180mm splashback against the wall.

Frequently Asked Questions

1. What does "Left Inlet" mean for the Modular Systems DSBD7-2400L/A bench?

"Left Inlet" means that when standing directly in front of and facing the bench, the dishwasher inlet connection and double sink assembly are located on your left-hand side.

2. What are the dimensions of the sink bowls?

The bench features two fully welded and polished stainless steel sink bowls, each measuring 450mm Wide x 450mm Deep x 300mm Deep, with standard 90mm diameter drain holes.

3. What is the maximum load weight capacity for this 2400mm bench?

The Modular Systems DSBD7-2400L/A 2400mm wide bench has a rated static load capacity of 480kg, supported by its 6-leg design, 1.2mm SUS304 stainless steel build, internal 15mm XPS board lining, and multiple 'U' channel reinforcements.

4. Can castors be fitted to this double sink dishwasher bench?

Yes. Optional heavy-duty lockable castor kits are available separately to convert the stationary leg setup into a mobile workstation for easier floor cleaning.

5. Does the bench arrive fully assembled?

No. To minimise shipping costs and prevent transport damage across Australia, the bench is supplied flat-packed. It is designed for fast, straightforward assembly and includes all necessary tools and an instruction manual.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
