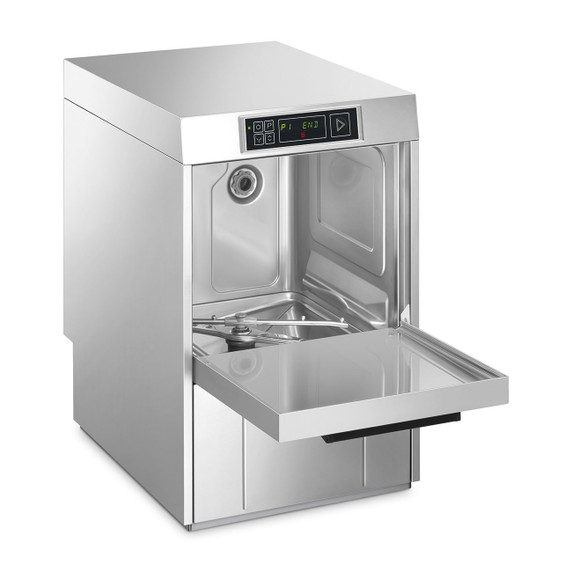

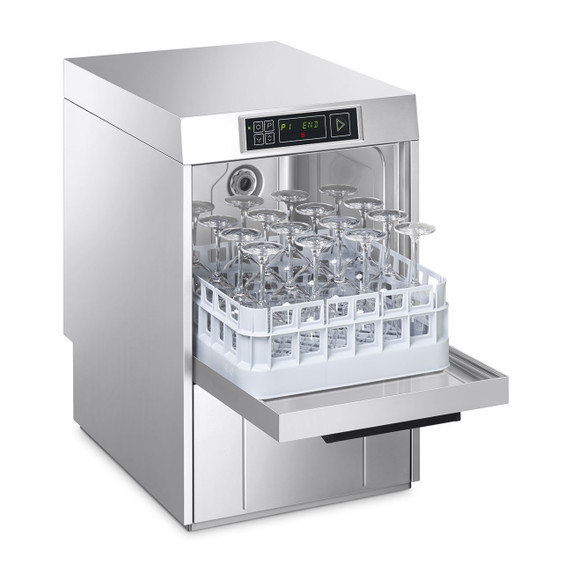

Designed to fit seamlessly under any counter, it delivers clean, sparkling glasses with every wash.
The EASYLINE range is designed to meet all washing needs with maximum flexibility. It includes various configurations: the raised version for optimal ergonomics, the double-basket model to maximize productivity, and the tray washer, ideal for businesses such as pizzerias, bakeries, and bistros.
The EASYLINE range has been designed to offer the perfect combination of versatility and impeccable washing performance. Each model is equipped with 6 automatic programmes that cover all washing needs, from delicate and durable glasses to cups, plates, trays, and platters. Additionally, a customisable programme is available, designed to meet the most complex washing requirements.
The AISI 304 stainless steel tank ensures resistance to oxidation, corrosion, and wear, offering durability for intensive use. The design, with moulded tub bottoms and smooth basket guides, optimizes washing flow for perfect hygiene and cleaning performance.

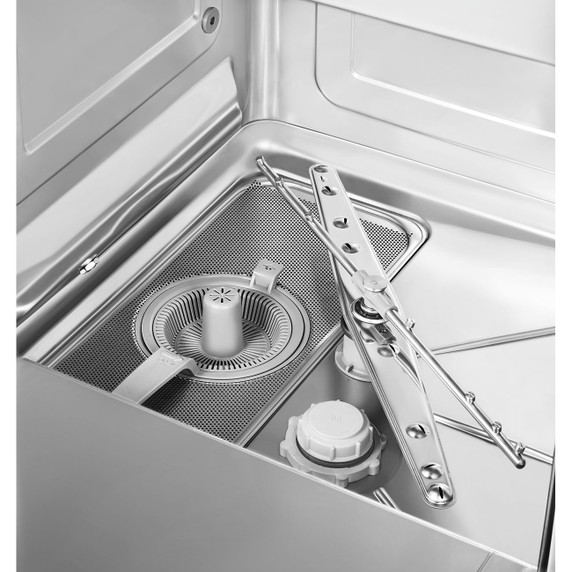

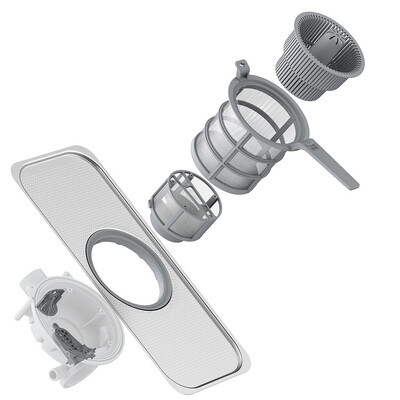

The advanced 5-stage filtration system removes impurities, ensuring flawless washes and preserving dish quality. With a 45% larger filtration surface, it prevents the buildup of foreign particles, protecting pumps and extending the system's lifespan. The practical ergonomic handle makes removal and cleaning quick and easy.
The stainless steel spray arms ensure exceptional durability and high resistance to wear. The dual-system design features one spray arm dedicated to washing and another to rinsing, guaranteeing optimal performance at every stage of the cycle.
Thanks to this configuration, the spray arms are lighter and more agile in movement, enabling immediate operation and significantly reducing washing time.
Basket dimensions: 400x400 mm Easyline Series
Ideal for coffee ships, wine bars, restaurants and pubs.
Key Features:
- Deep cleaning and spotless washes with the patented filtration system - 5-stage system
- Superior washing performance and enhanced cleaning convenience with molded tub bottoms and basket guides - Moulded tank
- Thermal and acoustic insulation guaranteed - Integral double-skin
- Consistent temperatures and pressures for uniform and effective dishwashing - HTR System
- Effective management of the washing pump to protect your glassware - Soft-start system
- Partial water replacement during the wash cycle for clean and hygienic dishes - Drain pump
- Effortless opening and closing - Balanced door
Programs:
Programs: 7 automatic programs; Self-cleaning programs; Cold water rinse program
Program table: Easyline glasswasher 400
Program options: Extra rinse; Clean water cycle
Maximum basket/hour:60
Maximum dishes/hour:480
Maximum glasses/hour:1500
Specifications:
Product dimensions WxDxH: 460 x 600 x 833 mm
Depth:600 mm
Width:460 mm
Height: 833 mm
Net weight:46.000 kg
Width packed product: 515 mm
Depth packed product: 710 mm
Height packed product: 850 mm
Equipment:
Drain pump: Yes
Peristaltic detergent dispenser: Electronic control
Chemicals level probe: Yes, with optional kit KITSONLIV
Peristaltic rinse-aid dispenser: Electronic control
Option for auto daily switch on: Yes, default OFF
Wash pump soft start system: Yes
Stand-by system: Yes
Rinse boiler Thermostop system: Yes - default
Wash tank Thermostop system: Yes
Cycle counter: Yes
Break tank: Yes
Partial renewal of water in the tank and built-in drain pump: Yes
Detergent (red) hose length: 2.2m
Rinse aid (blue) hose length: 2.2m
Technical Features:
Detergent load: 1,5 l/h
Rinse load: 0,4 l/h
Noise: Lpa 55 dBA
Wash temperature (min-max): 60 °C
Minimum water consumption per cycle: 2.3 l
Water consumption per cycle: 2.3 l
Rinse temperature (min-max): 24 °C - 83 °C
Min. water connection temperature: 8°C
Inlet pressure: Cold 15°C
Max. inlet temperature: 60°C
Max water hardness: 5°f - 3°dH
Usable load height: 315 mm
Depth with open door: 930 mm
Maximum dishes diameter: 300 mm
Maximum glasses height: 300 mm
Power Connection: 400 V 3N~ / 10 A / 5,2 kW / 50 Hz - plug is not included
Tank heating element power: 1400 W
Boiler heating element power: 2800 W
Wash pump power: 290 W
Default connection: 3100 W
Plug: (I) Australia
Warranty: 24 Months Parts & Labour
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
