Hobart ECOMAX G404 Commercial Compact Under-Bench Glasswasher (Made in Germany)

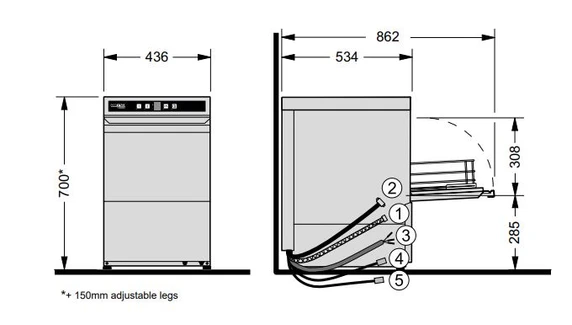

The Hobart ECOMAXG404 Commercial Compact Under-Bench Glasswasher is a fast, reliable, high-performance warewashing machine engineered and manufactured in Germany specifically for Australian start-ups, boutique bars, cafes, wineries, pubs, and restaurants. Sized at a compact 436 mm Wide x 534 mm Deep x 700 mm High (plus 150 mm adjustable legs), this space-saving under-counter glasswasher fits neatly into tight bar service areas while processing up to 60 racks per hour using a standard 432 mm x 356 mm (17" x 14") glass rack.

Featuring intuitive single-button electronic controls with a digital temperature display, the ECOMAXG404 delivers precise, hygienic cleaning across 3 selectable wash cycles (60, 120, and 180 seconds) and includes a specialized high-temperature hygiene program. Powered by an ultra-efficient heating system operating on a standard 240V / 15 Amp plug connection, it consumes a minimal 1.8 litres of fresh rinse water per rack. Outfitted with rotating top and bottom wash arms with indented non-clog nozzles, tool-free removable wash arms, a double-walled insulated cabinet, integrated chemical dosing dispensers, and a built-in cycle counter, it comes backed by a 12-Month Hobart Manufacturer Warranty.

Why Choose the Hobart ECOMAXG404 Under-Bench Glasswasher?

Selecting the Hobart ECOMAXG404 Glasswasher equips venue owners and bar managers with a premium, German-engineered warewashing platform designed for crystal-clear glassware, low running costs, quiet operation, and long-term service reliability.

Key benefits of the Hobart ECOMAXG404 include:

• German Engineering & Build Quality: Manufactured in Germany to strict precision standards, offering exceptional durability and thermal efficiency in high-turnover bar environments.

• Rapid Output (Up to 60 Racks/Hour): Fast cycle settings (60, 120, and 180 seconds) keep pace with peak service rushes, ensuring clean, sparkling glassware is always available.

• Ultra-Low Water Consumption (1.8L per Rack): Uses only 1.8 litres of fresh rinse water per rack cycle, significantly reducing venue power bills, water usage, and chemical consumption.

• Single-Button Control & Thermostop Hygiene: User-friendly single-button interface with digital temperature display and built-in Thermostop function guarantees rinse water reaches sanitizing temperatures before cycle completion.

• Tool-Free Removable Wash Arms & Non-Clog Nozzles: Rotating upper and lower wash arms distribute water evenly and feature indented anti-clog nozzles; arms snap off without tools for effortless end-of-shift cleaning.

• Quiet Double-Walled Cabinet & Door: Double-walled insulated construction reduces ambient noise levels in front-of-house bar areas while retaining heat inside the wash chamber.

• Integrated Chemical Dispensers & Refill Signals: Built-in automatic detergent and rinse aid dosing pumps include connection points for optional chemical suction lances with low-level refill alerts.

• Tool-Friendly USB Service Access: Inbuilt USB interface allows service technicians to diagnose diagnostics, adjust operating parameters, and read integrated cycle counts quickly.

• 12-Month Hobart Warranty: Backed standard by a 12-Month Hobart Commercial Warranty.

Technical Specifications

Site Installation & Water Supply Requirements

To guarantee machine longevity and validate manufacturer warranty coverage, satisfy the following site parameters prior to commissioning:

1. Trade Installation: Installation must be conducted by a licensed plumber and electrician observing all local Australian plumbing (AS/NZS 3500) and electrical (AS/NZS 3000) standards.

2. Water Supply Pressure & Temperature: Requires a hot water supply connection with incoming water pressure between 3.0 bar and 6.0 bar (or 0.8 to 6.0 bar if an optional rinse pressure pump is fitted).

3. Water Hardness Protection: For complete machine protection against scale build-up, incoming water hardness must not exceed 3°dH. If site water hardness exceeds 3°dH, installation of a Hobart HYDROLINE water softener or treatment system is strongly recommended.

4. Reverse Osmosis (RO) Compatibility Notice: This machine is not suitable for direct connection to Reverse Osmosis (RO) water purification systems.

5. Back-Flow Safety: Machines fitted with integrated water softeners require a back-flow safety device fitted at the site connection point in accordance with DVGW-DIN 1988 standards.

Operating & Cleaning Guidelines

1. Setup & Pre-Heating: Turn on incoming water supply and main power. Press the single-button electronic controller. The unit will fill and pre-heat the wash tank automatically, displaying real-time digital temperatures.

2. Loading & Washing: Scrape excess garnishes or liquids from glasses into a waste chute and place items upright into the $432 \times 356\text{ mm}$ glass rack. Slide the rack onto the deep-drawn tracks, select your cycle duration (60s, 120s, or 180s), close the door, and press start.

3. Daily Cleaning & Maintenance: At the end of trade, run the automated drain/hygiene cycle (if fitted with drain pump). Switch off power, remove scrap strainers, and rinse under fresh water. Unclip the top and bottom wash arms without tools, clear any trapped debris from nozzles, wipe down the internal chamber, and leave the door slightly ajar overnight to dry.

Frequently Asked Questions

1. Where is the Hobart ECOMAXG404 manufactured?

The Hobart ECOMAXG404 is designed and manufactured in Germany, ensuring industry-leading engineering precision, thermal performance, and build durability.

2. What rack size does the Hobart ECOMAXG404 accept?

This compact glasswasher uses standard 432 mm x 356 mm (17" x 14") glass racks, providing a generous 308 mm clear internal door opening height for tall beer glasses and wine stems.

3. What electrical supply is required for installation?

The unit operates on standard single-phase 240V / 50Hz electricity and comes pre-fitted with a 15 Amp plug and lead.

4. Why is water treatment recommended for this machine?

To protect internal heating elements and wash jets from limescale accumulation, Hobart specifies that incoming water hardness should not exceed 3°dH. Using a Hobart HYDROLINE water softener in hard water areas ensures optimal rinse results and protects your investment.

5. What warranty covers the Hobart ECOMAXG404 glasswasher?

The Hobart ECOMAXG404 comes backed standard by a 12-Month Hobart Commercial Manufacturer Warranty.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
