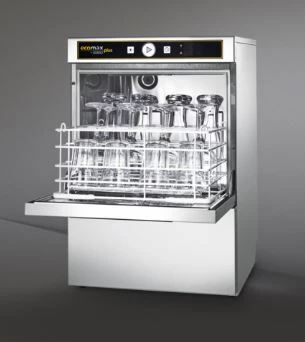

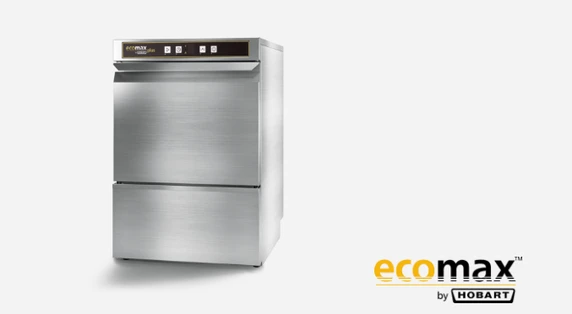

Hobart Ecomax Plus G415 Commercial Compact Glasswasher (Made in Germany)

The Hobart Ecomax Plus G415 Commercial Compact Under-Bench Glasswasher is a premium, high-performance warewashing machine engineered in Germany specifically for Australian hotels, bars, clubs, cafes, and restaurants washing more than 100 glasses per day. Sized at a compact 460 mm Wide x 590 mm Deep x 705 mm High, this space-saving under-counter glasswasher fits neatly into tight bar setups while accommodating standard 400 mm x 400 mm glass racks with an above-average 315 mm clear loading height for tall beer glasses and wine stems.

Featuring single-button electronic controls with a digital temperature readout, the G415-D delivers thorough, hygienic cleaning across 3 selectable wash cycles (60, 120, and 180 seconds) plus a specialized cutlery program and high-temperature hygiene mode. Upgraded to Hobart's "Plus" specification, it features a seamless deep-drawn 8-litre wash tank, double-walled housing with heat-insulated door damping control, a multi-stage tank strainer system, and comes fully equipped with built-in detergent and rinse aid dispensers, a rinse pressure pump, and a drain pump. Operating on a standard single-phase 230V / 15 Amp plug connection (3.2 kW total load) with 400V 3-phase adaptability, it consumes a minimal 1.8 litres of water per rack and is backed by a 12-Month Hobart Warranty.

Why Choose the Hobart Ecomax Plus G415 Glasswasher?

Selecting the Hobart Ecomax Plus G415 Compact Glasswasher equips bar managers, hospitality operators, and head bartenders with an upgraded, German-engineered glasswashing platform designed for sparkling glassware, low running costs, ultra-quiet operation, and rapid service turns.

Key benefits of the Hobart Ecomax Plus G415-D include:

• Upgraded "Plus" Features: Features a seamless deep-drawn hygienic wash tank, double-walled insulated cabinet, soft-closing door damping control, and a comprehensive triple-filter system (tank strainer, coarse filter, and pump suction casing).

• Fully Outfitted Internal Pumps: Comes standard with built-in automatic detergent and rinse aid dosing dispensers, an integrated rinse pressure pump for consistent spray pressure, and an automated drain pump for flexible plumbing setups.

• German Build Quality & Efficiency: Designed and built in Germany to rigorous commercial standards, using only 1.8 litres of fresh rinse water per rack cycle to keep venue water and chemical costs low.

• Generous 315mm Loading Height: Above-average 315 mm internal door clearance allows staff to load extra-tall craft beer glasses, pint glasses, pilsners, and oversized wine globes effortlessly.

• Automatic Thermostop Temperature Control: Electronic cycle-time control guarantees hygiene-compliant sanitizing rinse temperatures, even when connected to cold-water supply lines or during continuous peak service.

• Tool-Free Removable Wash Arms & Non-Clog Nozzles: Rotating upper and lower wash arms ensure even water distribution with indented anti-clog nozzles. Arms clip off without tools for effortless end-of-shift maintenance.

• Quiet Insulated Operation & Rear Panelling: Double-walled insulated construction retains internal heat while dampening operation noise in front-of-house bar areas.

• 12-Month Hobart Warranty: Backed standard by a 12-Month Hobart Commercial Manufacturer Warranty.

Technical Specifications

Site Installation & Water Supply Requirements

To guarantee machine longevity, sparkling wash results, and validate manufacturer warranty coverage, satisfy the following site parameters prior to commissioning:

1. Trade Installation: Installation must be performed by a licensed plumber and electrician in accordance with local Australian plumbing (AS/NZS 3500) and electrical (AS/NZS 3000) standards.

2. Water Supply Line Pressure: Required incoming line pressure is 0.5 to 10.0 bar (or 0.8 to 10.0 bar if an optional integrated water softener is fitted).

3. Water Hardness Protection: For complete internal component protection against scale build-up, incoming water hardness must not exceed 3°dH. If site water hardness exceeds 3°dH, installation of a Hobart HYDROLINE water softener or treatment system is strongly recommended.

4. Supplied Accessories: Pre-fitted with flexible water inlet supply hose, drain hose, power lead, and a 4-row sloped glass rack (11-371450-084).

Operating & Cleaning Guidelines

1. Setup & Pre-Heating: Turn on incoming water supply and main power. Press the single-button electronic control switch. The unit fills automatically and pre-heats the 8L deep-drawn wash tank, displaying real-time digital temperatures.

2. Loading & Washing: Scrape residual liquids and ice from glasses into a waste chute and place items upright into the $400 \times 400\text{ mm}$ sloped glass rack. Slide the rack into the 315 mm chamber, select your cycle time (60s, 120s, or 180s), close the damped door, and press start.

3. Daily Cleaning & Maintenance: At the end of trade, initiate the automated self-cleaning drain cycle via the built-in drain pump. Switch off power, remove the multi-stage tank strainers and rinse under running water. Unclip top and bottom wash arms without tools, clear any trapped debris from the indented nozzles, wipe down the interior, and leave the front door slightly ajar overnight.

Frequently Asked Questions

1. What is the difference between the Hobart Ecomax and Ecomax Plus G415?

The Ecomax Plus G415 includes upgraded features, such as a deep-drawn seamless wash tank, double-walled insulated cabinet with door damping control, an above-average 315 mm clear loading height, and comes fully equipped with an integrated drain pump, rinse pressure pump, and chemical dispensers as standard.

2. What rack size and glass clearance does the G415 accept?

The G415 uses 400 mm x 400 mm glass racks and features a 315 mm clear internal door opening, making it ideal for washing tall craft beer glasses and high-stemmed wine glasses.

3. What electrical supply does this glasswasher require?

Standard Australian configuration operates on 230V / 50Hz single-phase power requiring a 15 Amp outlet (3.2 kW total connected load). It can also be converted to 400V 3-phase power for rapid commercial recovery.

4. Why is a water treatment system recommended for this machine?

To prevent mineral scale build-up on heating elements and wash jets, Hobart recommends that incoming water hardness does not exceed 3°dH. Installing a Hobart HYDROLINE water softener in hard water areas protects your investment and ensures spot-free glass drying.

5. What warranty covers the Hobart Ecomax Plus G415?

The Hobart Ecomax Plus G415 comes backed standard by a 12-Month Hobart Commercial Manufacturer Warranty.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
