FED-X XURC600G1V Single Glass Door Upright Fridge 618L | 10A Display

[GLOBAL_MSG]

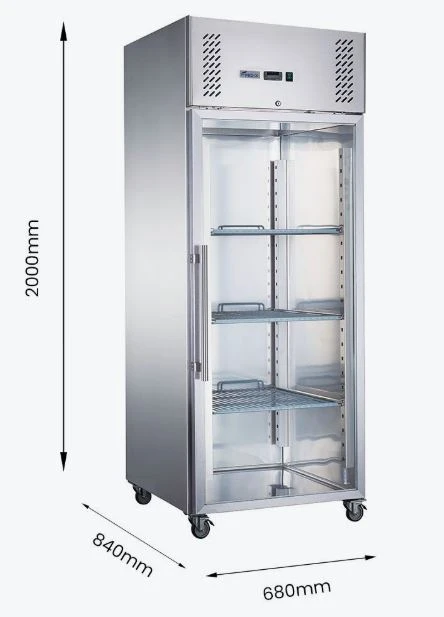

The FED-X XURC600G1V Single Full Glass Door Upright Commercial Display Refrigerator (618L Capacity) is a high-visibility, heavy-duty vertical chiller engineered specifically for Australian commercial cafes, restaurants, bakeries, supermarkets, butcheries, and deli prep stations. Measuring 680 mm Wide x 840 mm Deep x 2000 mm High (with an 810 mm cabinet depth plus 30 mm handle/rear spacer) and weighing 132 kg, this slimline vertical display fridge provides 618 litres of gross capacity (388 litres net usable volume) within a compact 680mm footprint. Driven by premium European components—including a high-efficiency Cubigel compressor, heavy-duty fans, and an intuitive Dixell digital microprocessor controller running on eco-friendly R290 natural refrigerant—the XURC600G1V reliably maintains food-safe holding temperatures between +2°C and +8°C in tropicalised ambient kitchen environments up to +38°C (60% relative humidity). Featuring a self-closing lockable double-glazed glass door, internal vertical LED illumination, full food-grade stainless steel construction with coved internal corners, and shelves designed to accommodate 1/1 Gastronorm pans, this commercial display unit operates on an energy-efficient 3.208 kWh/24h consumption profile via a standard Australian 10A plug-and-play connection.

Why Australian commercial hospitality and retail venues choose the FED-X XURC600G1V:

• High-capacity 618L volume in a slimline 680mm width — maximizes vertical merchandising and prepped storage capacity without occupying valuable kitchen benchline or retail floorspace.

• Gastronorm pan compatibility (fits 1/1 GN pans) — spacious internal shelving depth and width allow kitchen staff to slide standard 1/1 Gastronorm pans directly onto shelf tiers, streamlining workflow between prep benches and cold storage.

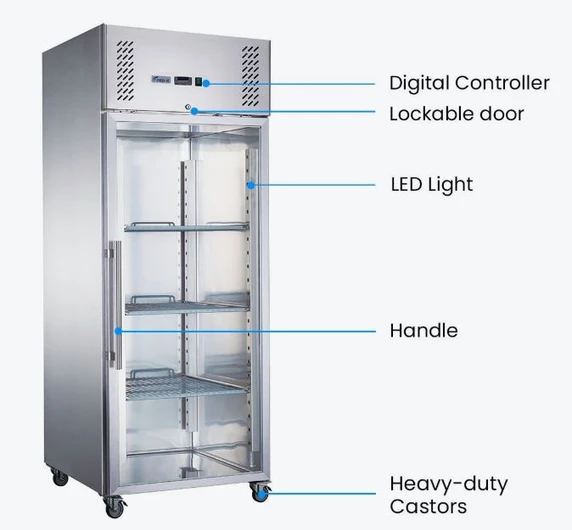

• High-clarity glass display door with LED illumination — full-height double-glazed glass door paired with energy-efficient internal LED lighting presents stock clearly, allowing quick stock counts and grab-and-go customer selections without opening the door and losing chilled air.

• Tropicalised +38°C ambient rating — heavy-duty European cooling system engineered to pull down and maintain dependable holding temperatures (+2°C to +8°C) in hot Australian kitchen and shopfront environments up to +38°C and 60% relative humidity.

• Dynamic fan-forced cooling & automated defrost — high-velocity convection fans distribute chilled air uniformly across all tiers to eliminate hot spots, while an automated off-cycle defrost system prevents frost build-up without manual downtime.

• Premium European refrigeration architecture — powered by an efficient Cubigel compressor, industrial-grade evaporator and condenser fans, and an exterior Dixell digital controller for accurate temperature regulation in compliance with Australian Food Safety Standard 3.2.2.

• Full food-grade stainless steel build — heavy-gauge commercial stainless steel inside and out resists corrosion, scratches, and rigorous kitchen demands while maintaining a clean, professional finish.

• Hygienic coved internal corners — seamless curved internal base corners eliminate 90-degree dirt traps and grime build-up, ensuring fast end-of-shift washdowns.

• Reinforced 40 kg shelf payload — includes three levels of height-adjustable, PVC-coated wire shelves plus a usable stainless steel cabinet base, each shelf tier engineered to support an evenly distributed load of up to 40 kg.

• Eco-conscious R290 refrigerant (195W draw) — natural R290 hydrocarbon refrigerant combined with high-density CFC-free insulation delivers sustainable cooling while drawing an economical 195W to keep energy costs down (3.208 kWh/24h).

• Self-closing lockable glass door — heavy-duty magnetic door gaskets and a self-closing hinge mechanism seal cold air inside during peak service, while an integrated cylinder key lock safeguards stock after trading hours.

• Pre-fitted mobility castors with front brakes — heavy-duty universal wheels enable smooth movement during floor sanitisation, routine maintenance, and shopfloor layout adjustments.

• Standard 10A plug-and-play installation — runs on standard Australian single-phase 240V mains power with a factory-fitted 10 Amp plug, eliminating the need for expensive 15A electrical circuit upgrades.

• Extended 4-year warranty protection — backed by an Australian 2-Year parts and labour commercial warranty, extendable to an additional 2-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

Operating, Care & Preventative Maintenance

To maintain optimum cooling performance, crystal-clear glass visibility, and long compressor life:

1. Pre-Chilled Inventory Loading: The FED-X XURC600G1V is engineered to maintain already-chilled beverages, dairy, prepped ingredients, and fresh produce between +2°C and +8°C. While dynamic fan-forced cooling recovers rapidly after customer or staff openings, always load the cabinet with pre-chilled stock to prevent internal temperature spikes and reduce compressor runtime.

2. Internal Airflow Circulation: Place stock evenly across the adjustable wire shelves and ensure items do not overhang the shelf edges or sit flush against the rear ducting. Maintaining an unobstructed vertical corridor allows fan-forced air to cycle freely across every tier, keeping temperatures uniform throughout the cabinet.

3. Condenser Coil Cleaning (Every 2 to 4 Weeks): In busy commercial kitchen and bakery environments, airborne grease, flour, and lint settle onto the condenser fins. Regularly vacuum and brush down the condenser coil using a soft brush attachment to prevent compressor overheating and preserve energy efficiency.

4. Glass & Gasket Care: Clean the double-glazed glass panel with a soft microfibre cloth and a non-abrasive commercial glass cleaner. Wipe down the magnetic door gasket weekly with warm water and a neutral detergent to remove sticky beverage or food residue, ensuring a complete airtight seal that stops cold air loss.

5. Interior Cabinet Sanitisation: Take advantage of the curved, coved stainless steel base corners by wiping down the internal walls and floor with warm water and an approved commercial food-safe sanitiser. Avoid bleach, chlorine-based chemicals, and steel wool pads that can compromise the passive protective layer of the stainless steel.

Electrical & Ventilation Installation Guidelines

The FED-X XURC600G1V is designed for straightforward plug-and-play installation on standard commercial circuits:

1. Electrical Supply: Operates on standard Australian single-phase 240V mains power with an energy-efficient 195W power draw. Comes factory-fitted with a standard Australian 10 Amp plug and lead, allowing immediate connection to any dedicated 10A commercial wall socket without requiring a 15A electrical modification.

2. Ventilation Clearances: Self-contained commercial refrigeration units exhaust heat through the mechanical compartment. Maintain a minimum clearance of at least 100 mm at the rear and 50 mm on either side to allow warm exhaust air to dissipate freely from the condensing unit.

3. Store Positioning: Avoid positioning the fridge in direct sunlight, in line with hot glass storefronts, or directly adjacent to cooking equipment such as deep fryers, chargrills, or deck ovens. Operating in ambient environments above its rated +38°C will decrease cooling efficiency and raise daily energy use.

4. Levelling & Wheel Locking: Once wheeled into place on a level, structurally sound floor, depress the front castor wheel foot brakes to lock the 132 kg cabinet securely in position.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia to commercial business addresses with level ground access or loading docks. Due to the unit's substantial 132 kg net weight, 2000 mm height, and full glass door construction requiring strict upright transit, deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to ordering to verify site access, delivery doorway clearances (minimum 720 mm clear opening required), and receiving logistics.

Frequently Asked Questions

What are the operational advantages of a glass door upright fridge in a commercial kitchen?

A glass door upright fridge combines commercial-grade cold holding with visual stock control. Chefs and kitchen staff can identify prepped ingredients, sauces, and garnishes before opening the door, significantly reducing open-door duration and preventing unnecessary cold air loss. In retail settings such as cafes and delis, the clear glass door and LED illumination turn prep storage into an eye-catching merchandising display.

Can each shelf level hold Gastronorm pans?

Yes. With an internal cavity width of 564 mm and depth of 682 mm, each shelf comfortably accommodates standard Gastronorm pans (such as 1/1 GN pans measuring 530 mm x 325 mm), allowing kitchens to transfer mise en place directly from preparation stations into cold storage without repacking.

Does this glass door fridge require an external plumbing drain?

No. The XURC600G1V is equipped with an automated off-cycle defrost system paired with an integrated condensate evaporation pan. Meltwater runoff from the evaporator coil drains directly into a heated catchment tray located near the compressor, where system heat naturally vaporises the moisture. No floor wastes, tundishes, or external drain plumbing are needed.

Is the glass door lockable for after-hours stock security?

Yes. The double-glazed glass door includes an integrated cylinder key lock located at the top of the door frame. Keys are supplied as standard, allowing venue managers to secure high-value stock, craft beverages, or prepared goods during non-trading hours.

How do I activate the 4-year warranty coverage?

The FED-X XURC600G1V includes a standard 2-Year commercial parts and labour warranty. Kitchen and retail operators who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 2-Year parts-only warranty extension, providing up to 4 years of comprehensive commercial protection across Australia.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
