FED-X XURF1200G2V 2 Glass Door Upright Display Freezer 1236L | 10A

[GLOBAL_MSG]

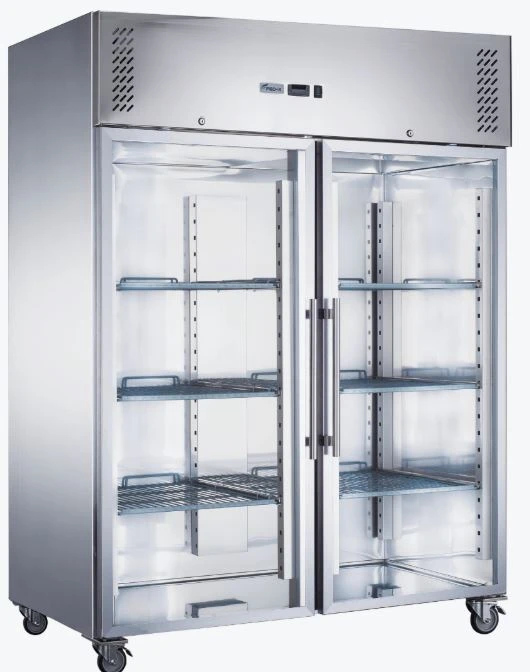

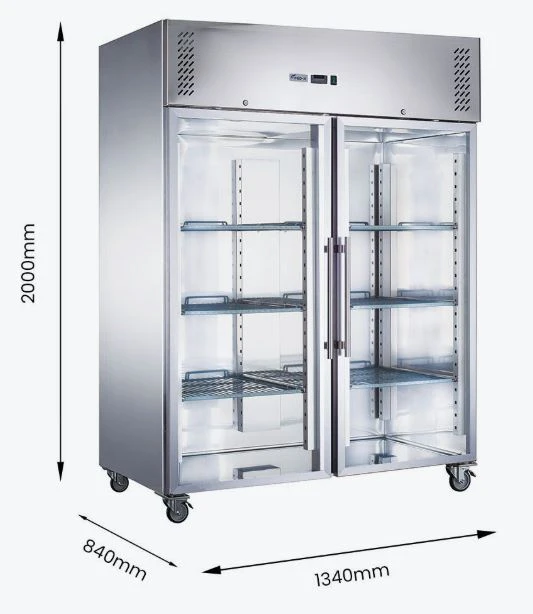

The FED-X XURF1200G2V Two Full Glass Door Upright Commercial Display Freezer (1236L Capacity) is an extra-large-format vertical merchandising and sub-zero storage showcase engineered specifically for Australian supermarkets, bakeries, ice cream parlours, delis, commercial catering kitchens, and high-volume food service venues. Measuring 1340 mm Wide x 840 mm Deep x 2000 mm High and weighing 167 kg, this double glass door commercial freezer delivers an expansive 1236-litre gross capacity (791-litre net usable volume) designed to hold and display frozen meats, seafood, gelato tubs, pastry sheets, and bulk frozen goods with uncompromised clarity. Powered by high-specification European refrigeration engineering—including a high-torque Cubigel compressor and Dixell digital microprocessor controller running on eco-friendly R290 natural refrigerant—the XURF1200G2V maintains stable freezing temperatures between -15°C and -18°C in ambient room conditions up to +38°C (60% relative humidity). Complete with heated glass door frames to prevent misting, GN-compatible shelving accommodating two 1/1 Gastronorm pans side-by-side per tier, coved internal corners, and full stainless steel construction, this heavy-duty display freezer connects directly via a standard Australian single-phase 10A plug-and-play circuit.

Why Australian commercial hospitality and retail venues choose the FED-X XURF1200G2V:

• Condensation-free heated glass doors — heated glass door frames eliminate moisture accumulation and surface fogging in humid commercial environments, guaranteeing crystal-clear inventory visibility for kitchen stock monitoring and customer self-service.

• Massive 1236L capacity with 2 x 1/1 GN pan compatibility — wide internal cabinet footprint allows kitchen teams to slide two 1/1 Gastronorm pans side-by-side onto each shelf tier, streamlining workflow between prep stations and frozen holding.

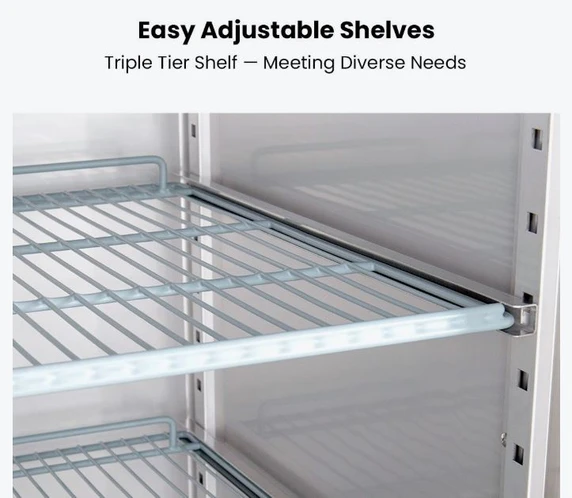

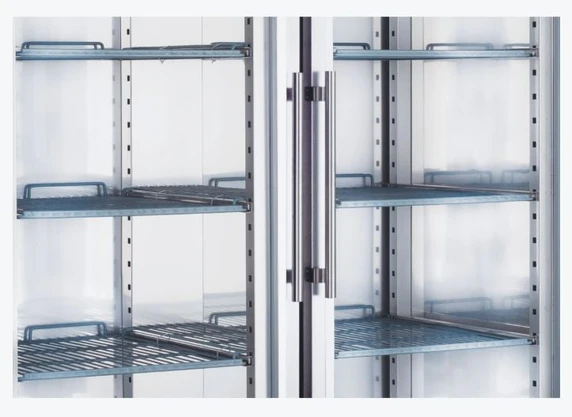

• Heavy-load 40 kg shelf capacity — includes three levels of height-adjustable, PVC-coated wire shelves plus a reinforced stainless steel base deck, with each shelf tier engineered to support an evenly distributed payload of up to 40 kg.

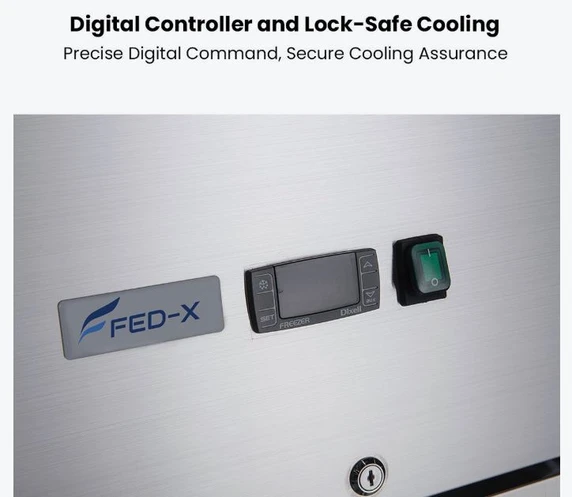

• Premium European refrigeration architecture — equipped with a commercial Cubigel compressor, heavy-duty evaporator and condenser fans, and an intuitive Dixell digital temperature controller to ensure consistent sub-zero performance.

• Dynamic fan-forced cooling & automated defrost — high-velocity internal convection fans distribute sub-zero air uniformly across every tier to prevent hot spots, while an automated defrost cycle eliminates evaporator frost buildup with zero manual downtime.

• Complete food-grade stainless steel build — heavy-gauge commercial stainless steel inside and out withstands rigorous daily wear, grease, and impact while ensuring rapid hygiene compliance.

• Seamless coved interior base corners — curved internal corners eliminate 90-degree dirt traps, preventing grime and liquid buildup and streamlining end-of-shift wash-downs.

• Vibrant interior vertical LED illumination — energy-saving internal LED lighting strips illuminate all shelf levels brightly without introducing thermal heat into the cabinet, accentuating product branding to stimulate grab-and-go purchases.

• Eco-conscious R290 natural refrigerant — zero ozone depletion potential (ODP) and negligible global warming potential (GWP) combined with high-density CFC-free cyclopentane insulation deliver sustainable, energy-efficient freezing (700W total draw).

• Self-closing lockable glass doors — self-closing hinges maintain tight thermal retention during busy service rushes, while integrated cylinder key locks safeguard high-value stock after trading hours.

• Pre-fitted mobility castors with front brakes — heavy-duty castor wheels enable smooth movement during floor sanitisation, routine maintenance, and shopfloor layout adjustments.

• Standard 10A plug-and-play installation — runs on standard Australian single-phase 240V mains power with a factory-fitted 10 Amp plug, eliminating the need for expensive 15A electrical wiring upgrades.

• Extended 4-year warranty protection — backed by an Australian 2-Year parts and labour commercial warranty, extendable to an additional 2-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

Operating, Care & Preventative Maintenance

To maintain continuous sub-zero freezing, condensation-free glass clarity, and long compressor life:

1. Pre-Frozen Stock Merchandising: The FED-X XURF1200G2V is engineered to store and display pre-frozen foods, artisan gelato, pastries, and ingredients between -15°C and -18°C. Do not load large quantities of warm or ambient food into the cabinet, as this introduces excessive moisture, causes temporary cabinet temperature spikes, and increases compressor runtimes.

2. Airflow Clearance: Ensure frozen stock, boxes, and Gastronorm pans do not overhang the shelf perimeters or sit flush against the rear airflow ducting. Leaving an unobstructed air corridor allows the fan-forced system to distribute chilled air evenly across all tiers, preventing localized temperature variance.

3. Condenser Coil Cleaning (Every 2 to 4 Weeks): In busy bakeries and retail store environments, flour, packaging dust, and airborne grease accumulate quickly across the lower condenser fins. Regularly vacuum and brush the condenser coil using a soft brush attachment to prevent compressor overheating and preserve energy efficiency.

4. Heated Glass & Gasket Care: Clean the double-glazed glass panels and heated frames with a soft microfibre cloth and a non-abrasive commercial glass cleaner. Wipe down the magnetic door gaskets weekly with warm water and a neutral detergent to remove sticky residue, ensuring an airtight seal that prevents external air leaks.

5. Interior Cabinet Sanitisation: Take advantage of the curved, coved stainless steel corners by wiping down the internal walls and floor with warm water and an approved commercial food-safe sanitiser. Avoid bleach, chlorine-based chemicals, and steel wool pads that can etch the stainless steel surface.

Electrical & Ventilation Installation Guidelines

The FED-X XURF1200G2V provides straightforward plug-and-play installation on standard commercial retail circuits:

1. Electrical Supply: Operates on standard Australian single-phase 240V mains power with a 700W power draw. Supplied complete with a factory-fitted 10 Amp plug and lead, allowing immediate connection to any standard 10A commercial wall outlet without requiring a 15A electrical modification.

2. Ventilation Clearances: Self-contained commercial freezers extract heat through their mechanical housing. Maintain a minimum clearance of at least 100 mm at the rear and 50 mm on either side to allow warm exhaust air to dissipate freely from the condensing unit.

3. Store Positioning: Avoid positioning the freezer in direct sunlight, in line with hot glass storefronts, or directly adjacent to cooking equipment such as deep fryers, deck ovens, or rotisseries. Operating in ambient environments above its rated +38°C will decrease cooling efficiency and raise daily energy use.

4. Levelling & Wheel Locking: Once wheeled into place on a level, structurally sound floor, depress the front castor wheel foot brakes to lock the 167 kg cabinet securely in position.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia to commercial business addresses with level ground access or loading docks. Due to the unit's substantial 167 kg net weight, 2000 mm height, and full double-glass-door construction requiring strict upright transit, deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to ordering to verify site access, delivery doorway clearances (minimum 850 mm clear opening required), and receiving logistics.

Frequently Asked Questions

What is the operational benefit of heated glass doors on a commercial freezer?

In high-humidity Australian commercial kitchens and retail shops, standard glass doors quickly fog up when cold internal air meets warm, moist external air. The FED-X XURF1200G2V features low-wattage heating elements integrated into the glass and door frames. This gentle warmth prevents moisture condensation, ensuring clear product visibility without frosting or dripping water onto the floor.

Can each shelf truly hold two full-size 1/1 Gastronorm pans?

Yes. The internal cavity of the XURF1200G2V measures 1224 mm wide, providing ample horizontal span across each wire shelf to place two standard 1/1 Gastronorm pans (530 mm x 325 mm each) side-by-side. This allows busy kitchens to store bulk-prepped ingredients directly on GN pans without repacking.

Does this glass door freezer require an external floor drain or plumbing?

No. The XURF1200G2V is equipped with an automated defrost cycle paired with a built-in condensate evaporation system. Meltwater runoff from the evaporator coil drains directly into an evaporation pan situated near the compressor, where system heat naturally vaporises the moisture. No external drainage pipes, tundishes, or floor waste connections are needed.

Are the glass doors lockable for after-hours stock security?

Yes. Both double-glazed doors feature integrated cylinder key locks located at the top of the door frames. Keys are supplied as standard, allowing venue managers to secure high-value meats, artisan desserts, or retail inventory during non-trading hours.

How do I activate the 4-year warranty coverage?

The FED-X XURF1200G2V includes a standard 2-Year commercial parts and labour warranty. Kitchen and retail operators who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 2-Year parts-only warranty extension, providing up to 4 years of comprehensive commercial protection across Australia.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
