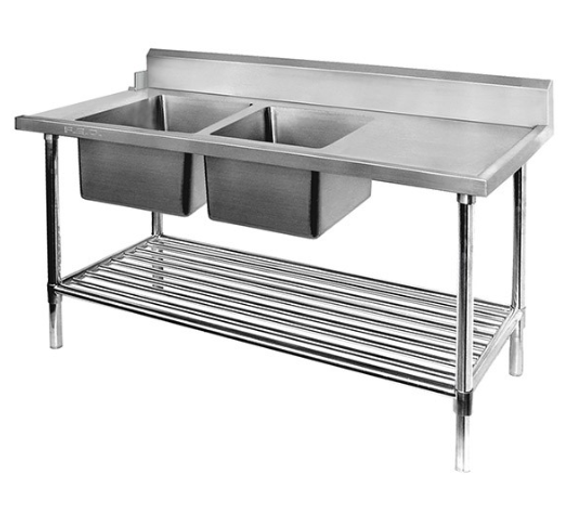

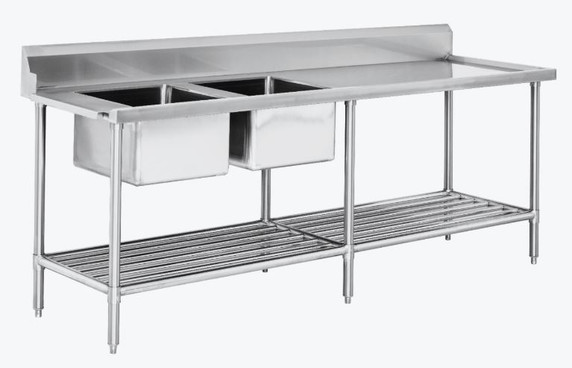

About DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench
All Stainless Steel Left Inlet Double Sink Dishwasher Inlet Bench -DSBD7-2400L/A
2400mm wide
• 700 mm deep × 900 mm high
• Bowl size 450mmW×450D×300H; 90 mm Ø drain hole
• Specially designed for quick & simple assembly
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• 4 legs per bench
- 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S
• 15 mm wet edge
• Left or right bowl positioning
• Bowls are fully welded, polished inside & out
• 90 mm Ø drain hole
Splashbacks
• Stainless Steel backed • 180 mm high; 30 mm thick
• Bevelled • Fully enclosed
Legs
• 1.2 mm S/S; 42 mm Ø
• Fully adjustable S/S polished disc feet that match the legs perfectly
• Castor kits available (lockable)
Benchtops
• 1.2 mm material; SUS304 (18/8)
• Lined with XPS board, 15 mm thick & S/S panel
• special S/S ‘U’ channel reinforcements under - as the bench size increases so does the number of channels
Note
- LEFT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the left side.
- RIGHT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the right side.
Warranty: 2 Years Parts only
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
