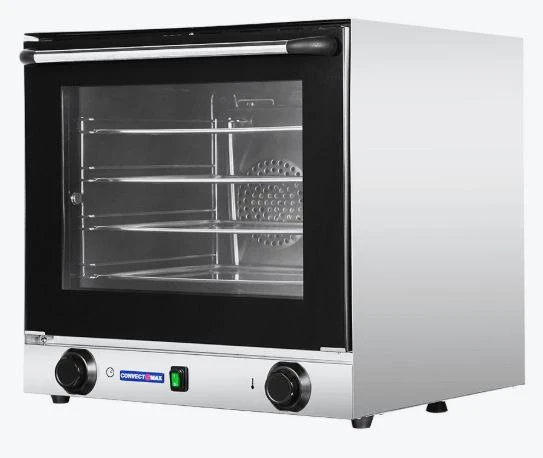

The ConvectMax YXD-1DI Commercial Electric Convection Oven is a compact, high-efficiency benchtop baking and heating unit engineered for Australian cafes, bakeries, kiosks, takeaway venues, food trucks, and commercial prep kitchens. Ideal for baking pastries, cookies, and rolls, as well as reheating and roasting, this heavy-duty oven delivers consistent heat distribution across four levels in a space-saving footprint.
Featuring dual reversing fans and an easy-clean enamel interior, the YXD-1DI ensures even baking without requiring manual tray rotation. Built with a durable stainless steel chassis, a double-layer glass door with safety auto-stop, an intuitive 120-minute timer, and a 50°C to 300°C temperature range, this 2.4kW unit operates on a standard Australian 10 Amp plug for effortless installation anywhere in your kitchen.
Why Choose the ConvectMax YXD-1DI Convection Oven?
Choosing the ConvectMax YXD-1DI Electric Convection Oven equips commercial kitchens with a versatile, user-friendly, and energy-efficient countertop baking station built for daily hospitality trade.
Key reasons commercial operators specify the ConvectMax YXD-1DI include:
-
Dual Reversing Fan System: Twin high-output fans reverse rotation during operation to drive uniform heat and airflow across all four baking levels, eliminating cold spots.
-
4-Tray Capacity (437 x 314mm): Supplied complete with four aluminium baking trays set at an optimal 80mm tray spacing for maximum batch efficiency.
-
Standard Australian 10A Plug Setup: Drawing 2.4kW on single-phase 240V power, it plugs directly into standard 10 Amp wall outlets without requiring expensive specialized electrical upgrades.
-
Easy-Clean Enamel Interior Chamber: Smooth, durable enamel cavity with rounded corners wipes down effortlessly at the end of service.
-
Safety Auto-Stop Door Feature: Opening the forward-and-down drop door automatically pauses fan and heating operation to protect staff from hot air blasts.
-
Double-Layer Toughened Glass Door: Insulated glass design retains heat inside the cavity for improved energy efficiency while keeping exterior surfaces safe to touch.
-
Precise Twin-Knob Controls: Simple, robust analog knobs allow staff to easily select cooking temperatures from 50°C to 300°C and set countdown timers up to 120 minutes with an audible bell.
-
Compact Benchtop Footprint: Measuring just 595mm wide and weighing 38kg, it fits comfortably onto standard commercial prep benches and mobile food trucks.
Technical Specifications
| Feature |
Specification |
| Brand / Model |
ConvectMax YXD-1DI |
| Product Type |
Commercial Benchtop Electric Convection Oven |
| Tray Configuration |
4 x Aluminium Trays Included (437 x 314 mm) |
| Tray Spacing |
80 mm Level Spacing |
| Circulation System |
Dual Powerful Reversing Fans |
| Interior Finish |
Easy-Clean Porcelain Enamel Cavity |
| Temperature Range |
50°C to 300°C Adjustable Thermostat |
| Timer System |
120-Minute Mechanical Timer with Bell |
| Door Design |
Forward & Down Drop Door with Double-Layer Glass |
| Safety Features |
Automatic Power / Fan Cut-Off Upon Door Opening |
| Optional Accessories |
Stainless Steel Wire Shelves (Sold Separately) |
| Internal Dimensions (WxDxH) |
460 x 375 x 360 mm |
| External Dimensions (WxDxH) |
595 x 530 x 570 mm |
| Net Weight |
38.0 kg |
| Electrical Supply |
240V / 50Hz / Single Phase (2.4kW / Standard AU 10A Plug) |
| Warranty |
1 Year Commercial Parts & Labour Warranty |
Delivery & Freight Notice: Shipping rates vary across Australia depending on your location. Please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Setup & Preheating: Turn the temperature dial to your desired setpoint (up to 300°C) and set the 120-minute timer. Allow the dual reversing fans to preheat the enamel chamber before loading your 437 x 314mm trays.
-
Baking & Loading: Open the drop-down door (which automatically pauses the fan) and slide in your baking trays onto the 80mm rack supports. Close the door firmly to resume forced-air cooking.
-
End-of-Shift Sanitisation: Switch off the unit and allow it to cool down completely. Remove the aluminium trays and wire supports for washing in warm soapy water. Wipe down the smooth enamel chamber and inner double-glass door with a non-abrasive damp cloth.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
