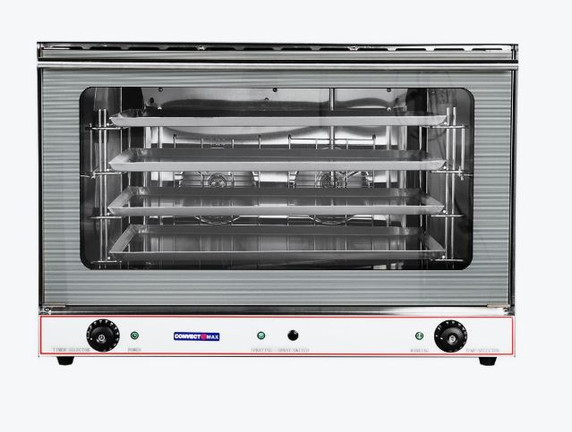

The Convect Max YXD-8A/15E Commercial Electric Convection Oven is a heavy-duty, high-capacity benchtop baking and roasting system engineered for Australian bakeries, cafes, bistros, catering services, and busy commercial prep kitchens. Purpose-built to accommodate four full-sized 600x400mm trays, this 3.3kW unit delivers exceptional thermal efficiency and uniform heat distribution across a wide 50°C to 300°C temperature range.
Driven by dual reversing fans, an integrated manual steam function, and five-sided thermal insulation, the YXD-8A/15E ensures even browning and moist interior results every cycle without needing to rotate trays manually. Constructed from heavy-duty stainless steel with double-toughened glass doors, rounded internal cavity corners, and an intuitive 120-minute timer, this single-phase 15 Amp unit provides high-volume production capabilities in a compact footprint.
Why Choose the Convect Max YXD-8A/15E Convection Oven?
Choosing the Convect Max YXD-8A/15E Electric Convection Oven equips commercial food service operations with a reliable, powerful, and easy-to-clean benchtop oven built for daily commercial performance.
Key reasons commercial operators specify the Convect Max YXD-8A/15E include:
-
High-Capacity 4 x 600x400mm Tray Setup: Supplied complete with four aluminium baking trays set at an optimal 80mm level distance for high-volume batch production.
-
Dual Reversing Fan Technology: Twin heavy-duty fans reverse direction automatically to drive uniform heat and airflow across all four baking levels, eliminating cold spots.
-
Integrated Manual Steam Function: Moisture injection system helps produce crisp crusts on breads, rolls, and pastries while keeping roasted meats tender and juicy.
-
High-Output 3.3kW Heating Power: Operates on single-phase 240V power with a 3.3kW loading for fast preheating and rapid temperature recovery between loads (requires a 15A outlet).
-
Wide 50°C to 300°C Temperature Range: Intuitive twin-knob control allows precise adjustment for delicate baking, slow thawing, high-temperature roasting, or finishing.
-
360°C Thermal Hi-Limiter Cut-Off: Built-in high-limit safety device automatically prevents overheating to protect internal electronics and kitchen safety.
-
Double-Toughened Glass Door: Insulated door construction keeps exterior touch temperatures safer, traps heat inside the chamber, and opens to 90° for full cavity access.
-
Easy-Clean Stainless Steel Cavity: Features rounded internal corners, nickel-coated removable pan supports, and a stainless steel baffle plate for effortless end-of-shift maintenance.
Technical Specifications
| Feature |
Specification |
| Brand / Model |
Convect Max YXD-8A/15E |
| Product Type |
Commercial Benchtop Electric Convection Oven with Steam |
| Tray Capacity & Size |
4 x 600 x 400 mm Aluminium Trays Included |
| Level Distance |
80 mm Shelf Spacing |
| Temperature Range |
50°C to 300°C (Twin Mechanical Control Knobs) |
| Circulation System |
Dual Reversing Electric Fans |
| Moisture Control |
Integrated Manual Steam Function |
| Timer System |
120-Minute Mechanical Countdown Timer with End Bell |
| Safety Features |
360°C Thermal Hi-Limiter Cut-Off & 5-Sided Thermal Insulation |
| Chamber View |
Internal Chamber Light with Double-Toughened Glass Door |
| Internal Dimensions (WxDxH) |
700 x 460 x 360 mm |
| External Dimensions (WxDxH) |
834 x 765 x 572 mm |
| Net Weight |
67.0 kg |
| Electrical Supply |
240V / 50Hz / Single Phase (3.3kW / 15A Plug Required) |
| Warranty |
1 Year Commercial Parts & Labour Warranty |
Electrical Supply Notice: This unit draws 3.3kW and requires a dedicated single-phase 15 Amp electrical outlet (it is not compatible with standard 10 Amp power points).
Delivery & Freight Notice: Shipping rates vary across Australia depending on your location. Please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Setup & Preheating: Turn the temperature control dial to your desired baking setpoint (up to 300°C) and set the 120-minute timer. Allow the dual reversing fans to preheat the chamber before loading your 600x400mm baking trays.
-
Steam Injection & Baking: Engage the steam function during the initial minutes of baking bread, rolls, or pastries to introduce surface moisture for a crisp, golden crust and optimal rise.
-
End-of-Shift Sanitisation: Turn off the oven and allow it to cool completely. Wipe down the double-glass door and smooth stainless steel cavity walls with a soft, non-abrasive damp cloth. Remove the nickel-coated pan supports and aluminium trays for washing in warm, food-safe soapy water.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
