Blizzard SN-128F 120kg Granular Flake Ice Maker | 50kg Bin 10A

[BLIZZARD_MSG]

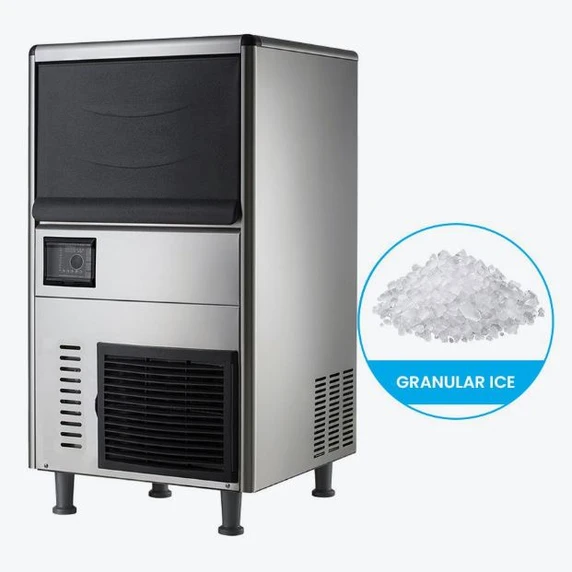

The Blizzard SN-128F 120kg Air-Cooled Commercial Granular Ice Maker is a heavy-duty, self-contained flake ice machine engineered specifically for Australian seafood retailers, supermarket fish mongers, hotel buffet displays, salad bars, clinical healthcare facilities, cocktail lounges, and food processing lines. Measuring 650 mm Wide x 660 mm Deep x 1050 mm High and weighing 79 kg, this freestanding unit generates up to 120kg of high-hardness granular flake ice every 24 hours and includes an expansive 50kg insulated storage bin. Powered by premier international components—including an automated Hisakage PLC control board, German ebm-papst condenser fans, Danish Danfoss expansion valve and filter, Japanese Saginomiya solenoid and hydraulic valves, and a US Morrill water circulation pump—the SN-128F delivers continuous ice production, mouldable presentation beds, and rapid chilling on a standard 10A plug-and-play electrical connection.

Why venue operators choose the Blizzard SN-128F:

• High-volume granular production (up to 120kg/24h) — high-efficiency freezing cylinder generates up to 120kg of granular flake ice per 24 hours to handle morning retail setup rushes, fresh display bedding, and heavy banquet replenishment.

• Large 50kg insulated storage bin — heavy-duty polyurethane-insulated bin holds up to 50kg of ice ready for instant service, equipped with automated bin level sensors to prevent overfilling and compressor strain.

• Mouldable, high-hardness granular flake ice — produces dense, slow-melting flake ice that packs smoothly around whole fish, oysters, meat cuts, salad bowls, and wine bottles, offering maximum surface contact and superior shelf life without bruising delicate produce.

• Eco-efficient air-cooled refrigeration — air-cooled condensing system uses zero cooling water during continuous ice creation, significantly reducing venue utility bills compared to water-cooled alternatives.

• World-class global engineering components — precision-built with a Hisakage PLC control system, German ebm-papst fan motors, US Morrill water pump, Danish Danfoss expansion valve and dry filter, and Japanese Saginomiya hydraulic and solenoid valves for commercial uptime.

• Hygienic commercial stainless steel cabinet — heavy-gauge food-grade stainless steel body with smooth surfaces resists corrosive salt, moisture, and acid exposure while wiping down effortlessly.

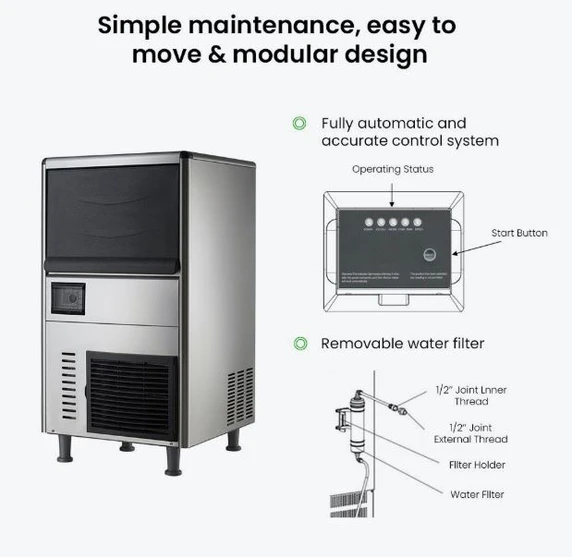

• Low-maintenance modular layout — front-accessible panels and clean interior waterways speed up regular descaling, sanitisation, and routine servicing.

• Standard 10A plug-and-play installation — economical 710W energy consumption operates on standard Australian single-phase 220V–240V mains power with a factory-fitted 10 Amp plug, requiring no 15A electrical alterations.

Technical Specifications

Essential Water Filtration & Warranty Compliance

Commercial flake and granular ice machines use continuous mechanical extrusion, making clean, treated water vital to protect the stainless steel auger, freezing cylinder, and bearings. In municipal water supplies across Australia, dissolved mineral salts and limescale accumulate on the freezing barrel over time, causing mechanical friction, reduced ice output, and premature evaporator wear.

Mandatory Warranty Requirement: An approved commercial inline water filter system (such as the WFI37000 Commercial Water Filtration System) must be installed upon setup to protect the internal freezing cylinder and validate your 2-Year parts and labour warranty coverage.

Follow this essential 4-step servicing program:

1. Evaporator & Cylinder Descaling: Routinely descale the vertical freezing cylinder, auger, and water distribution housing using an approved food-grade commercial descaling solution to remove scale build-up and prevent auger motor drag.

2. Sanitisation: Clean and sanitise the internal water sump, distribution lines, ice drop chute, and the 50kg insulated storage bin interior using an approved food-contact sanitiser to ensure Australian food safety compliance.

3. Air Filter & Coil Care: Inspect, flush, and vacuum the air-cooled condenser coils and washable air filter monthly to maintain unrestricted airflow and prevent compressor overheating.

4. Water Filter Cartridge Replacement (Every 6 Months): Replace the inline water filter cartridge bi-annually (or more frequently in hard-water areas) to keep sediment, chlorine, and minerals out of the water system.

Plumbing, Operating & Service Notice

The Blizzard SN-128F requires connection to a cold potable mains water line terminating at an isolation tap (operating between 100 kPa and 500 kPa) and a dedicated gravity floor waste drain with an approved physical air gap. Ensure the drain hose runs steadily downhill without upward loops to allow meltwater from the 50kg bin to evacuate freely. Provide at least 100 mm to 150 mm of ventilation clearance around the air intake and exhaust vents to ensure efficient heat rejection from the air-cooled condenser. Always plug the machine directly into a dedicated 240V 10A wall outlet; do not operate the appliance via extension leads, double adaptors, or multi-plug power boards.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia. Delivery to non-commercial or residential addresses requires a customised freight calculation. Please contact our friendly commercial sales team prior to placing your order to verify site access, doorways, and tail-lift delivery requirements.

Frequently Asked Questions

What are the main commercial uses for granular flake ice?

Granular flake ice features an irregular, soft-yet-dense texture with high moisture contact. It moulds tightly around products without sharp corners that might puncture or bruise delicate surfaces. It is the industry standard for seafood display beds, supermarket fresh fish counters, salad bars, cold food buffet presentations, therapeutic cold therapy in medical clinics, and rapid cocktail chilling.

How does granular ice differ from standard full-dice cube ice?

Full-dice ice consists of solid, geometric blocks designed primarily for slow-melting beverage service in glasses. Granular flake ice is continuously shaved and compressed from a freezing cylinder, creating small, mouldable flakes that pack easily around food containers and whole produce to provide immediate, even surface-area cooling.

Why is an inline water filter mandatory for warranty protection?

Flake ice makers rely on an internal rotating auger inside an evaporator cylinder. When unconditioned mains water freezes, minerals drop out of suspension and coat the internal walls with abrasive limescale. This scale increases mechanical friction against the auger, placing excessive load on the drive gearbox and motor. Installing an approved inline water filter prevents scale accumulation and is a mandatory condition of the 2-Year warranty.

Does the Blizzard SN-128F require a gravity floor waste drain?

Yes. The SN-128F is configured for gravity drainage to evacuate condensation and bin meltwater. It must be positioned near a suitable floor waste, tundish, or drain outlet installed with a physical air gap in compliance with Australian plumbing standard AS/NZS 3500.

What electrical outlet is required?

The Blizzard SN-128F draws 710W on standard Australian single-phase 220V–240V power. It comes factory-fitted with a standard Australian 10 Amp plug and lead, allowing immediate plug-and-play connection to any standard commercial wall socket without requiring 15A electrical alterations.

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
