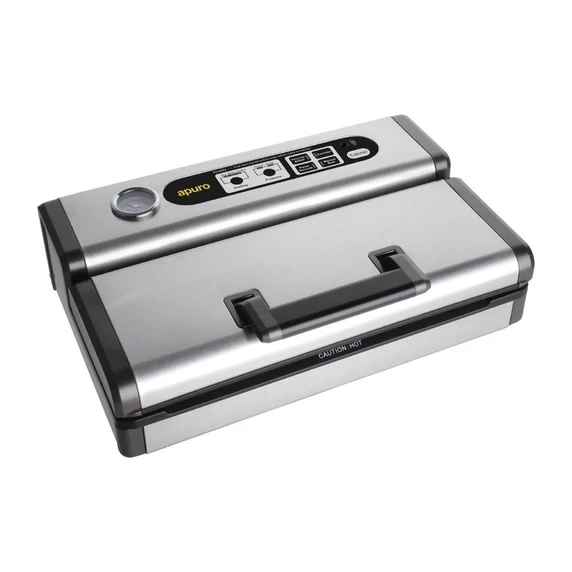

Apuro CN514-A 300mm Portable Vacuum Sealer | Standard 10A Plug

The Apuro CN514-A Commercial Portable Vacuum Sealer with 300mm Sealing Bar is a compact, high-efficiency external suction food packaging system engineered specifically for Australian commercial kitchens, boutique cafes, butcher shops, catering operations, delis, and sous vide prep stations. Measuring 400 mm Wide x 265 mm Deep x 125 mm High and weighing just 3.5 kg, this portable countertop unit quickly evacuates air to create an airtight, hermetic seal across embossed bags up to 300mm wide. Outfitted with dual vacuum pressure modes (Normal and Gentle), adjustable sealing durations (Normal and Extended), an integrated analogue vacuum pressure gauge, and an intuitive manual pulse control, the CN514-A provides precise packaging control for delicate produce, cured meats, firm cheeses, and portioned meal prep on a standard 10A plug-and-play electrical connection.

Why Australian commercial kitchens choose the Apuro CN514-A:

• Extends ingredient shelf life & cuts food waste — extracts atmospheric oxygen to inhibit aerobic bacterial growth, prevent freezer burn, and preserve natural flavours, extending the storage life of fresh produce, poultry, and cheeses up to five times longer than standard wrapping.

• Precise sous vide preparation — locks food into airtight vacuum pouches with zero air pockets, guaranteeing optimal thermal transfer, uniform water bath cooking, and consistent internal temperatures.

• Specialised 300mm wide heating bar — accommodates vacuum pouches and continuous roll stock up to 300mm wide, providing versatile sealing for whole cuts, portioned steaks, and bulk vegetable prep.

• Dual vacuum & seal duration modes — switch easily between Normal and Gentle vacuum pressures, paired with Normal or Extended heat-sealing times to handle moist cuts, dense proteins, or delicate pastries.

• Manual pulse vacuum control — offers fingertip micro-control over suction levels, allowing operators to evacuate air gradually around soft berries, leafy herbs, and soft cheeses without crushing product shape.

• Analogue vacuum pressure gauge — front-mounted needle pressure meter delivers clear, real-time visual tracking of vacuum pull-down performance during every cycle.

• Dedicated heat-seal-only function — operates as a standalone impulse bag sealer without engaging the vacuum pump, ideal for resealing dry chip packets, spice sachets, or making custom-sized pouches from rolls.

• Commercial stainless steel & ABS casing — durable, food-grade stainless steel top housing paired with heavy-duty ABS body withstands high-traffic kitchen counter service while wiping clean in seconds.

• Standard 10A plug-and-play installation — economical 130W power draw operates on standard Australian single-phase 230V mains power with a factory-fitted 10 Amp plug, allowing swift redeployment anywhere on the prep line.

Technical Specifications

Important Bag Compatibility & Liquid Handling Notice

• Bag Requirement: As an external suction clamp sealer, the Apuro CN514-A requires embossed (channelled or micro-ribbed) vacuum bags or rolls. Smooth-sided vacuum pouches designed for chamber machines will not draw a vacuum on this unit, as the internal suction nozzle relies on the embossed micro-channels to draw air out of the pouch.

• Liquid Restrictions: This machine is engineered for solid, dry, or semi-moist food items (steaks, sausages, firm cheeses, dry-cured meats, and blanched vegetables). Free-flowing liquids—such as soups, thin marinades, stocks, or watery sauces—will be pulled directly into the vacuum channel and pump assembly, potentially damaging the internal motor. For marinating or moist foods, pre-freeze ingredients slightly until firm, use the manual pulse button to stop the cycle before moisture reaches the seal bar, or invest in a commercial chamber vacuum packer.

Operating, Care & Preventative Maintenance

1. Cleaning the Vacuum Channel: Periodically wipe down the vacuum channel trough and foam sealing gaskets using a soft, damp cloth and mild sanitiser. Ensure the foam gaskets remain clean, uncompressed, and free from food debris to maintain an airtight chamber seal.

2. Seal Wire Care: Keep the Teflon-coated sealing strip clean and wipe away melted plastic or fat residues after each shift. Never clean the heating wire with sharp metal blades or abrasive scourers.

3. Rest Intervals: For prolonged commercial packaging runs, allow a brief 15 to 20-second cooling pause between consecutive seals to prevent thermal overload on the heat-sealing bar.

4. Storage Position: When storing the unit, keep the lid unlatched to prevent permanent flattening of the high-density foam gaskets.

Freight & Delivery Notice

Standard commercial freight delivery is available Australia-wide. The Apuro CN514-A is securely boxed in shock-absorbing protective packaging for safe transit. For delivery to residential or non-commercial addresses, please contact our friendly commercial sales team prior to ordering to arrange a customised courier quote.

Frequently Asked Questions

What kind of bags work with the Apuro CN514-A?

The Apuro CN514-A requires embossed (channelled/ribbed) vacuum sealer bags or continuous rolls. The textured micro-grooves inside embossed bags allow air to escape while the bag is clamped shut. Smooth, non-textured bags used in commercial chamber vacuum machines will collapse flat and block the suction passage, preventing air evacuation.

Can I vacuum seal soups, stocks, or wet marinades with this machine?

No. Because external vacuum sealers draw air directly through the mouth of the bag, free liquids will be sucked up into the pump chamber, compromising the seal and risking damage to internal electrical components. To pack wet items, either pre-freeze the food until solid, select the manual "Pulse" setting and seal before liquids rise to the bar, or utilise a commercial chamber vacuum machine.

How does the "Pulse" vacuum feature help with food presentation?

Continuous automatic vacuum cycles can crush delicate items like raspberries, pastries, flaky fish fillets, or soft cheeses. The Pulse button allows kitchen staff to draw air out in short, controlled bursts, stopping the suction at the exact moment required before triggering the heat-seal cycle manually to protect product structure.

Can this unit be used just to seal bags without vacuuming?

Yes. The CN514-A features a dedicated "Manual Seal" button. This allows you to heat-seal open bags—such as dry snack packets, confectionery bags, or custom lengths cut from continuous embossed rolls—without drawing a vacuum.

What electrical outlet is required?

The unit draws an energy-efficient 130W on standard Australian 230V single-phase power. It comes factory-fitted with an Australian standard 10 Amp plug and lead, allowing immediate plug-and-play operation on any commercial prep bench or domestic-style 240V socket without requiring electrical modifications.
