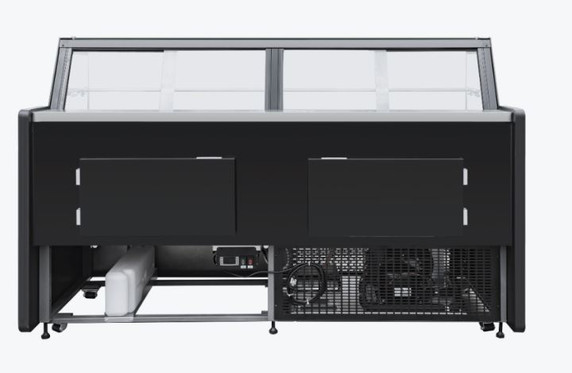

The Thermaster ST20LK Compact Commercial Deli Display Counter is a high-capacity, premium refrigerated showcase designed specifically for Australian delicatessens, butcheries, supermarkets, cafes, seafood markets, and specialty food outlets. Sized at 1,955 mm Wide x 940 mm Deep x 1,200 mm High with an expansive 670-litre capacity and a 0.95 m² display deck area, this wide-body display counter provides an attractive, hygienic platform for presenting large selections of fresh meats, smallgoods, cheeses, salads, and prepared deli items.
Featuring an 8 mm thick tempered glass canopy that tilts forward 32° for easy cleaning and product loading, the ST20LK is built with two refrigerated rear storage compartments (600 mm x 300 mm) for rapid stock replenishment during peak trading hours. Powered by a premium Embraco compressor and an EBM fan-forced cooling system using eco-friendly R290 natural refrigerant, it maintains strict food-safe temperatures between 0°C and +5°C (at 25°C ambient / 60% relative humidity). Outfitted with a Dixell digital temperature controller, automated defrost cycle, self-evaporative condensate drainage, bright LED showcase lighting, an internal glass shelf, and mobile castors with levelling feet, it connects directly to a standard Australian 10 Amp wall socket (240V / 440W). It comes backed standard by a 1-Year Parts & Labour Commercial Warranty.
Why Choose the Thermaster ST20LK Compact Deli Display Counter?
Selecting the Thermaster ST20LK Deli Display Counter equips high-volume food retailers and commercial venues with an expansive, energy-efficient showcase engineered to maximize product presentation while preserving food freshness.
Key benefits of the Thermaster ST20LK include:
-
Frameless Square Glass Canopy & 32° Tilt Opening: Premium 8 mm thick tempered glass canopy maximizes clear product visibility from all angles, tilting forward 32° to simplify morning layout setup and end-of-day glass cleaning.
-
Dual Rear Refrigerated Reserve Storage (2 x 600mm x 300mm): Convenient under-counter refrigerated storage doors allow serving staff to store pre-chilled backup stock directly at the serving line, eliminating constant trips to back-of-house cool rooms.
-
Premium Refrigeration (Embraco Compressor & EBM Fan): High-performance Embraco compressor paired with a German-engineered EBM fan-forced air system ensures consistent airflow and even temperature distribution across the entire display deck.
-
Precise Dixell Digital Climate Control (0°C to +5°C): Industry-standard Dixell digital thermostat with an intuitive external display provides exact temperature management between 0°C and +5°C.
-
Bright Internal LED Showcase Lighting: Built-in energy-efficient LED lighting spotlights food textures, fresh colours, and display arrangements to drive high impulse sales.
-
Eco-Friendly R290 Natural Refrigerant: Hydrocarbon R290 refrigerant delivers superior cooling efficiency with zero ozone depletion potential and low environmental impact.
-
Self-Evaporative Condensate Drainage: Features an integrated self-evaporative water drainage system for standard operation (additional external drainage line recommended in high-humidity environments).
-
Optional Stainless Steel Seafood Trays: Custom food-grade stainless steel seafood trays are available on request ($500/metre) for fresh fish and seafood merchants.
-
Plug-and-Play 10A Setup: Draws 440 Watts on single-phase 240V electricity, plugging straight into any standard Australian 10 Amp power outlet.
-
1-Year Commercial Warranty: Backed standard by a 1-Year Parts and Labour Commercial Warranty.
Technical Specifications
| Feature |
Specification Details |
| Brand & Range |
Thermaster Merchandising Series |
| Model Code |
ST20LK |
| Product Type |
Commercial Compact Refrigerated Deli & Meat Display Counter |
| Gross Storage Volume |
670 Litres |
| Display Deck Area |
0.95 m² |
| Rear Storage Compartments |
2 x Refrigerated Storage Doors (600 mm x 300 mm each) |
| Temperature Set Range |
0°C to +5°C (Dixell Digital Thermostat) |
| Ambient / Humidity Rating |
25°C Ambient Temperature / 60% Relative Humidity |
| Compressor & Fan |
Embraco Compressor | EBM Fan-Forced Cooling System |
| Refrigerant Type |
Natural R290 Hydrocarbon |
| Glass Canopy |
8 mm Tempered Glass | Forward Tilting (32°) Canopy |
| Internal Shelving |
1 x Tempered Glass Upper Shelf Included |
| Defrost & Drainage |
Automatic Defrost | Self-Evaporative Drainage System |
| Illumination |
High-Output Internal LED Lighting |
| Mobility & Base |
Mobile Castors with Adjustable Levelling Feet |
| Optional Accessories |
Stainless Steel Seafood Trays (Available at $500/metre) |
| External Dimensions (WxDxH) |
1,955 mm W x 940 mm D x 1,200 mm H |
| Product Net Weight |
190.0 kg |
| Power Consumption |
440 Watts |
| Electrical Supply |
240V / 50Hz / Single Phase (Standard AU 10A Plug Attached) |
| Warranty |
1 Year Parts & Labour Commercial Warranty |
High Humidity Notice: In tropical or high-humidity operating conditions, connecting an additional external drainage line is recommended to handle excess moisture runoff.
Freight & Delivery Notice: Commercial floor-standing display counters require dedicated freight handling. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Setup & Positioning: Roll the display counter into position on a level surface, lower the adjustable levelling feet to secure the cabinet, and plug into a dedicated 240V 10A wall socket. Allow adequate ventilation around the motor housing.
-
Pre-Cooling & Loading: Turn on main power and set target temperature (0°C to +5°C) via the Dixell digital controller. Allow the unit to run empty for 2 to 3 hours until holding temperature stabilizes before loading pre-chilled deli products onto the stainless steel deck and glass shelf.
-
Daily Hygiene & Glass Cleaning: At the end of service, tilt the front 8 mm tempered glass canopy forward (up to 32°) to easily wipe down interior surfaces. Clean internal stainless steel decks and glass panels using a damp microfibre cloth and a food-safe commercial sanitiser. Never use abrasive sponges on tempered glass panels.
Frequently Asked Questions
1. Does the Thermaster ST20LK plug into a standard 10 Amp wall outlet?
Yes. The Thermaster ST20LK draws 440 Watts and operates on standard single-phase 240V power with a standard Australian 10 Amp plug.
2. How does the tilting front glass canopy help daily operations?
The 8 mm tempered front glass canopy tilts forward up to 32°, giving staff direct, unobstructed access to the internal display area for morning layout setup, product loading, and fast end-of-shift glass cleaning.
3. What is the rear refrigerated storage used for?
The ST20LK features two rear 600 mm x 300 mm refrigerated doors below the counter deck. This keeps reserve stock pre-chilled and easily accessible to serving staff, reducing trips to back-of-house cool rooms.
4. Can this unit be used for fresh seafood?
Yes. Stainless steel seafood trays designed specifically for fresh fish display are available upon request as an optional add-on ($500 per metre).
5. What warranty covers the Thermaster ST20LK?
The Thermaster ST20LK comes backed standard by a 1-Year Parts and Labour Commercial Warranty.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
