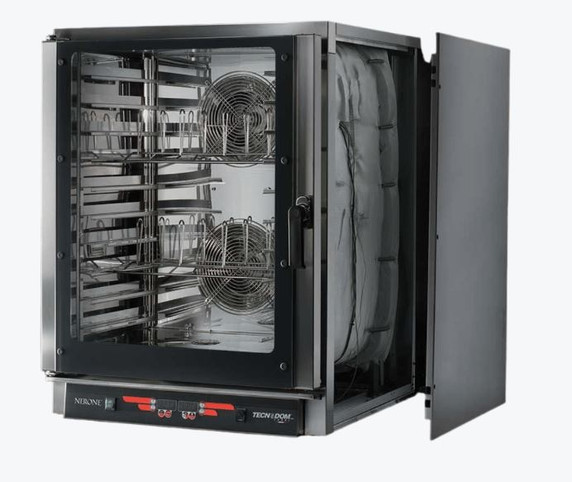

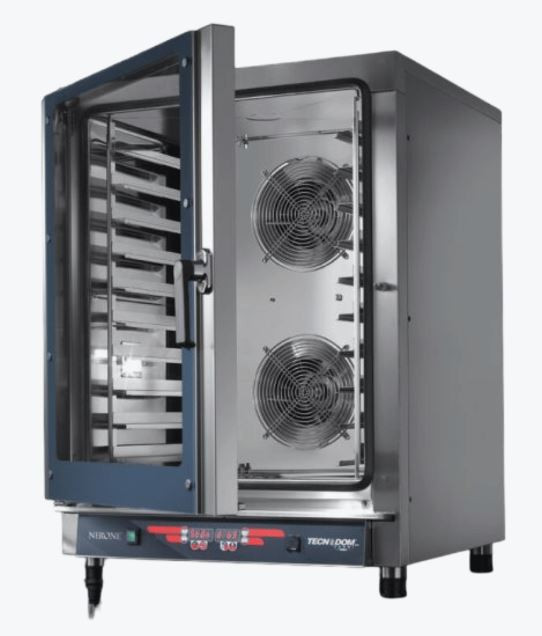

Tecnodom TD-10NE Digital Combi Oven 10 Tray | Italian Made 12.7kW

[GLOBAL_MSG_2]

The Tecnodom Nerone MID Digital 10 Tray Commercial Combi Oven (TD-10NE) is an Italian-engineered 10-pan combination steam and convection cooking powerhouse designed specifically for Australian commercial restaurants, bakeries, patisseries, hotel production kitchens, catering operations, and institutional facilities. 100% made in Italy, the TD-10NE offers a versatile 10-tier internal racking system engineered with dual-compatibility runners that accommodate either standard 1/1 Gastronorm (GN 1/1) pans or 600 x 400 mm European bakery/pastry trays with a generous 80 mm pitch between shelves. Operating with a precise temperature range of 30°C to 280°C, this electric digital combi oven functions with or without an active direct water-injection humidification system, allowing chefs and bakers to roast meats with crisp finishes, steam fresh vegetables and seafood, bake crusty artisan breads, or regenerate pre-cooked banqueting pans. Powered by a heavy-duty 12.7 kW three-phase heating system (380–415V 3~N), built from food-grade commercial stainless steel, and controlled via an intuitive digital interface, the TD-10NE delivers uniform batch cooking performance across demanding high-volume commercial services.

Why Australian commercial kitchens, artisan bakeries, and venues choose the Tecnodom Nerone MID TD-10NE:

• 100% authentic Italian manufacturing — precision-designed, crafted, and assembled in Italy by Tecnodom to meet the rigorous endurance and thermodynamic requirements of professional culinary environments.

• Dual-format 10-tray loading flexibility — multi-purpose internal shelf runners accommodate up to 10 x 1/1 Gastronorm pans (catering/gastronomy) or 10 x 600 x 400 mm bakery grids (patisserie/pastry), eliminating the need for dedicated separate ovens.

• Wide digital temperature regulation (30°C to 280°C) — versatile thermal band supports low-temperature proving and delicate slow roasting through to high-heat roasting, braising, and artisan baking.

• Direct water injection system — built-in steam injection delivers controllable moisture into the cooking chamber for tender meats, crisp bread crusts, glossy pastries, and rapid pan regeneration without drying out food.

• Generous 80mm tray spacing — ample 80 mm vertical separation between shelf runners allows unrestricted convective air circulation, ensuring uniform browning across full-batch cooking cycles.

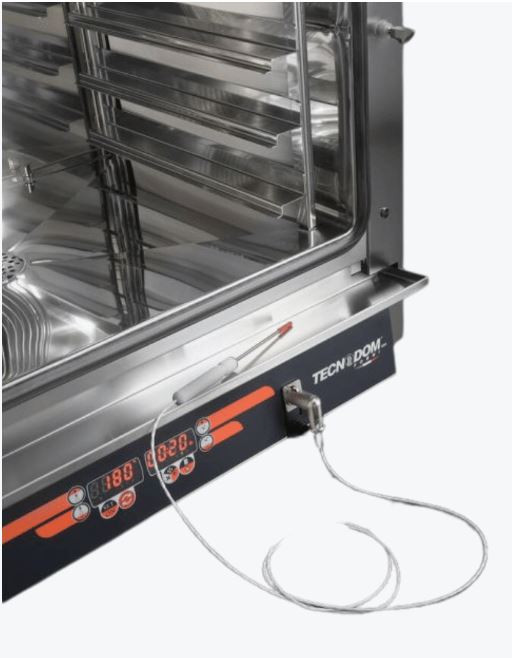

• Intuitive digital control console — user-friendly electronic digital panel provides precise setting of cooking temperatures, timers, and steam injection intervals for repeatable recipe execution.

• Spacious 680 x 480 x 840mm cooking cavity — large internal chamber comfortably handles bulky roasts, deep GN containers, and high-rise baked goods.

• Full commercial stainless steel construction — heavy-gauge food-grade stainless steel interior chamber and exterior body resist food acids, heat fatigue, and grease while enabling swift end-of-shift sanitisation.

• 1-Year commercial parts and labour warranty — backed by professional Australian commercial warranty protection and responsive national technical support.

Technical Specifications

Daily Care, Maintenance & End-of-Shift Sanitisation

To preserve steam generation efficiency, prevent internal limescale build up, and ensure strict kitchen hygiene:

1. End-of-Shift Chamber Washdown: At the end of service once the chamber has cooled to below 60°C, spray the stainless steel interior walls, fan shroud, and glass door with an approved non-caustic commercial combi oven cleaner. Allow the solution to dwell for 5 to 10 minutes to dissolve grease and carbonised sugars, then run a short steam cycle or rinse thoroughly using a low-pressure washdown hose. Wipe dry with a clean microfibre cloth.

2. Mandatory Water Filtration (Limescale Prevention): When connecting the water injection system, the oven must be protected with an approved water filtration and softening system, such as the compatible BWT Combi Oven Water Filter (WFC3500). Untreated mains water contains dissolved calcium and magnesium minerals that rapidly precipitate into rock-hard limescale when heated, clogging water injection nozzles, coating heating elements, causing uneven cooking, and voiding the manufacturer's warranty. Replace filter cartridges according to local water hardness testing schedules.

3. Double-Glazed Door & Perimeter Gasket Care: Inspect and wipe down the rubber perimeter door seal daily with warm water and a neutral detergent to remove grease and food residue. Keeping the silicone gasket clean ensures an airtight seal, prevents steam escape, and protects the digital control board from moisture ingress. Clean both faces of the internal and external door glass with a streak-free glass cleaner.

4. Internal Rack Stripping: Lift out the left and right 10-tier shelf support racks weekly. Soak and scrub the racks in a commercial pot-wash sink with warm water and a commercial degreaser to remove baked-on oils.

5. Drain Basin Inspection: Inspect the internal chamber drain hole and condensation trough daily. Clear out any dropped food debris, plastic baking film, or grease build up to ensure condensation drains freely away into the external waste connection.

Commercial Installation, Electrical & Plumbing Guidelines

The Tecnodom Nerone TD-10NE is a high-output three-phase commercial appliance requiring certified trade commissioning:

1. Mandatory Licensed Electrical Installation: Operating on a 380–415V 3~N 50Hz electrical supply with a 12.7 kW power draw, the oven is supplied without an electrical cable or 3-phase plug. It must be permanently hardwired to an appropriately rated commercial isolator switch by a licensed electrician in compliance with AS/NZS 3000 wiring rules.

2. Plumbing & Drain Connections: When utilizing the water injection steam feature, connect the unit to a cold potable water supply line (recommended dynamic pressure: 1.5 to 3.0 bar) through an approved dual-check backflow preventer and a commercial water filter system (e.g., BWT WFC3500). Connect the high-temperature condensation drain outlet to an open tundish compliant with local council plumbing regulations.

3. Exhaust Canopy & Ventilation Clearances: Combi ovens produce substantial thermal convection, grease aerosols, and steam plumes when the door is opened. The TD-10NE must be installed directly beneath an approved commercial kitchen mechanical exhaust canopy compliant with AS 1668.2. Maintain a minimum clearance of at least 100 mm at the rear and sides of the unit to allow heat dissipation from the electronics cabinet.

4. Stable Equipment Placement: Due to its 125–127 kg operating weight, mount the oven onto an engineered commercial stainless steel oven stand, stacking base, or reinforced workbench rated to safely support the full dynamic weight of the unit when loaded with food.

Freight, Packaging & Delivery Notice

Standard commercial road freight delivery is available across Australia to commercial business addresses with level ground access or forklift/loading dock facilities. Due to the oven's substantial 150 kg packed weight, vertical 1.3-metre crated profile, and delicate electronic glass door assembly, deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to placing your order to confirm site access logistics, verify doorway clearances (minimum 920 mm clear opening recommended), or request a tailored package quote including Gastronorm pans, bakery grids, and the BWT WFC3500 filtration kit.

Frequently Asked Questions

What are the advantages of dual-compatibility GN 1/1 and 600x400mm shelf runners?

Most commercial ovens force operators to choose between a catering oven (Gastronorm 1/1) or a dedicated bakery convection oven (600 x 400 mm European size). The Tecnodom TD-10NE features dual-format internal shelf racking that holds both pan types. This allows venue operators—such as hotel kitchens, cafes, or bistros—to bake croissants, Danish pastries, and baguettes on bakery grids in the morning, and seamlessly switch to roasting meats, steaming vegetables, and holding sauces in 1/1 GN pans for lunch and dinner service.

Can the oven be used without connecting a water supply?

Yes. The TD-10NE can operate strictly as a high-capacity digital convection oven without water connected. However, to utilize the direct-injection steam functions—essential for crust formation in artisan baking, gentle vegetable steaming, and moist meat roasting—a filtered potable water line must be connected.

Why is an external water filter like the BWT WFC3500 necessary?

Australian tap water contains varying levels of dissolved minerals. When water is injected into a hot 200°C+ oven chamber to create steam, the water evaporates instantly, leaving behind scale minerals. Over time, limescale coats the heating elements, obstructs internal boiler/injection nozzles, and causes premature heating failure. Operating without an approved commercial filter voids warranty protection on water-related components.

Does the oven come with power cables, plugs, or cooking pans?

No. To accommodate diverse commercial electrical setups, the TD-10NE is supplied without a power lead or 3-phase plug; your licensed electrician must supply the correct gauge cable and connect it to your local isolator or 3-phase outlet. Grids and pans are also sold separately so you can select the exact combination of stainless steel pans, non-stick baking trays, or wire shelves suited to your menu.

How does the 80mm tray distance improve baking and roasting?

Ovens with tight 60 mm or 70 mm tray spacings can restrict airflow when loaded with high-profile items like roast chickens, whole loaves of bread, or deep Gastronorm pans, leading to uneven cooking. The generous 80 mm shelf spacing in the TD-10NE ensures smooth, continuous convective airflow across every tray level, delivering uniform heat and colour across every portion.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
