Tecnodom Nerone CL TDC-5VH 5-Tray Digital Commercial Combi Oven

[GLOBAL_MSG_2]

The Tecnodom Nerone CL TDC-5VH 5-Tray Digital Commercial Combi Oven represents Italian design excellence and advanced engineering tailored for Australian commercial kitchens, bakeries, cafes, restaurants, clubs, and catering operations. Sized at 920 mm Wide x 840 mm Deep x 770 mm High, this compact yet high-performance combi steamer holds up to 5 x 1/1 GN gastronorm pans or 5 x 600 mm x 400 mm bakery trays, delivering dual-purpose flexibility for both savoury cooking and precision pastry or bread baking.

Designed and manufactured in Italy, the TDC-5VH features auto-reversing fans with 4-speed control to ensure uniform heat distribution across all five levels—even on low fan speeds for delicate items like meringues, soufflés, and macarons. Powered by a high-output 6.45 kW 3-phase electrical connection (415V), it offers convection cooking from 30°C to 280°C, 100% steam moisture function at 100°C, Delta-T ($\Delta T$) gentle cooking, and an infinity continuous operation mode for non-stop service during peak rushes. Controlled via an intuitive digital interface with 99 programmable 5-stage recipes, it comes equipped with a multi-sensing core probe, an automatic 4-stage liquid self-cleaning system, a two-stage safety door release mechanism, and is backed by a 1-Year Parts and Labour Commercial Warranty.

Why Choose the Tecnodom Nerone CL TDC-5VH 5-Tray Combi Oven?

Choosing the Tecnodom Nerone CL TDC-5VH Combi Oven equips commercial kitchen operators with an efficient, versatile, and user-friendly cooking platform engineered to handle heavy production, streamline daily kitchen prep, and maximize baking consistency.

Key benefits of the Tecnodom TDC-5VH include:

• Dual Gastronorm & Bakery Tray Compatibility: Versatile internal chamber guides accept both standard 1/1 GN commercial pans and 600 mm x 400 mm European bakery trays, making it an ideal crossover unit for cafes, bakeries, and restaurants.

• Auto-Reversing Fans with 4-Speed Control: Reversing fan rotation paired with 4 adjustable speed settings delivers balanced airflow and heat distribution, ensuring even browning across all five trays without hot spots.

• Precision Steam & Convection Modes: Variable convection temperature ranging from 30°C to 280°C paired with a 100°C / 100% steam moisture function for flawless roasting, baking, steaming, and proofing.

• 99 Programmable 5-Stage Recipe Storage: Store up to 99 custom multi-phase recipes with up to 5 distinct cooking stages per program for single-touch execution and consistent dish quality across shifts.

• Delta-T (ΔT) & Infinity Continuous Modes: Delta-T gentle cooking monitors core probe temperatures to minimize meat shrinkage on roasts, while infinity mode keeps the oven running continuously during high-volume service periods.

• Automatic 4-Stage Liquid Self-Cleaning System: Integrated automated wash program with internal liquid delivery lines makes daily end-of-shift chamber sanitisation quick, safe, and effortless.

• Two-Stage Safety Door Opening: Two-step door handle latch allows trapped steam and hot air to vent safely before the door opens fully, protecting kitchen staff from thermal burns.

• Multi-Sensing Core Temperature Probe Included: Standard internal needle probe measures central core temperature for precise roast management and food safety compliance.

• Twin Glass Cool-Touch Viewing Door: Double-glazed glass door keeps exterior door temperatures low, reducing ambient kitchen heat radiation and saving energy.

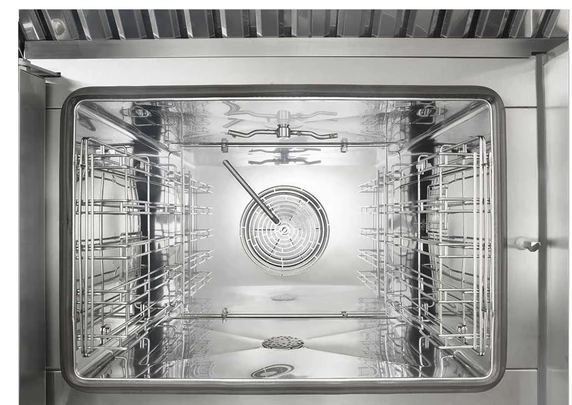

• Italian Build Quality & Stainless Steel Construction: Full stainless steel cooking chamber with removable coved tray supports for rapid wiping and long-term durability in harsh kitchen environments.

• 1-Year Commercial Parts and Labour Warranty: Backed by a 1-Year Commercial Warranty covering parts and labour.

Technical Specifications

Electrical & Water Plumbing Requirement: The Tecnodom TDC-5VH draws 6.45 kW and requires a dedicated hardwired 415V 3-phase electrical connection (3N) installed by a licensed commercial electrician, alongside filtered water supply lines and high-temperature drainage.

Delivery & Freight Notice: Commercial heavy equipment requires dedicated tail-lift freight handling. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Maintenance Guidelines

1. Setup & Pre-Heating: Select your target cooking mode or preset program via the digital control panel. Set your pre-heat temperature (up to 280°C) and allow the chamber to reach thermal equilibrium before loading trays.

2. Loading & Core Probing: Slide 1/1 GN or 600 x 400mm trays onto the chromed side supports. When cooking roasts or large proteins, insert the multi-sensor core probe into the geometric centre of the food item to utilize probe-terminated or Delta-T cooking modes.

3. Daily Hygiene & Wash Cycles: At the end of trading shifts, allow the oven chamber to cool to the automated wash prompt temperature. Engage the automatic 4-stage liquid self-cleaning cycle to wash and rinse the internal stainless steel chamber automatically.

Frequently Asked Questions

1. Can the Tecnodom TDC-5VH hold both Gastronorm and bakery trays?

Yes. The internal side racks are uniquely configured to accommodate both standard 1/1 GN commercial pans and 600 mm x 400 mm European bakery trays, providing versatility for venues that handle both food prep and pastry baking.

2. What electrical connection does the Tecnodom TDC-5VH require?

The oven draws 6.45 kW of power and requires a hardwired 415V 3-phase electrical connection (3N) installed by a certified commercial electrician.

3. How does the two-stage safety door release work?

When opening the oven door, turning the handle releases the door seal partially to vent built-up steam and hot air safely upwards before opening fully, preventing accidental steam burns to kitchen operators.

4. Are Gastronorm pans or bakery trays included with the oven?

No. Gastronorm pans and 600 x 400mm bakery trays are sold separately, allowing operators to choose the exact pan depths and tray types required for their menu.

5. What warranty is included with the Tecnodom TDC-5VH?

This commercial combi oven comes standard with a 1-Year Parts and Labour Commercial Warranty.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
