The iM spiral dough mixers enable medium and large volumes of dough to be mixed in a short time, guaranteeing perfect homogeneity and oxygenation.
All models guarantee a constant dough temperature during kneading, from the beginning to the end, eliminating therefore the risk of eventual overheating.
The iM44 has a switch-off timer, castors and safety device, necessary for maximum reliability for users.
Ideal for pizzerias and bakeries.
Key Features:
- Made In Italy
- Single speed – fixed bowl
- Chain driven
- Easy to use controls – with stop timer
- On full rotation castors (2 with brakes)
- Spiral, basin, dough breaker and safety grill in stainless steel
- Working timer
- The spiral’s shape ensures low and constant dough temperature
- Safety device – stops working when safety grill is lifted
Operation:
- Dough homogenity and oxygenation by the combined rotating movement of the utensil and basin.
- The shape of the spiral assures a low and constant temperature of dough during the working.
- Possibility to mix maximum 44 kg in a few minutes.
Standard Equipment:
- Spiral
- Basin
- Dough-breaker
- Rotating wheels
- Timer
External Construction:
- Structure in powder painted stainless steel.
- Spiral, basin, dough-breaker and safety grille in stainless steel.
- Thick frame to avoid vibrations in every working phase.
- Push-button panel on the right side.
- Machinery on rotating wheels.
Internal Construction:
- Motorisation with bath oil motoreducer.
- Chain drive.
- Rotating transmission parts are assembled on self lubricating ball bearings.
- Electrical equipment with low-voltage auxiliary circuit.
- Safety device for grill.
Specifications:
Model: iM44
Max Flour Capacity (Kg): 25kg flour
Max Dough Capacity (Kg): 44kg dough
Bowl Volume: 50 L
Bowl Dimensions mm
Int. Ø x height: 500 x 270
Spiral Diameter: 24 mm

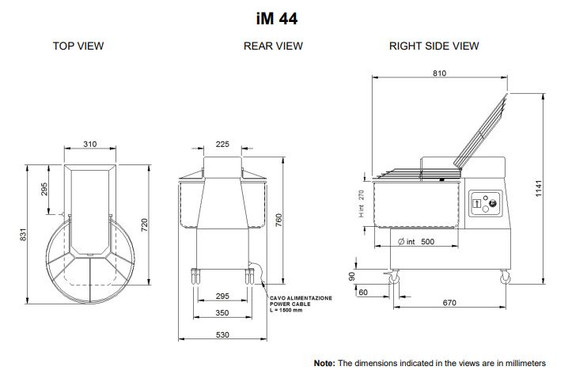

External Dimensions: 530mm W x 831 D x 760 H
Weight (Kg): 115
Power: 3 Phase, 400V, 1.5kW, 4A
Warranty: 12-month (1 year) parts and labour manufacturer warranty
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
