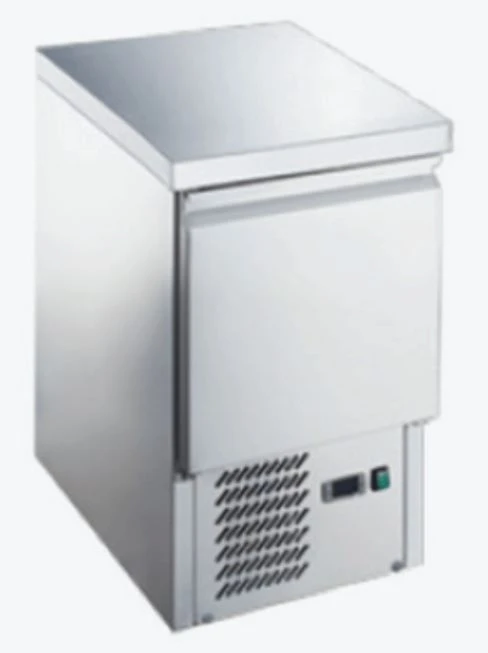

FED-X XGNS450B Compact Workbench Fridge 109L | 6-Star GEMS 10A

[GLOBAL_MSG]

The FED-X XGNS450B Compact Stainless Steel Underbench Commercial Workbench Fridge (435mm Wide, 109L Capacity) is an energy-efficient undercounter refrigeration unit engineered specifically for Australian espresso bars, compact cafe cooklines, commercial kitchen prep benches, cocktail bars, and food truck galleys. Measuring an ultra-slim 435 mm Wide x 700 mm Deep x 897 mm High and weighing just 43 kg, this single-bay commercial refrigerator delivers 109 litres of gross capacity (90 litres net usable volume) designed to slip neatly under standard 900mm commercial worktables. Utilizing hybrid fan-assisted static cooling, the XGNS450B circulates chilled air continuously while preserving the natural internal humidity needed to stop fresh garnishes, prepped produce, and dairy from drying out. Achieving an Australian 6-Star GEMS energy efficiency rating consuming only 1.733 kWh/24h with official certified 4M1 food-safe compliance, this compact commercial fridge features a durable stainless steel interior and exterior, heavy-duty Fulterer drawer slide components, rounded internal coved corners, and smooth-rolling castors with front locking brakes on an economical 120W draw via a standard Australian 10A plug.

Why Australian commercial cafes, bars, and compact kitchen operations choose the FED-X XGNS450B:

• Australian 6-Star GEMS energy rating (1.733 kWh/24h) — high-efficiency thermal performance slashes ongoing commercial electricity bills while adhering to strict Australian Greenhouse and Energy Minimum Standards (GEMS).

• Certified 4M1 food-safe compliance — rigorously tested to maintain consistent core food temperatures between +2°C and +8°C, satisfying mandatory requirements under Australian Food Safety Standard 3.2.2.

• Hybrid fan-assisted static cooling — combines forced-air convection circulation for rapid temperature pull-down after frequent drawer openings with the high-humidity preservation of a static cold-wall system to prevent delicate prepped foods and garnishes from dehydrating.

• Ultra-compact 435mm slimline profile — delivers 109 litres of chilled storage within an ultra-narrow 435mm footprint, maximizing refrigeration capacity in tight front-of-house espresso bars and restricted back-of-house cooklines.

• Heavy-duty Fulterer drawer runners — fitted with premium industrial Fulterer drawer slide components to ensure smooth, fatigue-free gliding and long-term durability under continuous heavy commercial kitchen usage.

• Commercial food-grade stainless steel construction — heavy-gauge stainless steel interior and exterior panels resist kitchen impact, grease, and acidic splashes while maintaining a professional appearance.

• Hygienic coved internal corners — seamless curved internal corners eliminate hard-to-clean crevices and food traps, speeding up daily sanitisation protocols.

• Pre-fitted mobility castors with front locking brakes — heavy-duty universal castors allow kitchen staff to roll the unit out effortlessly for floor sanitisation, with front-wheel brakes to keep the cabinet anchored securely during service.

• Field-replaceable magnetic seals — durable magnetic gaskets provide an airtight thermal seal to prevent ambient heat ingress and can be clipped out and replaced without tools.

• Intuitive digital temperature controller — microprocessor-driven digital interface provides clear external LED temperature readouts and precise set-point regulation from +2°C to +8°C.

• Standard 10A plug-and-play installation — ultra-low 120W power consumption operates on standard Australian single-phase 240V mains power with a factory-fitted 10 Amp plug.

• Extended 4-year warranty protection — backed by a standard Australian 2-Year parts and labour commercial warranty, extendable to an additional 2-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

Operating, Care & Preventative Maintenance

To maintain balanced humidity, rapid pull-down, and low daily power draw:

1. Pre-Chilled Stock Loading: The FED-X XGNS450B is engineered to hold pre-chilled fresh foods, dairy, sliced garnishes, and prepped ingredients between +2°C and +8°C. Always load the unit with pre-chilled stock to prevent internal temperature fluctuations and reduce compressor runtime.

2. Managing Static Frost Accumulation: Because fan-assisted static cooling retains high humidity levels to keep fresh produce from dehydrating, slight frost development on the internal cold-wall panels is normal. Periodically inspect the rear walls and perform an off-cycle defrost if frost thickness exceeds 3 mm to maintain heat-exchange efficiency.

3. Internal Airflow Circulation: Arrange stock inside the drawers without jamming items against the rear air circulation fan or overfilling the containers. Free internal airflow is necessary for the fan to distribute chilled air evenly across the cabinet.

4. Condenser Coil Cleaning (Every 2 to 4 Weeks): In tight cafe lines and bar setups, airborne dust, flour, and carpet lint can gather on the condenser coil. Regularly vacuum or brush down the condenser fins using a soft brush attachment to prevent compressor overheating and maintain the 6-Star GEMS efficiency rating.

5. Drawer Runner & Gasket Care: Inspect the Fulterer drawer runners monthly, clearing any dropped garnishes or crumbs from the slide tracks. Wipe down the magnetic perimeter gaskets weekly with warm water and a neutral detergent to ensure an airtight seal against warm kitchen air.

6. Stainless Steel Body Care: Clean the stainless steel exterior and coved internal cavity using a soft microfibre cloth dampened with warm water and an approved commercial food-safe sanitiser. Avoid bleach, chlorine-based chemicals, and abrasive scourers that can strip the protective finish of the stainless steel.

Electrical & Ventilation Installation Guidelines

The FED-X XGNS450B is engineered for quick plug-and-play installation under commercial benchtops:

1. Electrical Supply: Operates on standard Australian single-phase 240V mains power with an energy-efficient 120W draw. Supplied complete with a factory-fitted 10 Amp plug and lead, allowing direct connection to any standard 10A commercial wall socket without requiring dedicated 15A circuits.

2. Underbench Ventilation Clearances: Self-contained undercounter refrigerators discharge warm air through their mechanical housing. Maintain a minimum clearance of at least 50 mm at the rear and 30 mm on the sides to ensure heat dissipates safely from the condensing unit.

3. Kitchen Placement: Position the unit away from direct heat sources such as deep fryers, chargrills, dishwashers, and ovens. While climate-rated up to +38°C ambient room temperature, installing the unit away from radiant heat sources extends component lifespan and preserves low energy consumption.

4. Levelling & Wheel Locking: Once rolled into position under the workbench or bar counter, depress the front castor foot brakes to lock the 43 kg cabinet firmly in place and prevent movement when pulling open the drawers.

Freight & Delivery Notice

Standard commercial road freight delivery is available Australia-wide to commercial business addresses with level ground access or loading docks. For deliveries to residential or non-commercial addresses, please contact our friendly commercial sales team prior to ordering to obtain a customised courier quote and confirm delivery logistics.

Frequently Asked Questions

What is the operational difference between fan-assisted static cooling and full frost-free refrigeration?

Full frost-free commercial fridges use high-velocity evaporator fans and electric defrost heaters that blow dry air through the cabinet, which can dry out unwrapped vegetables, cheeses, cut garnishes, and meats. The fan-assisted static cooling in the XGNS450B combines internal fan circulation to eliminate hot spots with a static cooling wall that retains natural humidity. This keeps prepped ingredients fresh without drying them out, while using less power than full frost-free systems.

What does the 6-Star GEMS rating and 4M1 food-safe certification mean?

The Australian GEMS 6-Star rating indicates market-leading energy efficiency, consuming only 1.733 kWh per 24 hours to help lower utility overheads. The 4M1 food-safe classification certifies under commercial test protocols that the unit maintains internal storage temperatures steadily between +2°C and +8°C, complying with Australian Food Safety Standard 3.2.2.

What are the advantages of Fulterer heavy-duty drawer runners?

Fulterer is an industry-standard commercial hardware manufacturer known for high-load capacity and smooth extension runners. In high-turnover bars and kitchens where drawers are pulled open hundreds of times per service, these heavy-duty runners prevent sagging, jamming, and mechanical track failure under heavy weights of milk cartons, bottles, or sauces.

Does this compact workbench fridge need a plumbing drain?

No. The XGNS450B features an integrated condensate catchment and vaporization system. Defrost water collects in an internal tray located near the condensing unit, where heat generated by the compressor naturally evaporates the water. No external drain pipes, tundishes, or plumbing connections are required.

How do I activate the 4-year warranty coverage?

The FED-X XGNS450B comes standard with a 2-Year commercial parts and labour warranty. Venue operators who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 2-Year parts-only warranty extension, providing up to 4 years of comprehensive commercial protection across Australia.
