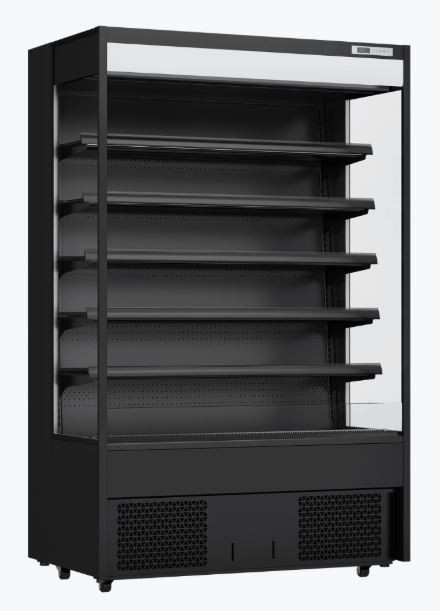

Thermaster OC-1220B Supermarket Open Beverage Display Chiller with Illuminated Canopy (540L)

[THERMASTER_MSG]

The Thermaster OC-1220B Commercial Supermarket Open Beverage Display Chiller is a high-impact, open-front vertical Grab-and-Go merchandising refrigerator engineered specifically for high-volume Australian supermarkets, grocery stores, convenience shops, petrol stations, cafes, and commercial dining venues. Featuring a 540-litre net volume, an expansive 2.32 m² display surface area, an illuminated top advertising canopy, and a space-saving small-footprint base design (1280mm W x 770mm D x 2067mm H), this open multideck chiller maximizes impulse beverage, dairy, and pre-packaged meal sales across busy retail floors.

Certified for M2 climate classification (+1°C to +7°C), the OC-1220B is powered by a high-efficiency Secop compressor utilizing eco-friendly R290 natural refrigerant and dynamic fan-forced evaporator cooling. Built with adjustable glass display shelves offering flexible tilt angles (0°, 7°, and 14°), bright top LED canopy lighting, and double-layered night blinds to drastically reduce energy consumption outside trading hours, it is multiplexable for seamless line-up assembly without internal mullions. Operating on a single-phase 240V power supply requiring a dedicated 15 Amp outlet (1390W), it is backed by up to 4 years of total warranty coverage upon online product registration.

Why Choose the Thermaster OC-1220B Open Beverage Display Chiller?

Choosing the Thermaster OC-1220B Multideck Open Chiller equips retail food and beverage operations with an attractive, accessible, and high-capacity Grab-and-Go display solution.

Key reasons commercial operators specify the Thermaster OC-1220B include:

• High-Impact Open Grab-and-Go Access: Open-front multideck layout eliminates door barriers, making it effortless for customers to browse and select chilled beverages, sandwiches, salads, and pre-packaged meals.

• Illuminated Top Canopy for Retail Branding: Integrated illuminated header box provides prominent branding or promotional advertising space to capture shopper attention from across the floor.

• Commercial Secop Compressor & R290 Gas: Driven by a premium Secop refrigeration compressor running on natural R290 hydrocarbon refrigerant for rapid cold recovery and long-term cooling reliability.

• Double-Layered Night Blinds for Energy Conservation: Includes two heavy-duty pull-down double-layered night blinds to cover the open display after hours, drastically reducing thermal loss when the venue is closed.

• Adjustable Glass Shelving with Tilt Angles (0° / 7° / 14°): Multi-tier adjustable glass shelves offer flexible shelf angles (0°, 7°, and 14°) to customize gravity-feed display orientation for bottles, cans, and fresh food containers.

• Compact Footprint with 2.32 m² Display Area: Small base design minimizes floor space usage while providing an expansive 2.32 m² product merchandising display area.

• Multiplexable Modular Line-Up Capability: Engineered without restrictive mullions so multiple units can be joined together in a continuous line-up run down supermarket aisles.

• Overhead LED Lighting: Top interior LED strip lighting casts clean, bright illumination over all merchandise tiers to highlight product colours and labels.

• Extended 2+2 Year Warranty Protection: Supported by 2 Years Parts & Labour plus an additional 2 Years Parts Only Warranty when registered online within 14 days of invoice date.

Technical Specifications

Warranty Registration Notice: To activate the extended 2 Years Parts Only warranty (total 4 years parts coverage), products must be registered online within 14 days of invoice date.

Electrical Outlet Requirement: This commercial multideck unit draws 1390W and requires a dedicated 15 Amp single-phase power outlet for safe installation.

Delivery & Freight Notice: Commercial heavy equipment requires dedicated tail-lift freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Cleaning Guidelines

1. Setup & Electrical Connection: Position the open chiller on a smooth, level floor. Ensure access to a dedicated 240V 15A wall socket and plug in the unit directly (do not use extension leads or power boards).

2. Stock Loading & Night Blind Usage: Allow the unit to run empty until reaching target temperature (+1°C to +7°C) before stocking items. Arrange bottles and packages on the adjustable glass shelves without blocking rear airflow vents. Pull down both double-layered night blinds at the end of daily trading hours to conserve energy.

3. Routine Cleaning & Maintenance: Regularly wipe down the glass shelves, internal walls, and Colorbond exterior with a warm water solution and mild food-safe sanitiser. Periodically check and clean condenser coils as outlined in the manufacturer manual to maintain peak cooling efficiency.

Frequently Asked Questions

1. What power outlet is required for the Thermaster OC-1220B?

The OC-1220B draws 1390W on single-phase 240V power and requires a dedicated 15 Amp power outlet (it will not plug into a standard 10A socket).

2. How do the double-layered night blinds save energy?

The included double-layered night blinds pull down over the front open display area outside of operating hours. This seals in cold air, preventing ambient warmth from entering the cabinet and significantly reducing compressor energy draw overnight.

3. What compressor powers the Thermaster OC-1220B?

The unit is engineered with a heavy-duty commercial Secop compressor running on eco-friendly R290 natural refrigerant for fast temperature recovery and consistent holding temperatures (+1°C to +7°C).

4. Can multiple OC-1220B units be joined together in a row?

Yes, the OC-1220B is multiplexable without internal mullions, allowing commercial venues and supermarkets to align multiple units side-by-side to create a continuous open display aisle.

5. How do I claim the extended 4-year warranty protection?

The open display chiller includes a standard 2-year commercial parts and labour warranty. Registering the product online within 14 days of invoice date unlocks an additional 2 years of parts-only cover (providing 4 years total parts protection).

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
