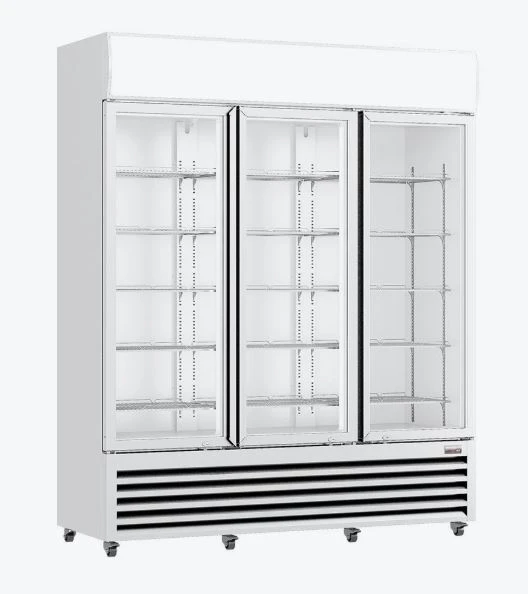

The Thermaster LG-1203P Commercial Three Glass Door Upright Beverage Display Fridge is a premium, high-capacity vertical merchandising refrigerator engineered specifically for high-volume Australian supermarkets, restaurants, cafes, convenience stores, petrol stations, and hospitality venues. Featuring an expansive 1065-litre gross volume (975L net capacity), three self-closing double-glazed glass hinged doors, and a crisp white powder-coated Colorbond finish, this three-door commercial display fridge keeps beverages, juices, milk, and pre-packaged foods chilled to optimal serving temperatures (+2°C to +8°C).
Designed to deliver maximum product visual impact and rapid cold-air recovery, the LG-1203P is equipped with a high-performance Embraco compressor, fan-forced evaporator cooling system, and an illuminated top canopy advertising lightbox with an independent on/off switch. Featuring a 5-Star GEMS Energy Rating running on eco-friendly R290 natural refrigerant, it includes 12 adjustable heavy-duty display wire shelves, vertical interior LED lighting, digital temperature control, automatic defrosting with a self-evaporating condensate tray, and heavy-duty lockable castors. Operating on a standard single-phase 10 Amp power supply (555W), it is backed by up to 4 years of total warranty coverage upon online registration.
Why Choose the Thermaster LG-1203P Three Glass Door Display Fridge?
Choosing the Thermaster LG-1203P Commercial Beverage Display Fridge equips high-traffic retail and catering venues with an expansive, energy-conscious, and visually striking refrigeration solution built to drive impulse sales.
Key reasons commercial operators specify the Thermaster LG-1203P include:
-
Massive 1065L Commercial Display Capacity: Broad 3-door cabinet layout (1600mm W x 610mm D x 1973mm H) with 12 adjustable wire shelf tiers provides expansive merchandising space for bottles, cans, cartons, and pre-packaged meals.
-
5-Star GEMS Energy Rating: Efficient refrigeration configuration using eco-friendly R290 natural refrigerant and CFC-free insulation consumes 7.06 kWh/24h for optimized daily operating running costs.
-
Commercial Embraco Compressor & Fan-Forced Cooling: Powered by a heavy-duty Embraco compressor and fan-forced evaporator system for fast temperature pull-down and uniform cooling between +2°C and +8°C.
-
Illuminated Top Canopy Lightbox: Backlit top advertising canopy lightbox features a separate on/off switch to highlight brand signage and attract customer attention across retail floors.
-
Double-Glazed Self-Closing Lockable Doors: Toughened double-glazed glass hinged doors incorporate smooth self-closing mechanisms to conserve cold air, complete with integrated key locks to secure stock after hours.
-
High Ambient Rating (+38°C / 65% RH): Commercial climate rating maintains reliable holding temperatures even during peak Australian summer trading conditions.
-
Automatic Defrost & Self-Evaporating Condensate System: Automated defrost cycle with an integrated self-evaporating drip tray eliminates manual water tray emptying.
-
Durable White Colorbond Cabinet: Clean white powder-coated Colorbond exterior with a durable internal liner offers bright merchandising presentation and easy sanitisation.
-
Standard 10A Plug-and-Play Setup: Running on single-phase 240V power (555W), it connects directly to any standard Australian 10 Amp wall outlet.
-
Extended 2+2 Year Warranty Protection: Backed by 2 Years Parts & Labour plus an additional 2 Years Parts Only Warranty when registered online within 14 days of invoice date.
Technical Specifications
| Feature |
Specification Details |
| Brand & Model |
Thermaster LG-1203P |
| Product Type |
Commercial Upright Three Glass Door Beverage Display Fridge |
| Capacity |
Gross Volume: 1065L | Net Volume: 975L |
| GEMS Energy Rating |
5 Stars (7.06 kWh / 24h Total Energy Consumption) |
| Dimensions (WxDxH) |
1600 mm W x 610 mm D x 1973 mm H |
| Temperature Set Range |
+2°C to +8°C |
| Max Ambient Rating |
Rated for up to +38°C Ambient / 65% Relative Humidity |
| Door Configuration |
3 x Double-Glazed Hinged Glass Doors (Self-Closing with Key Locks) |
| Cooling & Defrost System |
Fan-Forced Evaporator Cooling | Embraco Compressor | Auto Defrost |
| Refrigerant Gas |
R290 Natural Hydrocarbon Refrigerant (CFC-Free Insulation) |
| Cabinet Construction |
White Powder-Coated Colorbond Exterior | Illuminated Top Canopy Lightbox |
| Lighting System |
Vertical Interior LED Lighting + Top Lightbox with Independent Switch |
| Shelving Included |
12 x Adjustable Heavy-Duty Wire Shelves |
| Mobility Assembly |
Heavy-Duty Castors Included (2 Wheels with Locking Brakes) |
| Net Weight |
157.0 kg |
| Power Supply |
240V / 50Hz / Single Phase (555W / Standard AU 10A Plug) |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (Registration Required) |
Warranty Registration Notice: To activate the extended 2 Years Parts Only warranty (total 4 years parts coverage), products must be registered online within 14 days of invoice date.
Delivery & Freight Notice: Commercial heavy equipment requires dedicated tail-lift freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Setup & Initial Placement: Position the display fridge on a flat, level floor and lock the castor brakes. Ensure adequate clearance around the top canopy and rear for proper air circulation. Plug into a dedicated 240V 10A wall socket and allow the cabinet to pull down to target temperature (+2°C to +8°C) before loading stock.
-
Stock Loading & Shelf Adjustment: Adjust the 12 heavy-duty wire shelf tiers to accommodate bottle and can heights. Distribute pre-chilled beverages evenly across shelves without blocking internal rear airflow vents.
-
End-of-Shift Sanitisation: Turn off internal display lighting at close using the dedicated switch. Periodically wipe down the white Colorbond exterior and interior walls with a soft damp cloth and mild food-safe sanitiser. Clean magnetic door gaskets regularly to maintain an airtight thermal seal, and engage key locks overnight.
Frequently Asked Questions
1. What is the main difference between the Thermaster LG-1203P and LG-1203BP?
The LG-1203P features a clean white powder-coated Colorbond finish, whereas the LG-1203BP comes in a black powder-coated Colorbond finish. Both share the exact same internal 1065L gross capacity, 5-Star GEMS rating, and Embraco cooling system.
2. What electrical supply does the Thermaster LG-1203P display fridge require?
The LG-1203P draws 555W on single-phase 240V power and plugs directly into a standard Australian 10 Amp wall outlet.
3. What is the GEMS energy rating for this three-door display fridge?
The Thermaster LG-1203P carries a 5-Star GEMS Energy Rating, consuming 7.06 kWh/24h using eco-friendly R290 natural refrigerant gas.
4. Can the top canopy lightbox be controlled separately from cabinet cooling?
Yes, the illuminated top advertising canopy lightbox features its own independent on/off switch, allowing operators to turn off canopy lighting without interrupting internal refrigeration.
5. What warranty coverage comes with the Thermaster LG-1203P?
The display fridge includes a standard 2-year commercial parts and labour warranty. Registering the product online within 14 days of invoice unlocks an additional 2 years of parts-only protection (giving 4 years total parts coverage).
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
