The Thermaster LG-1203BP Commercial Three Glass Door Upright Beverage Display Fridge is a premium, high-capacity vertical merchandising refrigerator engineered specifically for high-volume Australian supermarkets, restaurants, cafes, convenience stores, petrol stations, and hospitality venues. Featuring an expansive 1065-litre gross volume (975L net capacity), three self-closing double-glazed glass hinged doors, and a sleek black powder-coated Colorbond exterior finish, this three-door commercial display fridge keeps beverages, juices, milk, and pre-packaged foods chilled to optimal serving temperatures (+2°C to +8°C).
Designed to deliver maximum product visual impact and rapid cold-air recovery, the LG-1203BP is equipped with a high-performance Embraco compressor, fan-forced evaporator cooling system, and an illuminated top canopy advertising lightbox with an independent on/off switch. Featuring a 5-Star GEMS Energy Rating running on eco-friendly R290 natural refrigerant, it includes 12 adjustable heavy-duty display wire shelves, vertical interior LED strip lighting, digital temperature control, automatic defrosting with a self-evaporating condensate tray, and heavy-duty lockable castors. Operating on a standard single-phase 10 Amp power supply (555W), it is backed by up to 4 years of total warranty coverage upon online registration.
Why Choose the Thermaster LG-1203BP Three Glass Door Display Fridge?
Choosing the Thermaster LG-1203BP Commercial Beverage Display Fridge equips high-traffic retail and catering venues with an expansive, energy-conscious, and visually striking refrigeration solution built to drive impulse sales.
Key reasons commercial operators specify the Thermaster LG-1203BP include:
-
Massive 1065L Commercial Display Capacity: Broad 3-door cabinet layout (1600mm W x 610mm D x 1973mm H) with 12 adjustable wire shelf tiers provides expansive merchandising space for bottles, cans, cartons, and pre-packaged meals.
-
5-Star GEMS Energy Rating: Efficient refrigeration configuration using eco-friendly R290 natural refrigerant and CFC-free insulation consumes 7.06 kWh/24h for optimized daily operating running costs.
-
Commercial Embraco Compressor & Fan-Forced Cooling: Powered by a heavy-duty Embraco compressor and fan-forced evaporator system for fast temperature pull-down and uniform cooling between +2°C and +8°C.
-
Illuminated Top Canopy Lightbox: Backlit top advertising canopy lightbox features a separate on/off switch to highlight brand signage and attract customer attention across retail floors.
-
Double-Glazed Self-Closing Lockable Doors: Toughened double-glazed glass hinged doors incorporate smooth self-closing mechanisms to conserve cold air, complete with integrated key locks to secure stock after hours.
-
High Ambient Rating (+38°C / 65% RH): Commercial climate rating maintains reliable holding temperatures even during peak Australian summer trading conditions.
-
Automatic Defrost & Self-Evaporating Condensate System: Automated defrost cycle with an integrated self-evaporating drip tray eliminates manual water tray emptying.
-
Durable Black Colorbond Cabinet: Tough black powder-coated Colorbond exterior with a clean internal liner offers high aesthetic appeal and easy sanitisation.
-
Standard 10A Plug-and-Play Setup: Running on single-phase 240V power (555W), it connects directly to any standard Australian 10 Amp wall outlet.
-
Extended 2+2 Year Warranty Protection: Backed by 2 Years Parts & Labour plus an additional 2 Years Parts Only Warranty when registered online within 14 days of invoice date.
Technical Specifications
| Feature |
Specification Details |
| Brand & Model |
Thermaster LG-1203BP |
| Product Type |
Commercial Upright Three Glass Door Beverage Display Fridge |
| Capacity |
Gross Volume: 1065L | Net Volume: 975L |
| GEMS Energy Rating |
5 Stars (7.06 kWh / 24h Total Energy Consumption) |
| Dimensions (WxDxH) |
1600 mm W x 610 mm D x 1973 mm H |
| Temperature Set Range |
+2°C to +8°C |
| Max Ambient Rating |
Rated for up to +38°C Ambient / 65% Relative Humidity |
| Door Configuration |
3 x Double-Glazed Hinged Glass Doors (Self-Closing with Key Locks) |
| Cooling & Defrost System |
Fan-Forced Evaporator Cooling | Embraco Compressor | Auto Defrost |
| Refrigerant Gas |
R290 Natural Hydrocarbon Refrigerant (CFC-Free Insulation) |
| Cabinet Construction |
Black Powder-Coated Colorbond Exterior | Illuminated Top Canopy Lightbox |
| Lighting System |
Vertical Interior LED Strip Lighting + Top Lightbox with Independent Switch |
| Shelving Included |
12 x Adjustable Heavy-Duty Wire Shelves |
| Mobility Assembly |
Heavy-Duty Castors Included (2 Wheels with Locking Brakes) |
| Net Weight |
157.0 kg |
| Power Supply |
240V / 50Hz / Single Phase (555W / Standard AU 10A Plug) |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (Registration Required) |
Warranty Registration Notice: To activate the extended 2 Years Parts Only warranty (total 4 years parts coverage), products must be registered online within 14 days of invoice date.
Delivery & Freight Notice: Commercial heavy equipment requires dedicated tail-lift freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Setup & Initial Placement: Position the display fridge on a flat, level floor and lock the castor brakes. Ensure adequate clearance around the top canopy and rear for proper air circulation. Plug into a dedicated 240V 10A wall socket and allow the cabinet to pull down to target temperature (+2°C to +8°C) before loading stock.
-

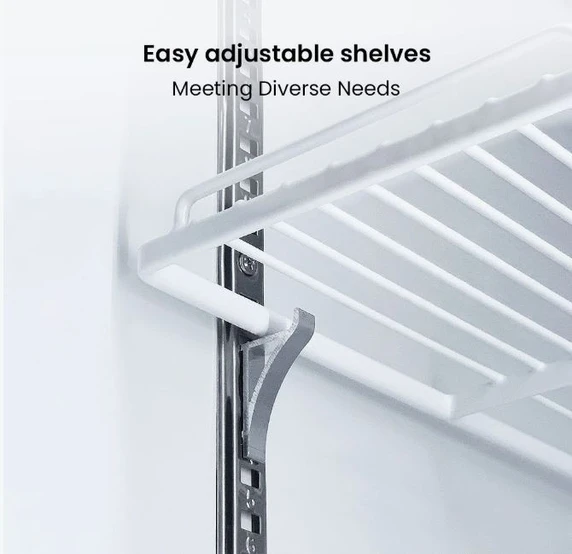

Stock Loading & Shelf Adjustment: Adjust the 12 heavy-duty wire shelf tiers to accommodate bottle and can heights. Distribute pre-chilled beverages evenly across shelves without blocking internal rear airflow vents.
-
End-of-Shift Sanitisation: Turn off internal display lighting at close using the dedicated switch. Periodically wipe down the black Colorbond exterior and interior walls with a soft damp cloth and mild food-safe sanitiser. Clean magnetic door gaskets regularly to maintain an airtight thermal seal, and engage key locks overnight.
Frequently Asked Questions
1. What electrical supply does the Thermaster LG-1203BP display fridge require?
The LG-1203BP draws 555W on single-phase 240V power and plugs directly into a standard Australian 10 Amp wall outlet.
2. What is the GEMS energy rating for this three-door display fridge?
The Thermaster LG-1203BP carries a 5-Star GEMS Energy Rating, consuming 7.06 kWh/24h using eco-friendly R290 natural refrigerant gas.
3. Can the top canopy lightbox be controlled separately from cabinet cooling?
Yes, the illuminated top advertising canopy lightbox features its own independent on/off switch, allowing operators to turn off canopy lighting without interrupting internal refrigeration.
4. How many shelves are supplied with the Thermaster LG-1203BP?
The unit comes complete with 12 heavy-duty adjustable wire shelves (4 tiers per door section), offering flexible shelf positioning for various beverage container heights.
5. What warranty coverage comes with the Thermaster LG-1203BP?
The display fridge includes a standard 2-year commercial parts and labour warranty. Registering the product online within 14 days of invoice unlocks an additional 2 years of parts-only protection (giving 4 years total parts coverage).
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
