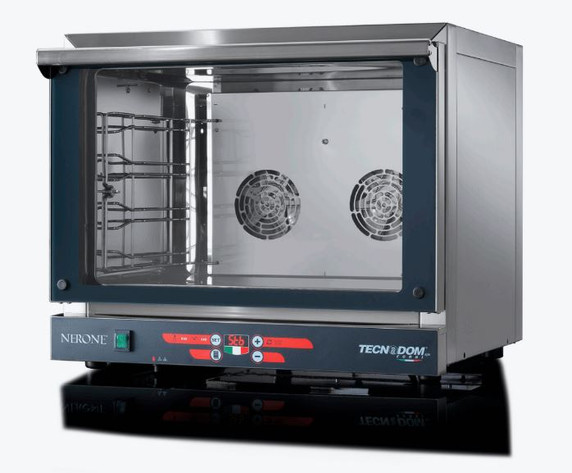

The Tecnodom Nerone EKO TDE-4CGND Digital Convection Oven is a European-engineered, Gastronorm-compatible (GN 1/1) commercial benchtop oven designed for Australian restaurants, catering operations, bakeries, hotel kitchens, and bistros. Purpose-built to handle standard GN 1/1 tray sizing, this high-performance oven features a digital control interface with a double display, 9 programmable recipe memory slots, and a precise temperature range of +50°C to +280°C.
Constructed with a heavy-duty stainless steel cooking chamber, rounded internal hygiene corners, low-emissivity (Low-E) tempered glass, and IPX3 water ingress protection, the TDE-4CGND is built for demanding daily service. Driven by a powerful dual-fan circulation system with automatic safety shut-off upon door opening, this 3.15kW oven holds four GN 1/1 trays (530x325mm) at an 84mm shelf distance and requires a dedicated 15 Amp electrical connection.
Why Choose the Tecnodom Nerone EKO TDE-4CGND GN 1/1 Convection Oven?
Choosing the Tecnodom Nerone EKO TDE-4CGND Digital Oven equips commercial kitchens with a versatile, high-capacity, and energy-efficient baking and roasting station built around international Gastronorm standards.
Key reasons commercial operators specify the Tecnodom TDE-4CGND include:
-
Full GN 1/1 Gastronorm Compatibility: Accommodates standard 530x325mm GN 1/1 pans and trays, integrating seamlessly into commercial food prep and service lines.
-
Intuitive Digital Interface & 9-Recipe Memory: Easily store and recall up to 9 custom cooking programs for consistent culinary results across shift changes.
-
Powerful Dual-Fan Circulation System: Twin internal fans drive uniform heat and airflow throughout the 560x420x370mm chamber, eliminating cold spots.
-
Premium European Build Quality: Engineered to strict European standards, featuring high-resistance door hinges, an interlocking gasket fixing system, and an IPX3 water protection rating.
-
Generous 4-Tray Capacity: Includes 1 solid tray and 3 wire racks set at an expansive 84mm tray pitch to accommodate larger roasts and tall baked goods.
-
Energy-Saving Low-E Tempered Glass Door: Low-emissivity glass reflects radiant heat back into the cavity, keeping outer door temperatures safer while improving energy efficiency.
-
Automatic Fan Safety Cut-Off: Fans automatically pause when the door is opened, protecting kitchen staff from hot air surges.
-
Easy-Clean Stainless Steel Cavity: Seamless stainless steel chamber with rounded internal corners and non-slip feet ensures quick, compliant end-of-shift sanitisation.
Technical Specifications
| Feature |
Specification |
| Brand / Series |
Tecnodom / Nerone EKO Digital Series |
| Model Number |
TDE-4CGND |
| Product Type |
Commercial Digital Benchtop Electric Convection Oven (GN 1/1) |
| Tray Compatibility |
4 x GN 1/1 Trays / Pans (530 x 325 mm) |
| Included Accessories |
1 x Solid Aluminium Tray & 3 x Stainless Wire Racks |
| Tray Spacing |
84 mm Distance Between Trays |
| Control System |
Digital Control Panel with Double Display & 9 Recipe Memory |
| Temperature Range |
+50°C to +280°C Adjustable Thermostat |
| Timer Range |
60-Minute Digital Countdown Timer or Continuous Infinite Mode |
| Air Circulation System |
Dual Fan Motors with Automatic Door Open Cut-Off |
| Door & Glass Assembly |
Low-E Tempered Glass with Heavy-Duty High Resistance Hinge |
| Water Protection Rating |
IPX3 Standard Compliant |
| Internal Lighting |
Bright Halogen Chamber Lamp |
| Chamber Construction |
Stainless Steel Chamber with Rounded Hygiene Corners |
| Internal Dimensions (WxDxH) |
560 x 420 x 370 mm |
| External Dimensions (WxDxH) |
686 x 680 x 580 mm |
| Net Weight |
37.0 kg |
| Electrical Supply |
240V / 50Hz / Single Phase (3.15kW / 15A Plug Required) |
| Warranty |
1 Year Commercial Parts & Labour Warranty |
Electrical Supply Notice: This unit draws 3.15kW and requires a dedicated single-phase 15 Amp electrical power point (it is not compatible with standard 10 Amp wall sockets).
Delivery & Freight Notice: Shipping rates vary across Australia depending on your location. Please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Operating & Cleaning Guidelines
-
Program Selection & Preheating: Power up the digital controller. Select a pre-saved recipe number (1–9) or manually enter your target temperature (up to +280°C) and time setting. Allow the dual fans to bring the chamber to operating temperature.
-
Loading & Baking: Open the tempered glass door (which automatically pauses fan rotation) and slide in your GN 1/1 pans or wire racks onto the 84mm pitch runners. Close the door firmly to resume cooking.
-
End-of-Shift Sanitisation: Allow the unit to cool completely. Remove wire racks and trays for washing in warm, food-safe soapy water. Wipe down the smooth stainless steel chamber walls, rounded internal corners, and glass door with a non-abrasive damp cloth.
Frequently Asked Questions
What type of trays fit the Tecnodom Nerone EKO TDE-4CGND Oven?
The TDE-4CGND is designed specifically for standard GN 1/1 Gastronorm pans and trays (530x325mm). It accommodates 4 trays with an 84mm pitch between levels and comes supplied with 1 solid tray and 3 wire racks.
Is the Tecnodom Nerone EKO TDE-4CGND easy to clean?
Yes. The cooking chamber is constructed from food-grade stainless steel with smooth, rounded corners and an interlocking door gasket, making end-of-shift wipe-downs fast and straightforward.
What electrical connection is required for this oven?
The TDE-4CGND draws 3.15kW on 240V single-phase power and requires a dedicated 15 Amp electrical outlet.
How does the oven protect kitchen staff during operation?
The unit complies with IPX3 water protection standards and features an automatic fan cut-off switch that stops fan rotation as soon as the door is opened, preventing hot air blasts.
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
