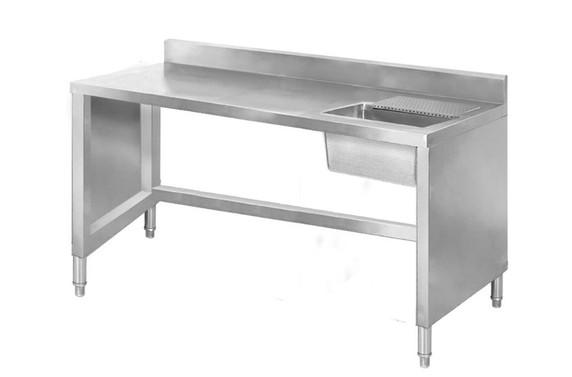

The Modular Systems SSB6-1400R Stainless Steel Sink Workbench is a heavy-duty, commercial prep-and-wash bench station engineered specifically for Australian commercial kitchens, cafes, bakeries, restaurants, bars, and catering facilities. Sized at 1,400 mm Wide x 600 mm Deep x 900 mm High, this 600-series modular sink bench features a integrated single wash bowl on the right-hand side, providing ample dry prep and drying space on the left benchtop section while optimizing kitchen workflow.
Constructed from premium 1.2 mm thick SUS304 (18/8) grade stainless steel, the benchtop features a 15 mm wet edge rim to contain spills, a ripple prep surface, and a waterproof 15 mm XPS board lining backed with a stainless steel panel and 'U' channel stiffeners. The fully welded right-hand bowl (410 mm W x 310 mm D x 200 mm H) includes a standard 90 mm waste drain hole for commercial basket wastes or food waste disposal units. Complete with a 150 mm high fully enclosed bevelled splashback, 42 mm tubular stainless steel legs, height-adjustable polished disc feet, and a heavy-duty stainless steel pot undershelf (or optional free leg brace), it arrives flat-packed for easy transport and fast on-site assembly, supported by a 2-Year Parts Warranty.
Why Choose the Modular Systems SSB6-1400R Stainless Steel Sink Workbench?
Selecting the Modular Systems SSB6-1400R Sink Bench equips commercial venue operators with an ultra-hygienic, robust, and easy-to-clean preparation and dishwashing station designed to comply with strict Australian food safety regulations.
Key advantages of the Modular Systems SSB6-1400R include:
-
Heavy-Duty 1.2mm SUS304 Stainless Steel Construction: Premium 304-grade (18/8 nickel-chrome) stainless steel top offers maximum corrosion resistance against water, detergents, and food acids.
-
Integrated Right-Hand Wash Bowl: Fully welded and polished sink bowl (410 mm W x 310 mm D x 200 mm H) positioned on the right-hand side, leaving a expansive 1400 mm benchtop prep line for food prep or dish drying.
-
15mm Wet Edge Spillage Rim: Engineered with a raised 15 mm wet edge perimeter to keep water and liquids contained on the bench surface, keeping kitchen floors dry and safe.
-
Reinforced Benchtop Substrate: Underlined with a 15 mm waterproof XPS board, a stainless steel panel, and heavy-duty 1.2 mm stainless steel 'U' channel stiffeners to resist impact and prevent bench flex.
-
150mm Enclosed Stainless Steel Splashback: Features a 150 mm high x 30 mm thick bevelled splashback with a fully enclosed stainless steel backing (no exposed galvanised steel or gaps) to protect kitchen walls from water damage.
-
Heavy-Duty Pot Undershelf or Free Leg Brace: Includes a 1.2 mm stainless steel pot shelf constructed with 38 mm outer frame tubes and 25 mm inner tubes at 40 mm spacings—or choose an optional free leg brace upon ordering.
-
Adjustable Legs & Polished Disc Feet: Four sturdy 42 mm diameter stainless steel legs fitted with fully adjustable polished disc feet for precise bench leveling on uneven kitchen floors.
-
Flat-Packed for Fast Assembly: Delivered flat-packed with all necessary tools and clear instruction manuals for quick, straightforward on-site setup.
-
2-Year Commercial Warranty: Backed standard by a 2-Year Commercial Parts Warranty.
Technical Specifications
| Feature |
Specification Details |
| Brand & Range |
Modular Systems Series |
| Model Code |
SSB6-1400R (Right-Hand Sink Bowl) |
| Product Type |
Commercial Stainless Steel Sink Workbench with Splashback & Undershelf |
| Benchtop Material |
1.2 mm Thick SUS304 (18/8) Stainless Steel |
| Bowl Dimensions (WxDxH) |
410 mm W x 310 mm D x 200 mm H (Right-Hand Positioned) |
| Waste Drain Hole |
90 mm Ø Standard Waste Hole |
| Wet Edge & Surface |
15 mm Raised Wet Edge Rim | Ripple Prep Surface |
| Top Substrate Build |
Lined with 15 mm XPS Board, S/S Panel & S/S 'U' Channel Stiffeners |
| Splashback Specifications |
150 mm High x 30 mm Thick (Fully enclosed S/S backing & bevelled edge) |
| Undershelf Construction |
1.2 mm S/S Pot Shelf (38 mm Ø outer, 25 mm Ø inner tubes with 40 mm spacing) |
| Alternative Shelf Option |
Free Optional Leg Brace (Specify on order if required) |
| Legs & Feet |
4 x 42 mm Ø Stainless Steel Legs with Fully Adjustable Polished Disc Feet |
| Packaging & Assembly |
Supplied Flat-Packed (Includes tools and instruction manual) |
| Optional Extras |
Lockable Castor Kits |
| External Dimensions (WxDxH) |
1,400 mm W x 600 mm D x 900 mm H (Excludes 150 mm splashback height) |
| Warranty |
2-Year Commercial Parts Warranty |
Assembly & Placement Notice: Ensure the SSB6-1400R sink bench is assembled on a level surface and that the adjustable disc feet are rotated to eliminate wobble before connecting plumbing trap lines to the 90 mm waste drain.
Delivery & Freight Notice: Commercial kitchen stainless steel benching requires dedicated freight handling. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Care & Maintenance Guidelines
-
Assembly & Installation: Unpack components and follow the step-by-step instruction manual using the included tools. Position the bench against your designated wall and adjust the disc feet until the benchtop surface is completely level before connecting water supply and 90 mm waste plumbing.
-
Daily Hygiene & Cleaning: Wipe down stainless steel surfaces, sink bowl, and splashback daily with a soft microfibre cloth, warm water, and a mild commercial detergent or food-safe sanitiser.
-
Stainless Steel Preservation: Avoid using harsh chlorine bleach, caustic drain cleaners, or abrasive steel wool pads, as these can disrupt the protective passive layer of 304 stainless steel. Periodically buff with a commercial stainless steel cleaner to maintain its factory polish.
Frequently Asked Questions
1. What does the "R" in model code SSB6-1400R signify?
The "R" indicates that the fully welded 410 x 310 x 200 mm sink bowl is positioned on the right-hand side of the bench, leaving a continuous dry work surface on the left.
2. Can I order a leg brace instead of the bottom pot undershelf?
Yes. Modular Systems offers a free optional leg brace instead of the tube pot shelf. Please specify that you require the leg brace option when placing your order.
3. Is the splashback fully enclosed?
Yes. The 150 mm splashback features a fully enclosed 304-grade stainless steel backing with bevelled edges, preventing moisture, grease, and pests from accumulating behind the bench.
4. What size waste outlet does the sink bowl accept?
The bowl is manufactured with a standard 90 mm diameter drain hole, making it compatible with standard commercial basket waste strainers and scrap catchers.
5. What warranty covers the Modular Systems SSB6-1400R?
This commercial stainless steel sink bench comes backed standard by a 2-Year Commercial Parts Warranty.
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
