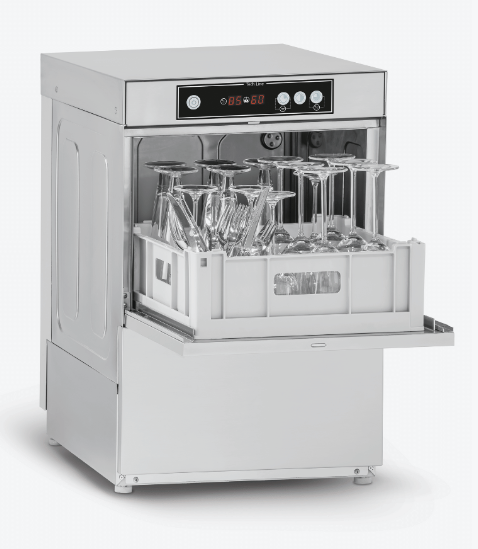

Maximise bar and café warewashing efficiency with the GE-400BDD Commercial Underbench Glasswasher & Dishwasher. Purpose-built for Australian hospitality venues, bars, cafés, pubs, and boutique restaurants, this compact 470mm W x 525mm D undercounter unit provides powerful cleaning performance where kitchen and bar space is at a premium.
Capable of processing up to 30 baskets per hour, the GE-400BDD features three electronic wash programmes (90, 120, and 180 seconds) plus an independent cold rinse cycle to instantly cool glassware for fast drink service. It comes fully equipped with a factory-fitted drain pump, detergent dispenser, rinse aid injector, and an anti-backflow valve. Featuring a Thermostop function for guaranteed thermal sanitisation (60°C wash / 85°C final rinse) and WaterMark certification, this 15-Amp unit ensures full compliance with local plumbing and food safety regulations.
Key Features & Specifications
-
Compact High-Output Design: Cleans up to 30 racks/hour using a 400mm × 400mm basket size with a 270mm door clearance height for glassware and small plates.
-
3 Wash Cycles + Cold Rinse: Includes 90, 120, and 180-second wash cycles plus a dedicated independent cold rinse programme to cool glasses for immediate drink preparation.
-
Guaranteed Thermal Sanitisation: Thermostop system locks the final rinse until the boiler achieves 85°C thermal sanitisation temperature (60°C wash cycle).
-
Fully Integrated Dosing & Drainage: Built-in detergent pump, rinse aid dispenser, and automatic drain pump for smooth underbench installation.
-
WaterMark Certified: Fully certified under Australian WaterMark standards with an integrated anti-backflow valve for complete plumbing code compliance.
-
Soft Start Protection: Gradual wash pump startup prevents thermal shock and glass breakage on delicate barware.
-
Complete Starter Accessories: Includes 2 × 400x400mm baskets, 1 × dish insert, and 1 × cutlery basket to begin operation immediately.
Detailed Technical Specifications
| Feature |
Specification |
| Product Model / SKU |
GE-400BDD |
| Product Type |
Commercial Compact Underbench Glasswasher / Dishwasher |
| Washing Capacity |
Up to 30 Baskets / Hour |
| Basket Dimensions |
400 mm × 400 mm |
| Door Clearance |
270 mm |
| Wash Cycles |
90 / 120 / 180 Seconds + Independent Cold Rinse Cycle |
| Operating Temperatures |
Wash: 60°C / Rinse (Sanitisation): 85°C |
| Tank & Boiler Capacities |
Wash Tank: 15.0 L (2.0 kW) / Boiler: 5.0 L (2.8 kW) |
| Water Consumption |
2.5 Litres per Rinse Cycle |
| Pumps & Dispensers |
Built-in Drain Pump, Detergent Pump & Rinse Aid Dispenser |
| Control Panel |
Electronic Control with Tank & Boiler Temperature Display |
| Safety Features |
Thermostop Function, Anti-Backflow Valve, Safety Thermostats |
| Certification |
WaterMark Certified Product |
| External Dimensions (W x D x H) |
470 mm × 525 mm × 720 mm |
| Net Weight |
41.0 kg |
| Electrical Power |
240V / 50Hz / 3.05 kW (Requires Dedicated 15A Outlet) |
| Warranty |
2 Years Parts and Labour Warranty |
Included Accessories: Comes standard with 2 × 400mm × 400mm baskets, 1 × dish rack insert, and 1 × cutlery holder.
Delivery Information: Please note that residential address deliveries require a custom freight quote. Kindly contact our friendly sales team prior to placing your order to arrange delivery to a residential address.
N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
