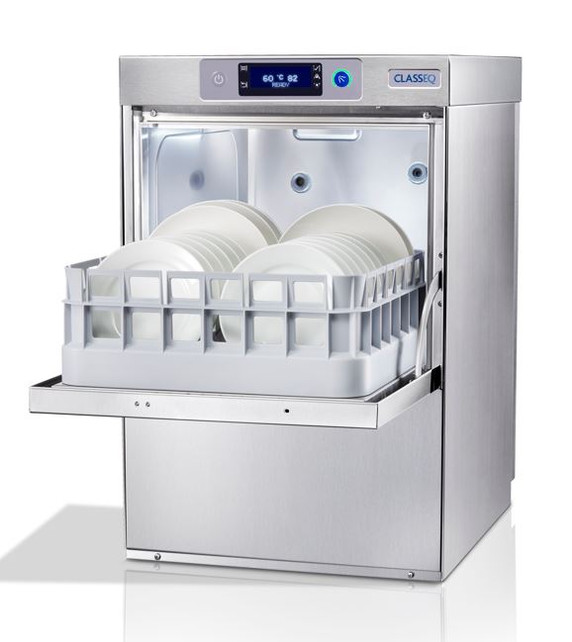

The new Classeq Undercounter range combine maximum efficiency, pure lines and the cleaning power to shine bright in the busiest kitchens and bars.
Simple Choice - One model level with all the features you need. Just choose the size, power and optional integrated water softener.
Simple Set Up - Commissioned on install as a glass or dishwasher in minutes.
Simple Use - Press on. Press wash. Watch the display for notifications and troubleshooting.
Simple Cleaning - Simple click in, click out wash arms, double filtration system, and moulded basket rails all aid simple cleaning.
Simple App - New bluetooth app for operators and service technicians. Access user guides, machine settings, monitor performance data and service information.
Simple Servicing - The repositioning of key parts make servicing and maintenance quicker. Reducing maintenance costs throughout the life of the machine.
Standard Features:
- Colour coded display
- Reduced rinse water consumption
- Deep clean mode and refresh cycle
- Optional audible alarm
- Energy saving standby mode
- Drain pump, rinse booster pump, detergent and rinse aid pumps
- Bluetooth connectivity
- Double skinned door and cabinet to reduce noise and limit heat loss
- Hygiene and service reminders
- Three power options: 15A, 30A Single Phase and 15A Three Phase

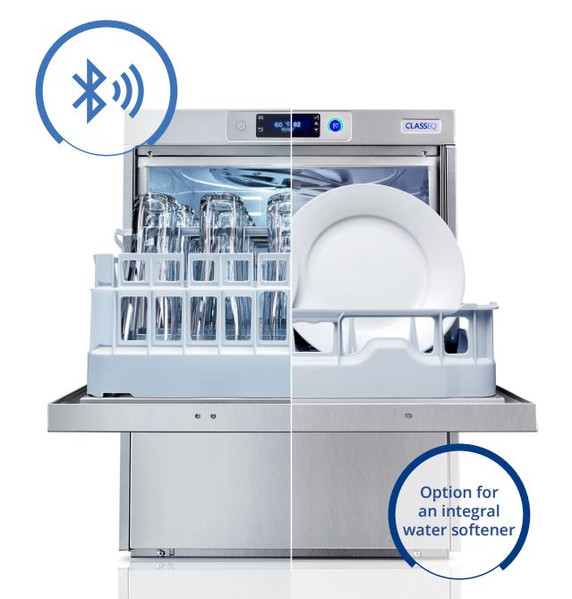

The C400 can be specified with an integral water softener, an essential addition when installed in medium or hard water areas.
Each C400 machine includes two 400 x 400 baskets: one for plates with a small cutlery holder and one for glasses with two inserts.
It's also supplied with a rack adapter to suit Australian bar racks (14 x 17").
Capacities and Performance:
Glasses per rack: 16
Plates per rack: 9
Wash programmes - Glass: 1.5 & 2 min. cycles
Wash programmes - Dish: 2,3 & 5 min. cycles
Theoretical max. racks per hour - Glass: 40
Theoretical max. racks per hour - Dish: 30
Wash tank capacity: 9.5 litres
Rinse tank capacity: 6.5 litres
Wash temperature: 60˚C
Rinse temperature - Glass: 70˚C
Rinse temperature - Dish: 82˚C
Water consumption per cycle: 2.75 litres
External Dimensions: 570mm D x 460 mm W x 750 mm H
Hydraulics Specification:
Water supply connection: G3/4” (3/4”BSP)
Required water pressure min/ max: 1-10 bar
Incoming water temperature min/ max: 4°C/55°C
Drain size: 40mm diam.
Maximum drain height (from machine base): 500 mm
Optional integrated water softener: Yes
Electrical Specifications:
15 Amp Plug - 1 Phase
Amps required 15 A (1 Phase)
Standard operating voltage: 220-240v/1N~/50Hz
Total connected load: 2.5 kW
30 Amp - 1 Phase
Amps required 30 A (1 Phase)
Standard operating voltage: 220-240v/1N~/50Hz
Total connected load: 6.5 kW
15 Amp Plug - 3 Phase
Amps required 15 A (3 Phase)
Standard operating voltage: 3800-415v/3N~/50Hz
Total connected load: 6.5 kW
Country of Origin: Britain
Warranty: 2 Years on Parts and Labour
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
