Gasmax PC150-6 V-Pan Natural Gas 6-Basket Commercial Pasta & Noodle Cooker (27L)

[GASMAX_MSG]

The Gasmax PC150-6 V-Pan Natural Gas Commercial Pasta and Noodle Cooker is a high-output, heavy-duty commercial boiling station engineered specifically for busy Australian Italian restaurants, Asian noodle bars, ramen shops, pasta bars, production kitchens, and catering venues. Sized at 401 mm Wide x 860 mm Deep x 1,293 mm High and weighing 78 kg, this compact floor-standing cooker features a high-capacity 27-litre food-grade 304 stainless steel water tank equipped with six stainless steel mesh baskets (Ø 125 mm x 132 mm) for continuous, simultaneous individual batch cooking.

Delivering a massive total heat rating of 150 MJ/h, the PC150-6 utilizes a high-efficiency V-pan heating configuration paired with a prompt-response thermostat and millivolt control valve for rapid temperature recovery during peak trading periods. Constructed with heavy-duty stainless steel front and side panels, an open-pot design for effortless cleaning, a front-positioned water inlet, a starch-skimming overflow system, and a 1/4-inch full-port drain valve, it connects via a 1/2-inch NPT rear Natural Gas fitting and stands on 6-inch adjustable stainless steel legs. It comes backed standard by a 2-Year Parts & Labour Warranty, plus an additional 2-Year Parts Only Warranty upon online product registration within 14 days of invoice.

Why Choose the Gasmax PC150-6 V-Pan Natural Gas Pasta & Noodle Cooker?

Selecting the Gasmax PC150-6 Commercial Pasta Cooker equips high-volume kitchens with a powerful, water-efficient boiling machine designed for rapid order turnarounds, precise batch timing, and simple end-of-shift maintenance.

Key benefits of the Gasmax PC150-6 include:

• High-Output 150 MJ/h Thermal Power: Powerful Natural Gas burners deliver 150 MJ/h of heating power to bring 27 litres of water to a rapid rolling boil quickly and maintain fast temperature recovery when cold pasta or noodles are introduced.

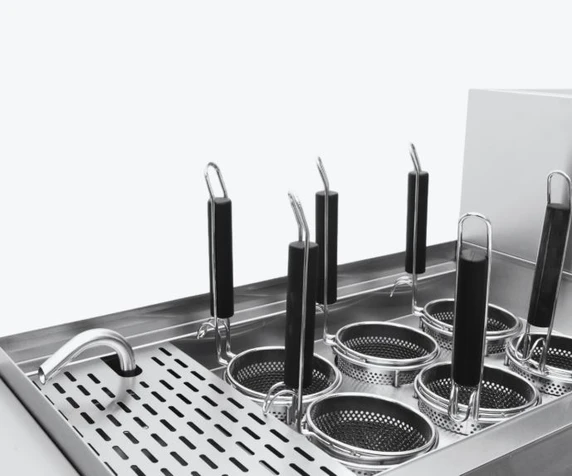

• Six Stainless Steel Baskets Included (Ø 125mm x 132mm): Supplied standard with six round stainless steel mesh baskets and a rear hanger plate, allowing chefs to boil and drain multiple customized noodle or pasta portions simultaneously.

• Food-Grade 304 Stainless Steel Tank (27L Capacity): Deep, corrosion-resistant 304-grade stainless steel open-pot tank holds 27 litres of water, built to withstand constant salt exposure and intense daily boiling cycles.

• Starch-Purifying Water Overflow System: Built-in surface water skim channel continuously removes excess floating starch and foam, keeping boiling water clean and extending water usability throughout service.

• Prompt-Response Thermostat & Millivolt Control Valve: Millivolt safety gas valve and sensitive thermostat ensure precise water temperature management without requiring external electrical connections.

• Front Water Inlet & 1/4" Full-Port Drain Valve: Features a convenient front-mounted water supply tap for easy tank filling and top-ups, alongside a large 1/4-inch full-port drain valve for rapid, blockage-free water drainage.

• Open-Pot Hygienic Design & Rear Basket Rail: Smooth open-tank interior eliminates hard-to-clean corners, while the rear stainless steel hanger rail allows baskets to rest above the water for quick oil or water dripping.

• Up to 4-Year Warranty Coverage: Supported standard by a 2-Year Parts & Labour Warranty, extendable by an additional 2 Years Parts Only when registered online within 14 days of invoice.

Technical Specifications

Gas Installation & Commissioning Notice: Under Australian law, all commercial gas equipment must be installed and commissioned by a qualified, licensed gas plumber in accordance with AS/NZS 5601 standards. Proof of licensed gas installation is required to validate manufacturer warranty coverage.

Freight & Delivery Notice: Commercial heavy floor-standing equipment requires dedicated freight handling. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Cleaning Guidelines

1. Setup & Commissioning: Ensure an authorised gas fitter connects the Natural Gas line (1/2" NPT), checks supply operating pressure, and completes official commissioning. Level the unit using the 6-inch adjustable stainless steel legs.

2. Filling & Boiling: Ensure the 1/4" drain valve is closed. Use the front-positioned water inlet tap to fill the 304 stainless steel tank to the marked water line (27 litres). Light the pilot and set the thermostat control. The 150 MJ/h burners will quickly bring the tank to a rolling boil.

3. Daily Hygiene & Starch Removal: During service, allow starch foam to flow over the starch-purifying overflow channel. At the end of service, turn off the gas supply, allow water to cool, open the 1/4" full-port drain valve, and drain the tank completely. Wipe down the open-pot 304 stainless steel interior, baskets, and hanger plate with a damp microfibre cloth and a mild food-safe commercial degreaser.

Frequently Asked Questions

1. Does the Gasmax PC150-6 require an electrical connection?

No. The Gasmax PC150-6 operates using a millivolt control valve system and a standing pilot light, generating its own low-voltage control power from the pilot flame, meaning no 240V power plug is required.

2. How does the starch overflow system work?

The cooker features an integrated water purifying overflow channel near the top of the tank. As water boils, excess starch, foam, and impurities rise to the top and skim off automatically into the drain channel, keeping the boiling water cleaner for longer.

3. What size baskets are included with the PC150-6?

The unit comes supplied standard with six round stainless steel mesh baskets measuring 125 mm in diameter by 132 mm deep, perfect for individual portions of pasta, ramen, udon, or dumplings.

4. Is the water tank made of high-grade stainless steel?

Yes. The 27-litre open-pot tank is manufactured from 304-grade stainless steel, offering superior protection against pitting and corrosion caused by salted cooking water.

5. What warranty covers the Gasmax PC150-6 pasta cooker?

The PC150-6 comes backed standard by a 2-Year Parts and Labour Warranty, which extends by an additional 2 Years for Parts Only when registered online within 14 days of invoice.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
