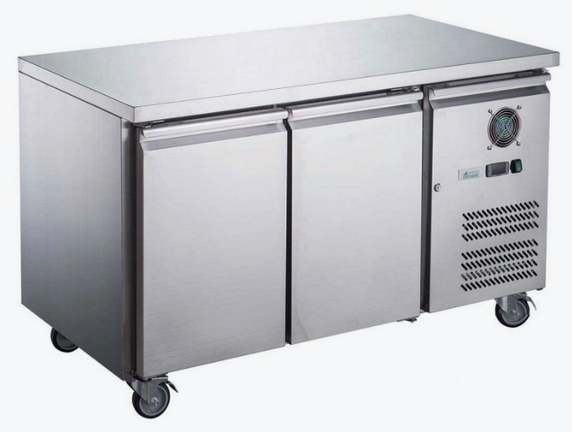

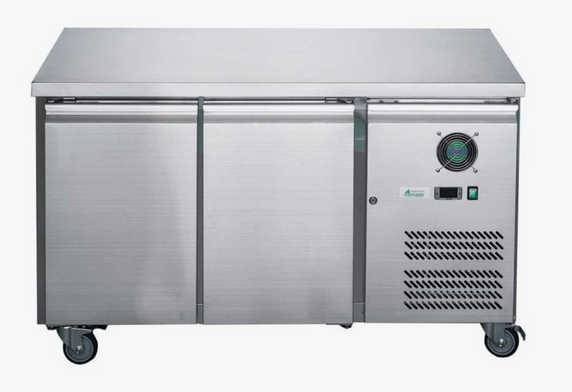

Optimise kitchen footprint and maintain strict sub-zero holding conditions with the FED-X XUB7F13S2V 282L 2 Solid Door Stainless Steel Underbench Commercial Storage Freezer. Designed for high-demand commercial kitchens, cafes, restaurants, bakeries, butcheries, and catering venues, this compact 1360mm-wide undercounter freezer provides reliable sub-zero storage directly beneath a heavy-duty stainless steel work surface.
Engineered with internal shelf supports that accommodate GN 1/1 Gastronorm pans, the XUB7F13S2V features a full stainless steel interior and exterior with coved internal corners for fast daily cleaning. Powered by top-tier European components—including an Embraco/Secop compressor, ebm-papst evaporator and condenser fans, 60mm CFC-free high-density insulation, and an intuitive Dixell digital controller—it delivers rapid temperature recovery and maintains precise freezing temperatures between -18°C and -22°C in ambient environments up to +38°C.
Key Benefits
-
Compact Underbench Sub-Zero Freezing (-18°C to -22°C): Delivers precise freezing performance for meats, seafood, ice creams, and prepped stocks directly at line workstations.
-
Gastronorm GN 1/1 Compatible Racking: Internal shelf supports fit 1x GN 1/1 shelf per door (supporting up to 40kg weight load per shelf), facilitating effortless pan swapping during service.
-
Space-Saving Wall-Flush Installation: Rear-vented airflow design allows the cabinet to sit directly flush against kitchen walls to maximize available floor space.
-
Premium European Refrigeration Components: Powered by a high-efficiency Embraco/Secop compressor, ebm-papst fan assembly, 60mm CFC-free insulation, and a Dixell digital user interface.
-

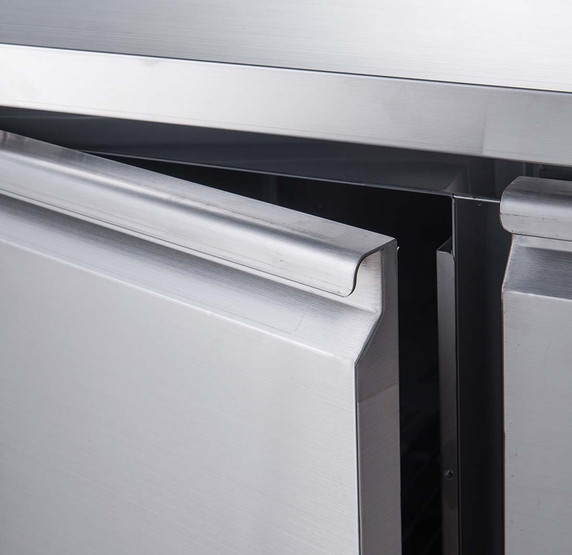

Self-Closing Solid Doors & Thermal Retention: Solid doors with heavy-duty magnetic door gaskets and thick foam body insulation preserve internal cold air and reduce compressor cycling.
-
Customisable Layout Options: Optional 2-drawer or 3-drawer modules are available in lieu of doors to suit specific kitchen workflow preferences.
-
Heavy-Duty Stainless Steel Construction: Stainless steel interior and exterior with rounded internal corners resist corrosion and enable quick, hygienic cleanup.
-
Plug & Play 10A Electrical Connection: Standard 520W / 3.2A power draw operates on a standard single-phase 240V 10A power outlet.
Technical Specifications
| Feature | Specification |
| Brand / Model | FED-X XUB7F13S2V |
| Gross / Net Volume | 282 Litres / 186 Litres |
| Form Factor | 2 Solid Door Underbench Commercial Storage Freezer |
| External Dimensions (mm) | 1360 (W) x 700 (D) x 850 (H) |
| Internal Dimensions (mm) | 799 (W) x 580 (D) x 564 (H) |
| Gastronorm Compatibility | Accepts GN 1/1 Pans per Shelf Tier |
| Temperature Set Range | -18°C to -22°C |
| Cooling Mechanism | Dynamic Fan-Forced Cooling (Auto Defrost) |
| Compressor / Controller | Embraco / Secop Compressor / Dixell Digital Controls |
| Fans | ebm-papst Evaporator & Condenser Fans |
| Power Supply / Electrical | 240V / 50Hz / 520W / 3.2A (Standard 10A Plug) |
| Total Energy Consumption | 7.81 kWh / 24h |
| Refrigerant Type | Eco-Friendly R290 |
| Insulation Thickness | 60 mm High-Density CFC & HFC Free |
| Shelving Configuration | 1 Adjustable Wire Shelf per Door (40kg loading capacity per shelf) |
| Ambient Operating Rating | Approved for +38°C Ambient (60% Relative Humidity) |
| Net Weight | 107.0 kg |
| Warranty | 2 Years Parts & Labour (+ 2 Years Parts Only upon registration within 14 days of invoice) |
Operational & Delivery Notes
-
Mobility & Positioning: Pre-installed with heavy-duty castors (including front wheel brakes) for effortless movement and routine floor cleaning underneath.
-
Residential Delivery: Delivery to non-commercial or residential addresses requires a customised freight calculation. Please contact our commercial sales team prior to placing your order.
-
Extended Warranty Protection: Standard warranty covers 2 Years Parts and Labour. Receive an additional 2 Years Parts-Only protection by registering your product online within 14 days of invoice issuance.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
