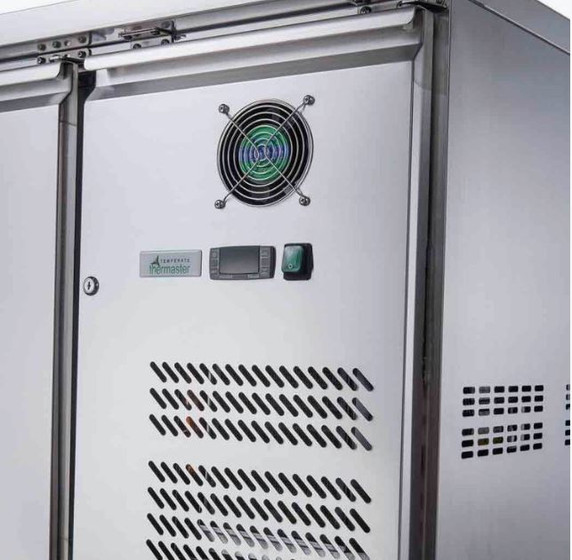

Maximise workspace and refrigerated storage capacity in high-volume commercial kitchens with the FED-X XUB7C22S4V 553L 4 Door Stainless Steel Underbench Commercial Storage & Prep Fridge. Engineered for busy restaurants, hotels, cafes, catering facilities, and prep lines, this 2230mm-wide underbench fridge provides generous refrigerated storage underneath a flat stainless steel benchtop.
Constructed with a full stainless steel interior and exterior featuring coved internal corners for rapid sanitation, the unit is powered by European components—including an Embraco/Secop compressor, Dixell electronic controller, and ebm-papst evaporator and condenser fans. Tropicalised for demanding Australian conditions, it reliably maintains holding temperatures between -2°C and +8°C in ambient temperatures up to +43°C.
Key Benefits
-
553L Storage Capacity with GN 1/1 Compatibility: Underbench cabinet features four hinged doors designed to accommodate Gastronorm GN 1/1 pans and includes 1 heavy-duty adjustable wire shelf per door (40kg loading capacity per shelf).
-
Tropicalised +43°C Ambient Performance: Built specifically to excel in hot Australian kitchen environments (up to +43°C ambient at 60% relative humidity) with rapid temperature recovery rates during service.
-
Expanded Temperature Range (-2°C to +8°C): Sub-zero cooling capability keeps prepped stock extra cold, extending ingredient freshness and food safety.
-
Wall-Flush Installation Design: Rear-vented airflow allows the unit to sit directly flush against kitchen walls to optimize floor space.
-
Premium European Components: Powered by an Embraco/Secop compressor, ebm-papst fans, and an intuitive Dixell digital user interface.
-
Customisable Layout Options: Optional 2-drawer or 3-drawer bank units are available in lieu of standard door sections for custom prep workflows.
-
60mm CFC-Free High-Density Insulation: Thick body insulation combined with self-closing doors and heavy-duty magnetic gaskets ensures superior thermal retention and energy efficiency (5.176 kWh/24h).
-
Heavy-Duty Lockable Castors: Pre-installed industrial castors with front wheel brakes allow effortless mobility for routine floor washdowns underneath.
-
Plug & Play 10A Electrical Connection: Low power draw (345W / 2.0A) operates on a standard single-phase 240V 10A power outlet.
Technical Specifications
| Feature | Specification |
| Brand / Model | FED-X XUB7C22S4V |
| Gross / Net Volume | 553 Litres / 415 Litres |
| Form Factor | 4 Solid Door Underbench Commercial Storage Fridge |
| Gastronorm Compatibility | Fits GN 1/1 Pans / Shelves |
| External Dimensions (mm) | 2230 (W) x 700 (D) x 850 (H) |
| Internal Dimensions (mm) | 1669 (W) x 580 (D) x 564 (H) |
| Temperature Set Range | -2°C to +8°C |
| Cooling Mechanism | Dynamic Fan-Forced Cooling (Auto Defrost) |
| Compressor / Controller | Embraco/Secop Compressor / Dixell Digital Controls |
| Fans | ebm-papst Evaporator & Condenser Fans |
| Power Supply / Electrical | 240V / 50Hz / 345W / 2.0A (Standard 10A Plug) |
| Total Energy Consumption | 5.176 kWh / 24h |
| Refrigerant Type | Eco-Friendly R290 |
| Ambient Operating Rating | Approved for +43°C Ambient (60% Relative Humidity) |
| Net Weight | 150.0 kg |
| Warranty | 2 Years Parts & Labour (+ 2 Years Parts Only upon registration within 14 days of invoice) |
Operational & Delivery Notes
-
Drawer Option Customisation: Drawer units (2-drawer or 3-drawer modules) must be ordered separately if preferred over standard hinged door access.
-
Residential Delivery: Delivery to non-commercial or residential addresses requires a customised freight quote. Please contact our sales team prior to placing your order.
-
Extended Warranty Protection: Standard warranty covers 2 Years Parts and Labour. Receive an additional 2 Years Parts-Only protection by registering your product online within 14 days of invoice issuance.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
