The new model is the C400.

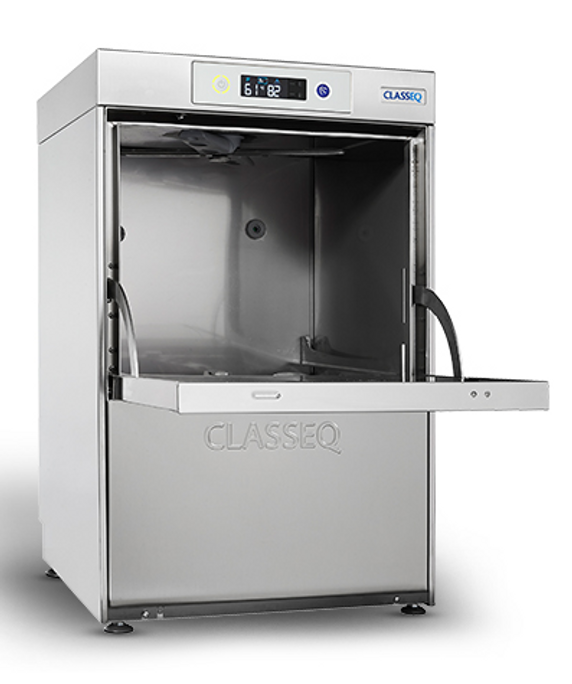

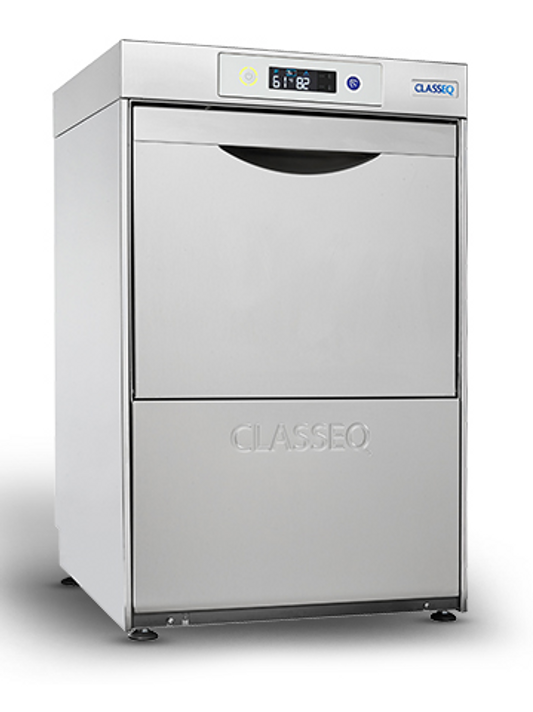

About Classeq G400DUO Duo Undercounter Glasswasher
A front-loading commercial glasswasher with digital display, two wash programs and full WRAS compliance for effortless and consistently clean results. The digital LCD display accurately shows the temperature of the wash tank and rinse boiler, re-assuring the operator that it is up to temperature and fully sanitising during the wash cycle.
The G400 DUO comes with all the benefits of the standard range plus:
- All Duo’s come with drain pumps, rinse booster pumps and built-in chemical dispensers to ensure they meet installation requirements. The rinse booster pump is essential for ensuring the rinse has the right pressure to thoroughly clean off all detergent - especially in low water pressure areas.
- LCD display – enhances user functionality by displaying rinse and wash tank temperatures
- Double skinned construction
Key Features:
- Simple Controls - Universally recognised symbols and logical controls making operating this machine crystal clear across all languages, meaning better results, less mistakes and minimal training required
- Drain Pump - All Duo models come fitted with a drain pump — essential for when the drainage is either higher than the machine's waste outlet, or has to be pumped to a stand pipe.
- Water Board (WRAS) Complaint - All Duo machines have a 'Type A' air gap which completely prevents any dirty water from going back into the mains water supply (an essential and legal requirement).
- Two Wash Programs - Standard (2 min) and light (1.5 min) cycles allow for maximum output without compromising wash quality.
- Large Clear Entry Height - Has an opening of 343mm, perfect for larger glasses and even bottle washing.
- Rinse Booster Pump - All Duo models have a rinse booster pump. This is essential for ensuring the rinse has the right pressure to thoroughly clean off all the detergent — especially in low water pressure areas.
- Colour Coded Display - Amber flashing — Machine heating, Blue — Machine in cycle, Green — Machine ready
- Self -clean during drain down - All machines will run a rinse cycle during the drain down which assists the operator during the cleaning as per recommended cleaning guidelines.
- Dimensions (mm): 470 (W) x 790 (H) x 517 (D)
- Rack Dimensions (mm): 400 x 400
General Values:
Theoretical capacity: 40 racks/h
Tank capacity: 6.5 litres
Wash pump power: 0.25 kw
Splash guard: IPX4
Consumption value and temperatures:
Type: G400DUO
Rinse water consumption (litres/rack): 3.00 l/cycle
Rinse temperature (C): 82 c
Tank temperature (C): 55 c
Maximum water inlet temperature (C): 55 c
Optional electrical configuration: The G400DUO can be downgraded to fit your electrical requirement. For 13A configurations its recommended a hot water feed to minimise the effect on its heating performance.
Electrical values:
Voltage: 240V/1N~
Fuse rating: 15A
Tank heating: 2.0 kW
Overall connected load: 3.18 kW
Boiler heating: 2.0 kW
Circulating pump (P1): 0.25 kW
Standard Configuration
- Amps Required: 13A 1 Phase
- Operating voltage: 220-240V / 1N~ / 50Hz
- Total Connected Load: 2.85kW
- Optional 3 Phase Configuration
- Amps Required 3 Phase: 13A 3 Phase
- Operating Voltage 3 Phase: 380-415V/3N/50Hz
- Total Connected Load 3 Phase: 6.58kW
Optional 1 Phase Configuration
- Amps Required 1 Phase: 30A 1 Phase
- Operating Voltage 1 Phase: 220-240V/1N~/50Hz
- Total Connected Load 1 Phase: 6.58kW
Warranty: 12 Months
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
