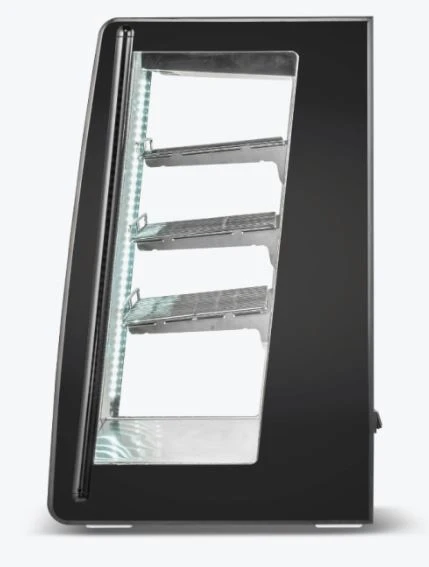

The Bonvue 196L Chilled Angled Countertop Food Display (CTA-196) is a high-visibility, energy-efficient commercial refrigerated showcase engineered specifically for Australian cafes, bakeries, takeaway kiosks, service stations, sandwich bars, and deli counters. Measuring 795 mm Wide x 560 mm Deep x 874 mm High, this stylish countertop display unit stands out in the market with an expansive merchandising capacity, an angled profile, and an additional shelf level to showcase a wider variety of fresh cakes, wraps, pastries, salads, and cold beverages without monopolising precious bench space.
Why operators choose the Bonvue CTA-196:
-
Exceptional GEMS energy efficiency — utilizes eco-friendly R290 natural refrigerant, achieving an industry-leading 9 to 10-star GEMS energy rating for ultra-low running costs.
-
Extra shelving advantage — features 3 fully adjustable chrome-plated wire shelves plus the stainless steel base, offering significantly more display area than standard competitor models.
-
Full double-tempered glass enclosure — all sides are encased in double-glazed tempered safety glass, enhancing thermal retention and customer safety while maintaining panoramic visibility.
-
Anti-condensation 3-side air ducts — specialized internal air-duct system actively circulates chilled air across three sides to manage surface moisture and keep glass crystal clear.
-
Dual-sided brilliant LED lighting — integrated vertical LED strip lighting on both sides ensures bright, uniform product exposure on every shelf level day and night.
-
Ventilated fan-forced cooling — maintains precise, uniform temperatures across the entire cabinet between +2°C and +12°C in ambient Australian conditions up to 30°C and 50% relative humidity.
-
Ergonomic rear sliding doors — smooth-gliding rear access doors make restocking, stock rotation, and counter service effortless during busy peak hours.
-
Plug-and-play 10A operation — low 200W electrical consumption running on a standard Australian single-phase 10 Amp power connection.
Technical Specifications
| Feature |
Specification |
| Model Code |
CTA-196 |
| Product Type |
Commercial Angled Countertop Refrigerated Display Cabinet |
| Gross Capacity |
196 Litres |
| Temperature Range |
+2°C to +12°C |
| Max Ambient Rating |
Up to 30°C / 50% Relative Humidity |
| Energy Efficiency |
9 to 10-Star GEMS Energy Rating |
| Refrigerant |
Natural & Eco-Friendly R290 |
| Cooling System |
Ventilated Fan-Forced Air Cooling with Auto-Defrost |
| Condensation Management |
3-Side Air Ducts for Clear Visibility |
| Glass Type |
Double-Glazed Tempered Safety Glass (All Sides) |
| Shelving System |
3 x Adjustable Chrome-Plated Shelves + Stainless Base |
| Lighting |
Dual-Sided Internal LED Strip Lighting |
| Access Doors |
2 x Smooth Rear Sliding Glass Doors |
| Chassis & Body |
Stainless Steel Base & Precision Digital Controller |
| Product Dimensions |
795 (W) x 560 (D) x 874 (H) mm |
| Net Weight |
64 kg |
| Electrical Power |
240V / 50Hz Single Phase; 200W (Standard 10A Plug Included) |
| Warranty |
1 Year Commercial Parts & Labour Warranty |
Operating & Service Notice
To preserve optimum airflow and ensure steady cooling throughout the cabinet, avoid placing paper, foil, or tray liners directly over the internal air circulation ducts. Periodically wipe down sliding door tracks and inspect the rear ventilation vents to ensure dust-free compressor operation.
Freight & Delivery Notice
Shipping rates vary across Australia depending on your location. Due to the tempered glass construction and 64kg shipping weight, please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Frequently Asked Questions
What makes the Bonvue CTA-196 different from other countertop displays?
The CTA-196 features an extra shelf level (3 adjustable chrome-plated wire shelves plus base deck) compared to most 2-shelf benchtop units. This delivers a significantly larger display area, allowing you to showcase more stock varieties across a compact 795mm bench footprint.
How does the unit prevent condensation on the glass?
The display is engineered with a multi-directional internal airflow system featuring three-side air ducts. These ducts actively sweep conditioned air across the double-tempered glass panes to control surface moisture and prevent visual fogging.
What is the energy rating of the Bonvue CTA-196?
Powered by natural R290 hydrocarbon refrigerant and modern low-draw fan systems, this unit boasts an exceptional 9 or 10-star GEMS energy rating, delivering substantial savings on commercial power bills.
Does this countertop display need a floor drain?
No. The Bonvue CTA-196 is equipped with an automated defrost cycle that evaporates condensate internally, eliminating the requirement for manual drainage trays or external plumbing.
What electrical outlet is required?
The unit draws just 200W on 240V power and comes factory-fitted with a standard Australian 10 Amp single-phase plug, making it ready for instant plug-and-play installation on your counter.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
