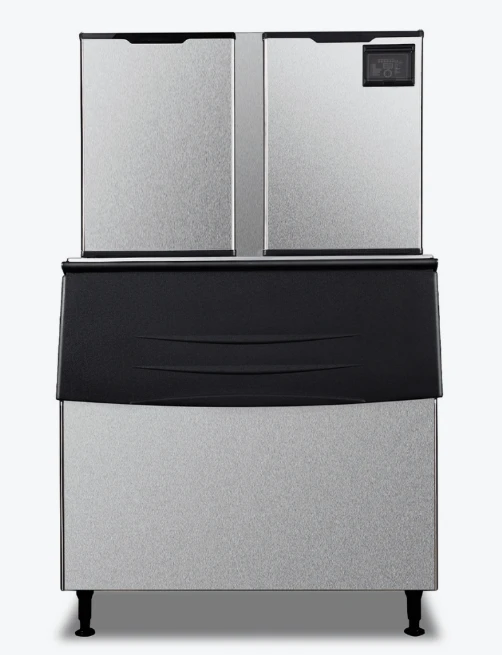

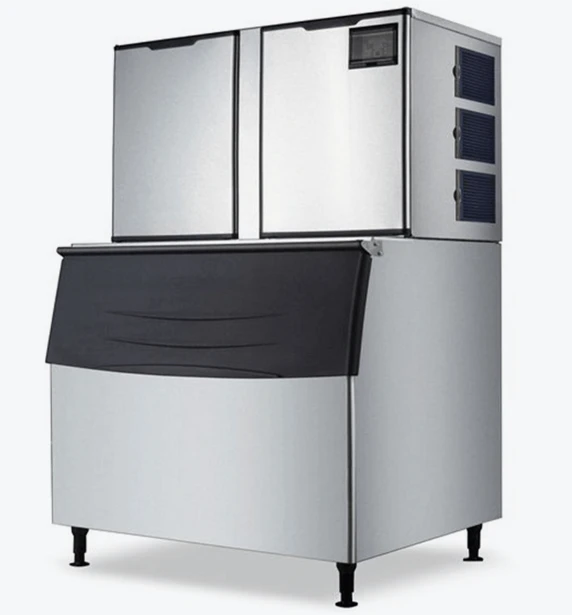

Blizzard SN-2000P 900kg Modular Cube Ice Maker with 350kg Bin | 3-Phase

[BLIZZARD_MSG]

The Blizzard SN-2000P 900kg Commercial Air-Cooled Modular Cube Ice Machine with 350kg Storage Bin is an industrial-scale, ultra-high-capacity ice generation system engineered specifically for Australian mega-venues, major hotel resorts, festival event facilities, stadiums, seafood distribution markets, processing plants, and multi-deck nightclub complexes. Measuring 1262 mm Wide x 965 mm Deep x 2057 mm High (cabinet body: 1220 W x 810 D x 1950 H mm) and weighing an industrial 225 kg, this heavy-duty modular system pairs a high-output multi-grid freezing head with a 350kg polyurethane-insulated ice storage bin. Capable of generating up to 900kg of crystal-clear 22mm x 22mm x 22mm full-dice ice cubes every 24 hours, the SN-2000P is built with premier international refrigeration components—including German ebm-papst condenser fans, a high-capacity US Morrill water circulation pump, Japanese Saginomiya solenoid and hydraulic valves, and an automated Hisakage PLC control system. Supplied with a dedicated commercial water filtration system and operating on a heavy-duty 380V 3-phase power supply, it delivers relentless cooling volume to master extreme commercial surge demands.

Why venue operators and facility managers choose the Blizzard SN-2000P:

• Massive industrial daily output (up to 900kg/24h) — high-yield commercial evaporator engine produces up to 900kg of solid full-dice ice cubes per day, comfortably supporting continuous peak trading, mass banquet replenishment, and heavy production runs.

• Substantial 350kg insulated storage reserve — heavy-duty thermal insulated bin stores up to 350kg of reserve ice ready for rapid service, protected by automated bin level sensors to prevent overfilling and reduce melt loss.

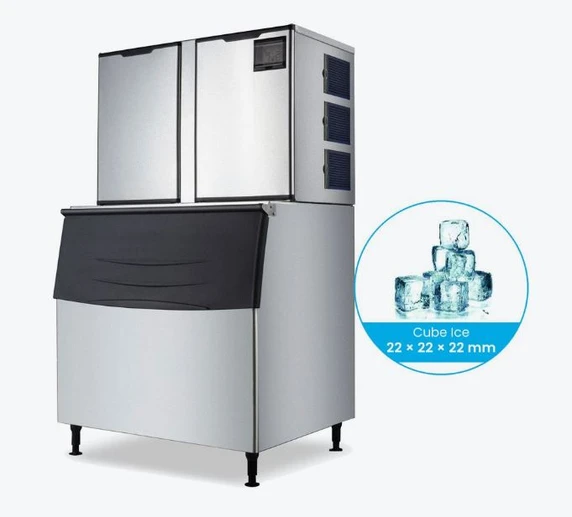

• Classic 22mm³ full-dice ice cubes — yields dense, uniform 22mm x 22mm x 22mm dice cubes that provide superior thermal transfer to chill beverages, cocktails, and spirits quickly while melting slowly to minimise drink dilution.

• Eco-conscious air-cooled condensing — high-efficiency air-cooling system extracts heat rapidly via ambient air without consuming excessive mains water for condensation, keeping municipal utility costs low.

• Tier-one global engineering components — precision-built with German ebm-papst fan motors, an automated Hisakage PLC control board, a US Morrill commercial water pump, and Japanese Saginomiya solenoid and hydraulic valves for maximum commercial uptime.

• Supplied commercial water filtration system — includes a dedicated inline water filter system upon delivery to safeguard the multi-grid evaporator plates, prevent limescale accumulation, and ensure crystal-clear cube formation.

• Heavy-duty commercial stainless steel cabinet — industrial-grade stainless steel exterior withstands demanding back-of-house, kitchen, and cellar environments while wiping clean effortlessly.

• High-power 380V 3-phase commercial configuration — heavy-duty 4000W (4.0 kW) refrigeration system operates on a dedicated 380V 50Hz 3-phase electrical supply, ensuring balanced line load and stable motor operation under heavy ambient conditions.

Technical Specifications

Essential Water Filtration & Scheduled Maintenance

Commercial modular ice makers operating at industrial capacities cycle large volumes of water every hour. In municipal water supplies across Australia, dissolved mineral salts, chlorine, and sediment concentrate during the freezing process. Without proper treatment, limescale rapidly encrusts the vertical nickel-plated evaporator grids, resulting in malformed cubes, extended harvest cycles, and premature compressor strain.

Included Water Filter System: The Blizzard SN-2000P comes supplied with a commercial inline water filtration system. To maintain pristine ice clarity, ensure peak freezing efficiency, and validate your 2-Year parts and labour warranty, the filter cartridge must be replaced every 6 months (such as with the WFI37000 replacement cartridge).

Follow this mandatory 6-monthly preventative service program:

1. Evaporator Descaling: Remove scale and mineral deposits from the vertical evaporator plates and water distribution tubes using an approved food-safe commercial nickel-safe ice machine descaler.

2. Sanitisation: Thoroughly sanitise the water sump reservoir, distribution manifolds, water curtain, and interior storage bin walls using an approved food-contact sanitiser.

3. Condenser Maintenance: Clean and flush the air-cooled condenser coils; inspect fan blades and the German ebm-papst motor operation for smooth rotation and unobstructed airflow.

4. Water Circuit Inspection: Check the water inlet solenoid valve, float switch, pump housing, and inline water filter connections for proper flow and sealing.

5. Sensor Calibration: Test and verify ice thickness probe sensitivity and automated bin level sensor calibration for accurate harvest initiation and bin cut-off.

6. Refrigeration Check: Inspect operating pressures, superheat, sub-cooling levels, and compressor running amperage across all three phases.

7. Harvest Cycle Test: Test hot gas defrost valve opening and harvest cycle timing to ensure clean, uniform cube release.

8. Electrical Inspection: Check relays, contactors, electrical wiring connections, and ground protection.

9. Filter Cartridge Replacement: Replace the inline water filter cartridge bi-annually (or more frequently in high-scale regions) to prevent mineral accumulation.

Plumbing, Operating & Service Notice

The Blizzard SN-2000P requires direct connection to a cold potable mains water line terminating at an isolation tap (operating between 100 kPa and 500 kPa) and a dedicated gravity floor waste drain with an approved physical air gap. Ensure the drainage line runs continuously downhill without upward loops to allow meltwater from the 350kg bin and periodic harvest flushes to discharge freely. Provide at least 150 mm to 200 mm of ventilation clearance around the air-cooled condenser grilles on the modular head to guarantee adequate airflow and heat rejection.

Electrical Requirement: The SN-2000P draws 4.0 kW and requires installation on a dedicated 380V 50Hz 3-Phase + Neutral commercial electrical circuit by a licensed electrician. It cannot be operated on single-phase 240V power outlets.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia. Due to the heavy modular dual-box configuration (industrial ice head plus 350kg storage bin) and a crated net weight of 225 kg, delivery to non-commercial or residential addresses requires a customised tail-lift freight calculation. Please contact our friendly commercial sales team prior to placing your order to verify site access, doorway clearances, three-phase power availability, and delivery arrangements.

Frequently Asked Questions

What type of electrical power supply is required for the Blizzard SN-2000P?

The SN-2000P is an industrial-capacity machine drawing 4000W (4.0 kW) across its refrigeration system. It requires a dedicated 380V / 50Hz 3-Phase + Neutral electrical connection hardwired or connected via an approved commercial 3-phase socket by a licensed electrical contractor. It cannot be connected to standard single-phase 10A or 15A outlets.

What type and size of ice does this machine produce?

The machine produces classic 22mm x 22mm x 22mm (22mm³) full-dice ice cubes. This solid geometric shape delivers maximum surface-area contact to chill spirits, cocktails, soft drinks, and bulk beverages rapidly while melting slowly to avoid watering down drinks.

Does the Blizzard SN-2000P come with a water filter?

Yes. The SN-2000P comes supplied with a dedicated commercial inline water filtration system to protect internal valves, improve cube clarity, and inhibit limescale accumulation on the evaporator grids. To maintain equipment protection and warranty compliance, the filter cartridge must be replaced every 6 months.

How does the automated bin control sensor work?

The SN-2000P features an integrated bin level sensor located in the modular drop zone. When ice builds up to the 350kg capacity line in the insulated bin, the sensor automatically signals the Hisakage PLC system to pause the freezing and harvest cycle. Once ice is scooped out for service, the machine automatically resumes production.

Does the Blizzard SN-2000P require a gravity floor waste drain?

Yes. The machine relies on gravity drainage to evacuate meltwater from the 350kg insulated storage bin and discharge mineral-laden water during automatic purge cycles. It must be positioned near a suitable floor waste, tundish, or drain outlet installed with an approved physical air gap in compliance with Australian plumbing standard AS/NZS 3500.
