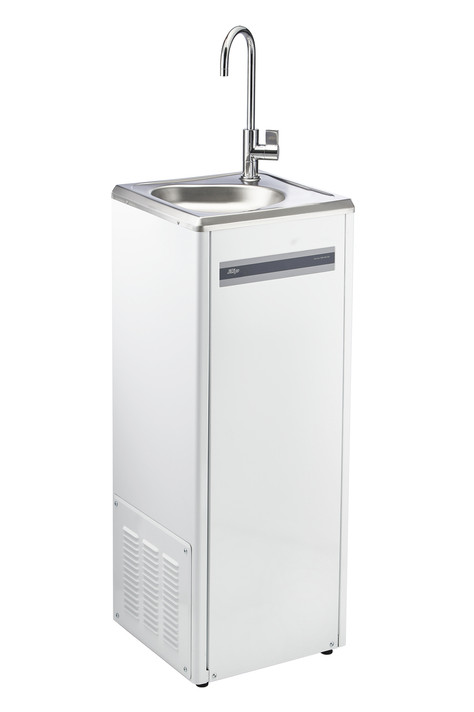

Zip Sitemaster SM1502 (140 CF 19) Heavy-Duty Industrial Chilled Water Fountain with Anti-Vandal Carafe Tap (140 Glasses/Hr)

The Zip Sitemaster SM1502 (140 CF 19) Freestanding Chilled Drinking Water System is a heavy-duty, IP23-rated commercial water dispenser engineered specifically for demanding Australian industrial worksites, construction site sheds, manufacturing facilities, workshops, mine sites, and sports complexes. Sized at a compact 354 mm Wide x 359 mm Deep x 915 mm High, this robust floor-standing chilled water unit features a durable white powder-coated steel chassis paired with an easy-to-clean stainless steel basin and heavy-duty adjustable levelling feet to handle tough working environments.

Delivering up to 140 chilled glasses (200 ml) of water per hour via a 3.5-litre stainless steel storage tank, the SM1502 prioritizes site hygiene by featuring an exclusive anti-vandal, self-returning carafe filler tap. This high-clearance bottle-filler design eliminates traditional mouth-to-tap bubbler contact, allowing workers to fill personal water bottles, thermos flasks, and jugs quickly and cleanly. Equipped with an internal 500 kPa pressure-limiting valve, plumbed waste connection, removable condenser cover for simple servicing, and an optional mechanical leak detector, it connects to a 12.7 mm (1/2") BSP water mains supply (150–700 kPa operating pressure). It holds WaterMark, CE, and ARC approvals and comes backed by a 12-Month Zip Manufacturer Warranty.

Why Choose the Zip Sitemaster SM1502 Industrial Chilled Water Dispenser?

Selecting the Zip Sitemaster SM1502 Chilled Drinking Water Appliance equips site managers, safety officers, and facility administrators with an ultra-durable, hygienic bottle-filling platform designed to keep workforce teams hydrated under harsh Australian conditions.

Key benefits of the Zip Sitemaster SM1502 include:

• High-Output Chilling Performance (140 Glasses/Hour): High-capacity refrigeration system delivers up to 140 chilled glasses (200 ml) per hour from a robust 3.5-litre stainless steel internal storage reservoir during peak break periods.

• IP23 Weather & Splash Resistance: Built with an IP23 ingress protection rating, making it ideal for tough site conditions, semi-outdoor areas, factories, and heavy workshop environments.

• Exclusive Anti-Vandal Self-Returning Carafe Tap: Features a heavy-duty, self-closing carafe filler tap that prevents accidental water waste while allowing staff to fill large personal water bottles and jugs hygienically.

• Integrated 500 kPa Pressure-Limiting Valve: Internal pressure-limiting valve (PLV) protects internal plumbing components against mains water pressure spikes (operating range: 150 kPa to 700 kPa).

• Industrial Site-Ready Construction: White powder-coated steel casing with a stainless steel basin, heavy-duty adjustable levelling feet, and a removable front condenser cover for fast lint and dust cleaning.

• Plumbed Direct to Waste: Direct drain plumbing connection disposes of splash runoff instantly, keeping site sheds and lunchroom floors dry and slip-free.

• Certified Australian Safety & Quality Standards: Holds official WaterMark certification, CE approval, and ARC refrigerant compliance for guaranteed water purity and environmental standard adherence.

• 12-Month Manufacturer Warranty: Supported standard by Zip’s 12-Month Commercial Warranty.

Technical Specifications

Plumbing & Installation Notice: Under Australian standards, commercial drinking water appliances must be installed by a licensed plumber and plumbed directly to mains water and waste drains.

Freight & Delivery Notice: Commercial floor-standing equipment requires dedicated freight handling.

Operating & Maintenance Guidelines

1. Setup & Installation: Position the unit on a flat, level surface and adjust the heavy-duty feet. Have a licensed plumber connect the 12.7 mm (1/2") BSP water line, plumb the waste outlet to drain, verify water supply pressure (150–700 kPa), and plug into a grounded 220–240V wall outlet.

2. First-Time Flushing: Turn on the water supply and allow the 3.5-litre internal storage tank to fill completely. Press and hold the self-returning carafe tap for 2 to 3 minutes before initial drinking use to purge air bubbles and clean internal lines.

3. Routine Maintenance & Cleaning: Wipe down external powder-coated casing, stainless steel basin, and carafe tap daily using a soft microfibre cloth and a mild food-safe sanitiser. Periodically remove the front condenser cover to clear accumulated dust and lint from the refrigeration coils.

Frequently Asked Questions

1. What is the chilling capacity of the Zip Sitemaster SM1502?

The Zip Sitemaster SM1502 delivers 140 chilled glasses (200 ml) of drinking water per hour via its internal 3.5-litre stainless steel storage tank, making it suitable for medium-to-large factories, construction site sheds, and mine site amenities.

2. Does the SM1502 include a drinking bubbler?

No. The SM1502 is configured with an anti-vandal carafe tap only, specifically designed for filling water bottles, jugs, and carafes hygienically without physical mouth contact. If you require a unit with both a drinking bubbler and a carafe filler, consider the Zip Sitemaster SM1501-1 model.

3. Does this unit require an external pressure-limiting valve?

The Zip SM1502 includes a built-in internal 500 kPa pressure-limiting valve (PLV), which regulates incoming water pressure (operating range: 150 kPa to 700 kPa) to protect internal tank fittings.

4. What does the IP23 rating mean for this water dispenser?

An IP23 rating indicates protection against solid objects greater than 12.5 mm and spraying water up to 60 degrees from vertical, making the unit resilient against dust, splashes, and tough environmental conditions on industrial sites.

5. What warranty covers the Zip SM1502?

The Zip Sitemaster SM1502 comes backed standard by a 12-Month Zip Commercial Manufacturer Warranty.

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
