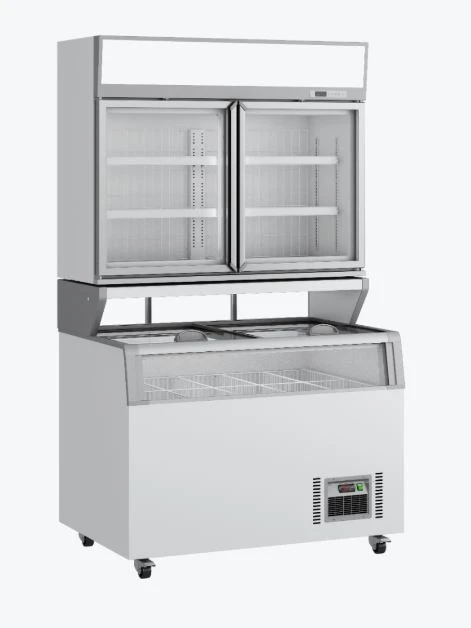

Thermaster ZCDTD125 Combined Supermarket Freezer 688L | 1254mm

[THERMASTER_MSG]

The Thermaster 1254mm Combined Supermarket Display Freezer (ZCDTD125) is an innovative, dual-zone commercial frozen food merchandising powerhouse engineered specifically for Australian supermarkets, Asian grocers, convenience stores, petrol stations, and specialty frozen food retail outlets. Measuring 1254 mm Wide x 850 mm Deep x 2110 mm High with a massive combined gross volume of 688 litres (218L top upright / 470L bottom chest), this space-saving combination freezer merges a vertical reach-in glass door display with a high-capacity horizontal island chest freezer beneath, maximising valuable vertical retail space to drive impulse sales across a compact floor footprint.

Why operators choose the Thermaster ZCDTD125:

• Dual-tier upright & chest merchandising architecture — combines an eye-level vertical reach-in display (218L) with an accessible high-capacity bottom chest freezer (470L) to double frozen inventory display capacity without expanding aisle floor space.

• Eye-level promotional canopy — integrated illuminated top lightbox canopy showcases store branding, product category signs, or promotional advertisements to capture customer attention from across the retail floor.

• Triple-glazed heated glass top doors — upper display features hinged, self-closing doors crafted with heated film and triple glazing to completely eliminate condensation fogging and ensure pristine product presentation in humid Australian climates.

• Low-E sliding tempered glass chest lids — bottom island chest is fitted with heavy-duty Low-E sliding glass covers that reflect radiant thermal energy, locking in sub-zero cold while providing panoramic viewing from above.

• Zoned refrigeration engineering — top cabinet features high-velocity fan-forced cooling with a stainless steel inner floor, while the bottom section utilizes a robust static cooling system complete with auto-defrost (optional manual defrost models available on request for ice cream storage).

• Eco-friendly R290 hydrocarbon refrigerant — utilizes natural R290 refrigerant with near-zero Global Warming Potential (GWP), lowering compressor load and running costs.

• Organised high-density basket storage — lower chest unit comes equipped with commercial storage mesh dividers and full baskets to keep bagged vegetables, dumplings, seafood, and frozen meals neatly categorised.

• Heavy-duty Colorbond construction — hard-wearing commercial Colorbond exterior built to withstand rigorous supermarket trolley traffic and daily retail trade.

• Independent plug-and-play 10A circuits — modular power design runs on two standard Australian 240V 10 Amp power points (Top: 550W / 10A; Bottom: 285W / 10A) for straightforward installation without complex 3-phase wiring.

Technical Specifications

Operating & Service Notice

This combined retail freezer is engineered specifically for holding and displaying pre-frozen inventory; all stock must be at or below -18°C prior to loading. To maintain food safety and optimal energy efficiency, do not load frozen goods beyond the indicated load lines in the bottom chest or obstruct the internal fan discharge vents in the upper cabinet. Please note that this unit is supplied flat-packed across two separate crates (top display module and bottom chest freezer module) to simplify transit through standard retail doorways; assembly, physical connection, and installation are not included and must be arranged by the purchaser. Regularly inspect and clean the refrigeration condenser coils to ensure maximum cooling efficiency.

Freight & Delivery Notice

Standard commercial tailgate delivery is available across Australia. Due to the 233kg total shipping weight, height exceeding 2.1 metres, and dual-crate pallet volume, please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Frequently Asked Questions

How does a combined supermarket freezer save floor space?

Traditional supermarket layouts require separate floor footprints for upright reach-in displays and horizontal chest island freezers. The Thermaster ZCDTD125 mounts a high-visibility reach-in vertical freezer directly above a high-volume chest freezer, effectively doubling your sellable frozen stock volume per square metre of retail floor space.

Why is heated glass used on the top doors?

Commercial supermarket aisles frequently experience ambient humidity changes when customers enter the store or when air-conditioning cycles. The top hinged doors feature a thin heated film between triple-glazed glass panes to actively eliminate surface condensation, fogging, and moisture droplets, ensuring merchandise remains clear and visible at all times.

Can the bottom freezer section be used for ice cream storage?

Yes. The standard unit comes configured with an auto-defrost cycle suitable for packaged meals, seafood, vegetables, and dumplings. For sensitive dairy products like artisan gelato or bulk commercial ice cream—which require uninterrupted holding temperatures without thermal defrost spikes—optional static cooling manual-defrost variants are available upon request.

How is the freezer powered?

The ZCDTD125 operates via two separate standard Australian single-phase 240V circuits—one for the upper vertical module (550W) and one for the bottom chest unit (285W). Both sections are factory-fitted with standard 10 Amp plugs, eliminating the need for expensive commercial three-phase electrical modifications.

What is the advantage of the illuminated top canopy?

The backlit top header canopy acts as a prominent merchandising billboard above the freezer display. It allows retail store managers to slide in high-contrast product branding, promotional graphics, or category signs (e.g., "Frozen Seafood", "Gourmet Meals", or "Ice Cream") to attract customer foot traffic directly to the freezer aisle.

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
