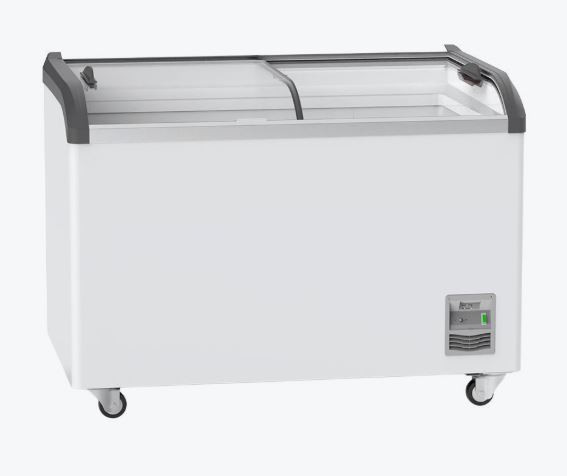

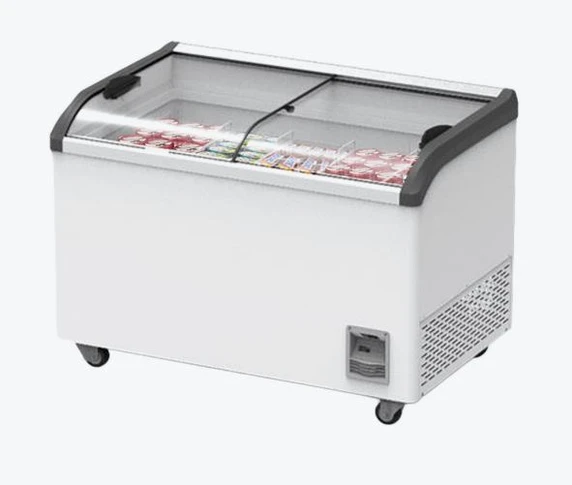

The Thermaster SD-406K Curved Glass Chest Freezer is a high-performance commercial display freezer designed for Australian convenience stores, ice cream parlours, supermarkets, delis, and food service venues. Featuring a spacious 406L capacity and an elegant curved glass sliding lid, this display freezer maximises product impulse sales while ensuring optimal freezing performance.
Engineered to operate reliably in high ambient conditions (Climate Class 7 rating up to 35°C ambient temperature and 75% relative humidity), the SD-406K uses eco-friendly R290 natural refrigerant and 70mm thick insulation to keep operating costs low and internal temperatures steady between -18°C and -22°C.
Key Features & Benefits
-

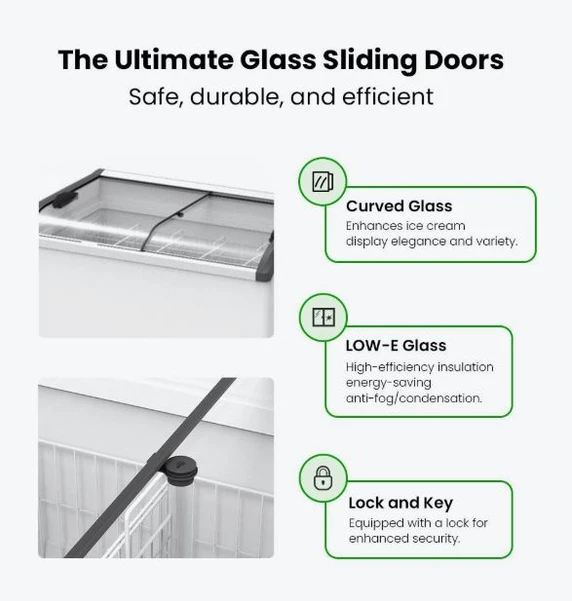

Elegant Curved Glass Design: Sliding curved glass lids offer unobstructed 360-degree product visibility, making it the ideal showcase for ice cream, frozen treats, and packaged goods.
-
Exceptional Insulation: 70mm thick insulation wall structure maximises cold retention, reduces energy consumption, and protects stock during power fluctuations.
-
Engineered for Extreme Conditions: Rated to Climate Class 7 standards (tested up to 35°C ambient temperature and 75% relative humidity) for uncompromised cooling performance in hot Australian climates.
-
Eco-Friendly R290 Hydrocarbon Gas: Operates on natural R290 refrigerant to deliver high cooling efficiency with minimal environmental impact.
-

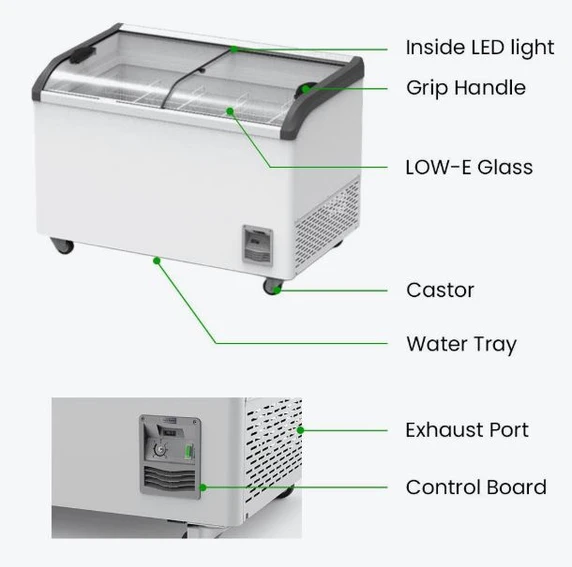

Heavy-Duty Construction: Built with a white Colorbond exterior, a durable aluminium alloy frame, and heavy-duty castors for easy positioning and floor cleaning.
-

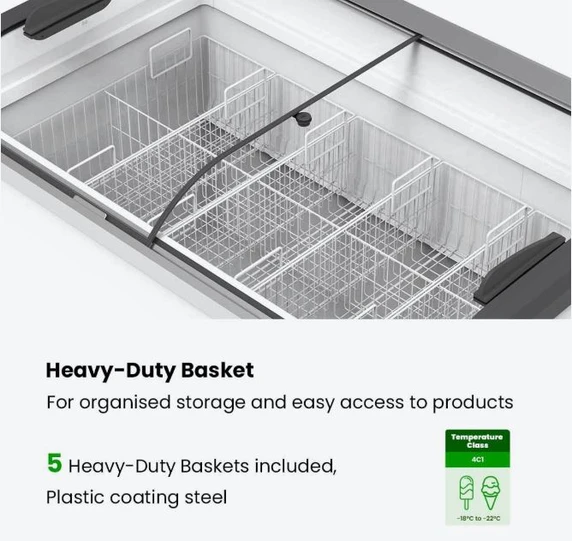

Secure & Practical Storage: Includes heavy-duty display baskets for organized product layout and an integrated door lock for stock security.
Technical Specifications
| Feature |
Specification |
| Model |
Thermaster SD-406K |
| Gross Capacity |
406 Litres |
| Temperature Range |
-18°C to -22°C |
| Climate Class Rating |
Climate Class 7 (Tested at 35°C Ambient / 75% Relative Humidity) |

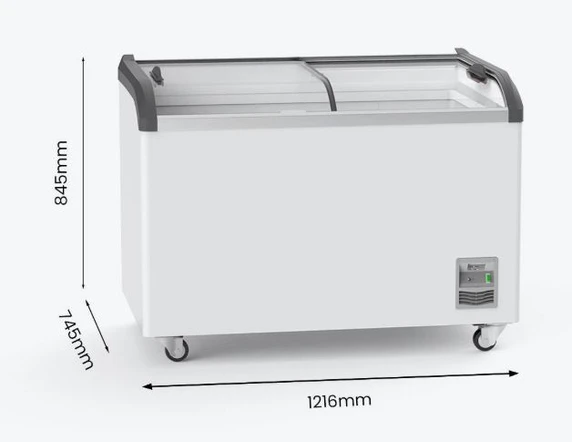

| External Dimensions (mm) |
1216 (W) x 745 (D) x 845 (H) |
| Lids / Doors |
2 x Curved Sliding Glass Lids |
| Cooling Method |

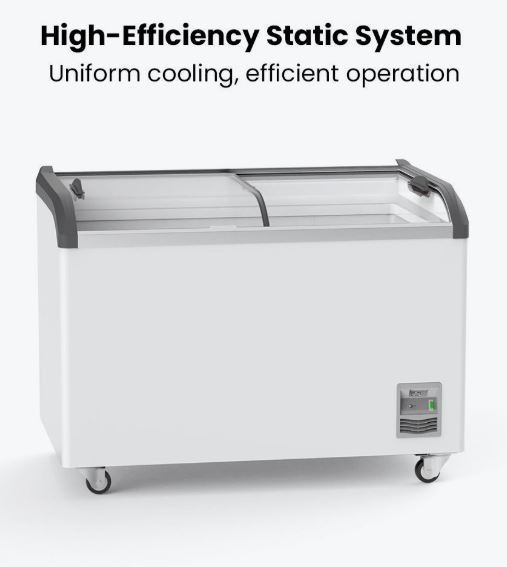

Static Cooling System |
| Defrost Type |
Manual Defrost |
| Temperature Control |

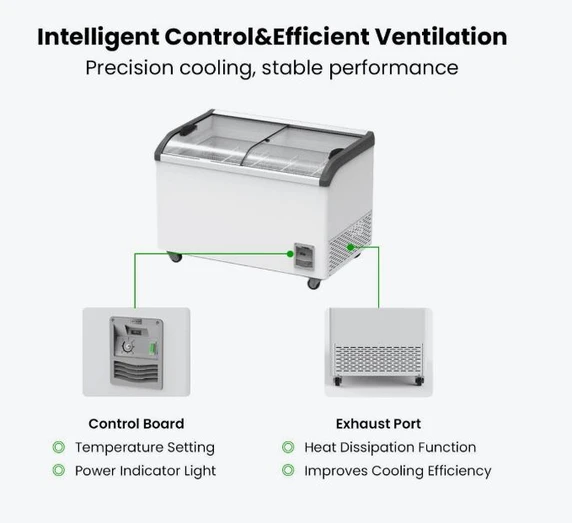

Analogue Temperature Controller |
| Insulation Thickness |
70 mm |
| Refrigerant |
Eco-Friendly R290 Natural Gas |
| Cabinet Construction |
Colorbond Exterior with Aluminium Alloy Frame |
| Mobility & Security |
Heavy-Duty Castors and Integrated Door Lock |
| Net Weight |
72 kg |
| Electrical Power |
240V / 50Hz (180W; Standard 10A Plug) |
| Warranty |
2 Years Parts & Labour + 2 Years Extra Parts Warranty (upon registration within 14 days of invoice) |
Delivery & Residential Freight Notice: Shipping rates vary depending on delivery location. Please contact our friendly commercial sales team for an accurate freight quote for non-commercial or residential address deliveries across Australia.
Operational & Maintenance Guidelines
-
Defrosting & Cleaning: Perform regular manual defrosts when ice accumulation reaches 5mm on the internal walls. Wipe down surfaces with a clean, soft cloth to maintain optimal heat exchange and efficiency.
-
Glass & Track Maintenance: Keep the curved glass lids and sliding door tracks clean and clear of ice debris to preserve an airtight seal.
-
Warranty Registration: Register your unit online within 14 days of invoice to extend your standard 2-Year Parts & Labour warranty with an additional 2 Years of spare parts coverage.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
