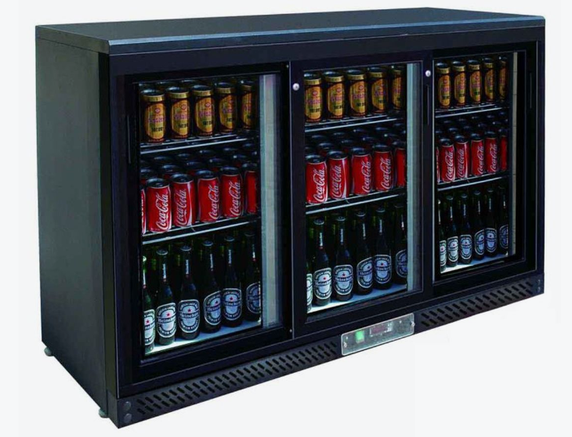

Thermaster SC316SD Three Sliding Glass Door Bar Cooler (320L)

[THERMASTER_MSG]

The Thermaster SC316SD Commercial Three Sliding Glass Door Bar Cooler is a high-performance back-bar display refrigerator engineered specifically for busy Australian bars, pubs, clubs, cafes, restaurants, and entertainment venues. Featuring a generous 320-litre gross volume (222L net capacity), a compact depth (535mm D x 900mm H), and smooth horizontal sliding double-glazed doors, this three-door commercial bar fridge maximizes drink storage while keeping narrow service aisles and bar walkways completely clear.

Designed to keep beers, ciders, pre-mixes, wines, and soft drinks chilled to optimal serving temperatures (+2°C to +8°C), the SC316SD is powered by a high-efficiency Zanussi compressor and dynamic fan-forced cooling housed in a heavy-duty black Colorbond cabinet. Built with an easy-to-read digital temperature controller and two adjustable wire shelf tiers (plus base storage), it includes bright interior LED lighting, integrated key locks, automatic defrosting, and swivel castors for effortless mobility and floor cleaning. Operating on an energy-efficient single-phase 10 Amp power supply (140W) consuming 3.168 kWh/24h, it is climate-rated for ambient conditions up to +32°C (75% RH) and is backed by up to 4 years of total warranty coverage upon online product registration.

Why Choose the Thermaster SC316SD Three Sliding Door Bar Cooler?

Choosing the Thermaster SC316SD Sliding Glass Door Bar Cooler equips high-traffic bar counters with an elegant, space-saving, and highly functional back-bar refrigeration solution.

Key reasons commercial operators specify the Thermaster SC316SD include:

• Space-Saving Horizontal Sliding Doors: Double-glazed sliding doors glide smoothly side-to-side, eliminating outward door swing to prevent obstruction in narrow behind-the-bar walkways.

• Commercial Zanussi Compressor Cooling: Powered by a heavy-duty Zanussi compressor for rapid temperature pull-down and uniform cold-air delivery between +2°C and +8°C.

• 320L High-Capacity Beverage Display: Broad 1350mm cabinet width with two levels of heavy-duty adjustable wire shelves (plus floor storage) provides ample room for arranging diverse bottle and can ranges.

• Double-Glazed Self-Closing Lockable Doors: Toughened double-glazed glass sliding doors feature self-closing mechanisms to conserve energy, alongside integrated key locks to secure alcohol inventory after hours.

• Mobility Castors for Easy Cleaning: Mounted on sturdy castors to allow staff to push the unit out smoothly for routine floor sanitation and maintenance.

• Low Energy Consumption (3.168 kWh/24h): Energy-conscious refrigeration design draws only 140W on standard 240V power, lowering ongoing operational running costs.

• Illuminated Interior LED Lighting: High-impact internal lighting highlights bottle labels, enabling bartenders to quickly select items during fast-paced service.

• Digital Temperature Controller: Easy-to-read digital thermostat display ensures exact temperature control and simple temperature checks.

• Standard 10A Plug-and-Play Setup: Connects directly into any standard Australian 10 Amp wall outlet.

• Extended 2+2 Year Warranty Protection: Backed by 2 Years Parts & Labour plus an additional 2 Years Parts Only Warranty when registered online within 14 days of invoice date.

Technical Specifications

Warranty Registration Notice: To activate the extended 2 Years Parts Only warranty (total 4 years parts coverage), products must be registered online within 14 days of invoice date.

Installation & Ventilation Note: A minimum clearance of 100mm is required around the cabinet during installation to ensure proper condenser ventilation. All ventilation grilles must remain unblocked.

Delivery & Freight Notice: Commercial heavy equipment requires dedicated tail-lift freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Maintenance Guidelines

1. Placement & Levelling: Position the bar cooler on a flat, level surface behind the bar counter. Ensure a minimum 100mm clearance around all ventilation grilles before plugging the unit into a dedicated 240V 10A wall outlet.

2. Stock Loading: Allow the cabinet to reach target temperature (+2°C to +8°C) before loading beverages. Distribute bottles evenly across the adjustable wire shelves, avoiding blockage of internal air circulation vents.

3. Sliding Track & Condenser Cleaning: Periodically wipe clean the bottom sliding door tracks to maintain smooth, effortless door movement. Ensure condenser coils are cleaned regularly in accordance with the user manual to prevent compressor strain. Engage key locks at close of trade.

Frequently Asked Questions

1. What is the main benefit of choosing the SC316SD sliding door model over hinged door models?

Sliding glass doors move side-to-side within the frame rather than swinging outward, which saves critical walkway space behind narrow bar counters and allows staff to move freely without hitting open doors.

2. What compressor powers the Thermaster SC316SD?

The SC316SD is equipped with a high-performance commercial Zanussi compressor designed for fast temperature recovery and consistent cooling performance in commercial environments.

3. What electrical supply is needed for this bar fridge?

The unit operates on single-phase 240V power with a low 140W power draw and plugs directly into any standard Australian 10 Amp wall socket.

4. How much ventilation space is required for installation?

The manufacturer specifies a minimum clearance of 100mm around the cabinet to ensure adequate airflow around the cooling vents and maintain efficient operation.

5. How do I activate the extended 4-year warranty protection?

The cooler includes a standard 2-year commercial parts and labour warranty. Registering the product online within 14 days of invoice date unlocks an additional 2 years of parts-only protection (providing 4 years total parts cover).

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
