Thermaster DC-250B 4-Door Panorama Supermarket Display Chiller (2,585L)

[GLOBAL_MSG_2]

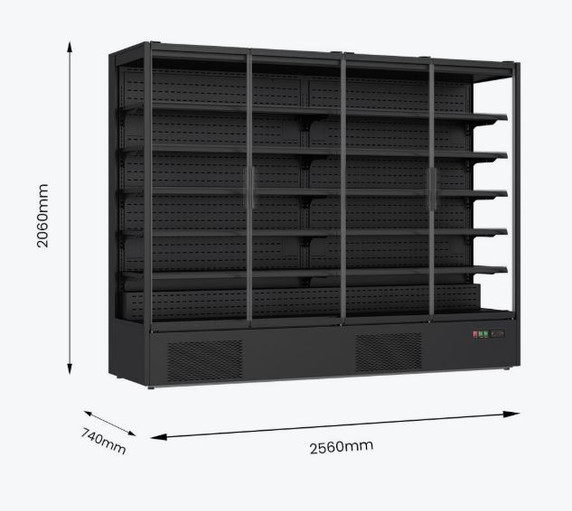

The Thermaster DC-250B Panorama 4-Door Commercial Supermarket Chiller is a high-output, energy-efficient vertical display refrigerator engineered specifically for Australian supermarkets, grocery stores, petrol stations, convenience stores, and commercial food retail venues. Sized at 2,560 mm Wide x 740 mm Deep x 2,060 mm High, this expansive 4-door display fridge delivers a massive 2,585-litre gross volume (1,529L net capacity) with a space-saving shallow base profile designed to maximize aisle floor area.

Achieving an outstanding 8-Star GEMS energy efficiency rating (consuming just 10.65 kWh/24h), the DC-250B features eco-friendly R290 natural refrigerant, EC energy-saving fans, self-closing Low-E frameless anti-glare double-glazed doors, and transparent side end-walls for panoramic 3-sided product visibility. Outfitted with five tiers of adjustable angle shelves with pricing strips, shelf-mounted LED lighting, digital temperature controls (-1°C to +5°C), and a slide-out condensing unit for easy servicing, it operates on a standard single-phase 10A plug (1,060W). It comes backed standard by up to a 4-Year Commercial Warranty (2 Years Parts & Labour plus 2 Years Parts Only upon registration).

Why Choose the Thermaster DC-250B Panorama 4-Door Display Chiller?

Selecting the Thermaster DC-250B Supermarket Chiller equips retail store managers and commercial supermarket designers with a high-impact, eco-friendly merchandising display engineered for maximum product exposure, minimal power overheads, and reliable long-term performance.

Key benefits of the Thermaster DC-250B include:

• Superior 8-Star GEMS Energy Efficiency: Engineered with eco-friendly R290 natural refrigerant and high-efficiency EC fans to achieve an industry-leading 8-Star GEMS rating, using only 10.65 kWh/24h to reduce venue energy bills.

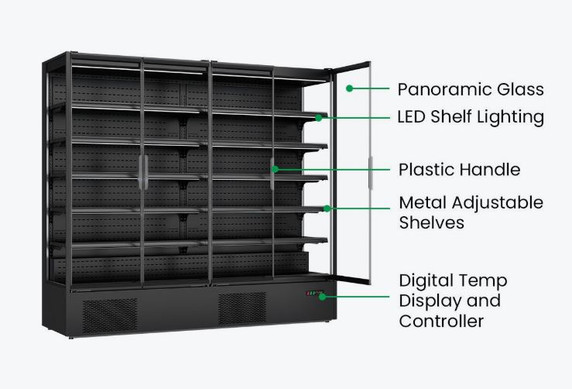

• Panoramic 3-Sided Merchandising Visibility: Full-height frameless Low-E glass hinged doors (611  x 1,653 mm) combined with transparent glass side panels maximize product presentation from the front and both sides.

• Massive 2,585L Gross Storage Volume: Expansive internal capacity across 4 glass door bays provides ample refrigerated merchandising space for dairy, beverages, pre-packaged meats, meals, and deli lines.

• 5-Level Multi-Angle Shelving with Pricing Strips: Includes 5 tiers of 450 mm deep heavy-duty shelves featuring 3 adjustable angle settings (0°, 7°, and 14°), individual shelf-mounted LED light strips, and standard ticket/pricing strips.

• Self-Closing Low-E Anti-Glare Glass Doors: Energy-conserving self-closing doors feature Low-E glass technology to minimize external condensation, eliminate glare, and retain internal cabinet temperatures.

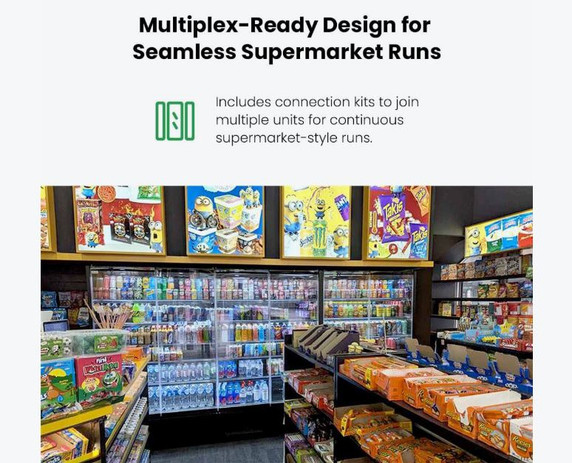

• Compact Floor Footprint & Joinable Design: Shallow 740 mm cabinet depth optimizes supermarket aisle walkways, while modular construction allows multiple DC-250B units to be multiplexed/joined together seamlessly for continuous display runs.

• Slide-Out Condensing Unit for Simple Servicing: Features a pull-out lower condensing unit that simplifies routine condenser coil cleaning and technician service access.

• Up to 4-Year Warranty Coverage: Backed standard by a 2-Year Parts & Labour Warranty, extending to a total 4-Year Warranty (2 Years Parts & Labour + 2 Years Parts Only) when registered online within 14 days of invoice.

Technical Specifications

Operating & Maintenance Notice: To maintain peak 8-Star GEMS energy efficiency and validate extended warranty coverage, ensure the slide-out condenser coil is vacuumed free of dust quarterly. This unit is rated for Climate Class 3 indoor supermarket environments (25°/ 60% RH).

Freight & Delivery Notice: Commercial heavy equipment requires dedicated tail-lift freight transport. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Cleaning Guidelines

1. Setup & Multiplexing: Position the cabinet on a level floor using its heavy-duty castors. Ensure adequate overhead and rear airflow clearance before connecting to a standard single-phase 240V 10A wall socket. If joining multiple DC-250B units together, utilize the modular alignment brackets.

2. Temperature Control & Merchandising: Allow the cabinet to pull down to its operating temperature (-1°C to +5°C) before loading pre-chilled stock. Adjust shelf tilt angles  0°, 7°, and 14° to suit product packaging and slide promotional price cards into the included pricing strips.

3. Routine Maintenance & Cleaning: Wipe down glass doors, side panels, and internal Colorbond surfaces daily using a soft microfibre cloth and a mild food-safe sanitiser. Slide out the bottom condensing unit cassette quarterly to clear accumulated lint from the condenser fins using a soft brush or vacuum.

Frequently Asked Questions

1. What is the GEMS energy rating for the Thermaster DC-250B?

The Thermaster DC-250B boasts an exceptional 8-Star GEMS energy rating, consuming only 10.65 kWh per 24 hours thanks to its eco-friendly R290 refrigerant, EC fan motors, and Low-E glass doors.

2. Can multiple Thermaster DC-250B display chillers be joined together?

Yes. The DC-250B features a modular design that allows multiple units to be joined (multiplexed) side-by-side to create seamless, continuous multi-door refrigeration runs across supermarket aisles.

3. What electrical supply does this 4-door chiller require?

Despite its large 2,585L volume, the DC-250B requires only a standard single-phase 240V / 10 Amp wall socket (total power consumption of 1,060W).

4. What are the shelf angle options on this unit?

Each of the 5 display shelf levels (450 mm depth) can be individually adjusted to three distinct angle positions:  0°, 7° (slight tilt), or 14° (steep tilt) for optimal product visibility and gravity-feed merchandising.

5. How do I access the extended 4-Year Warranty?

The unit comes standard with a 2-Year Parts & Labour Warranty. Registering your product online with the manufacturer within 14 days of invoice unlocks an additional 2-Year Parts Only Warranty (total 4-year coverage).

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
