The Tecnodom 1580mm Commercial Open Front Multideck Display Chiller (TDVC80-CA-150) is a high-capacity, grab-and-go refrigerated merchandiser engineered specifically for Australian supermarkets, butcher shops, delicatessens, convenience stores, and commercial food retail outlets. Designed and manufactured 100% in Italy, this premium open-face multideck delivers a massive 3.1 m² of merchandising area across an ultra-reliable 0°C to +2°C temperature band, keeping fresh meats, dairy, pre-packaged meals, and deli items safely chilled while driving high-volume impulse sales.
Why operators choose the Tecnodom TDVC80-CA-150:
-
Targeted 0°C to +2°C meat & deli holding — engineered with powerful ventilated refrigeration and electronic controls to hold critical low-temperature perishables safely in Australian ambient conditions up to 30°C and 60% relative humidity (Climate Class 4).
-
Massive 3.1 m² display surface — compact depth profile provides four height-adjustable non-toxic white-painted steel shelves plus base deck, maximising shelf space without congesting retail floor aisles.
-
100% Italian design and manufacturing — heavy-duty European construction featuring insulated 40mm thick side panels, CFC-free tank insulation, and hard-wearing Colorbond bodywork for demanding commercial environments.
-
Specialised product-enhancing lighting — overhead upper internal pink neon lighting enhances the natural fresh red and pink hues of meats, smallgoods, and artisan charcuterie to boost customer appeal.
-
Energy-saving manual night blind — integrated auto-rolling night blind pulls down smoothly to seal the cabinet outside trading hours, dramatically cutting overnight energy draw and running costs.
-
Automatic electric defrosting — high-efficiency electric defrost cycle prevents frost accumulation on evaporator coils, ensuring continuous airflow and reliable cooling performance.
-
Robust 15A electrical specification — powered by an efficient 2721W commercial refrigeration system running on single-phase 240V power (requires a dedicated 15 Amp socket).
Technical Specifications
| Feature |
Specification |
| Model Code |
TDVC80-CA-150 |
| Product Type |
Commercial Open Front Multideck Display Chiller |
| Origin |
100% Designed & Made in Italy |
| Total Merchandising Area |
3.1 m² |
| Temperature Set Range |
0°C to +2°C |
| Ambient Operating Rating |
Climate Class 4 (+30°C Ambient / 60% Relative Humidity) |
| Cooling Type |
Ventilated Air-Curtain Refrigeration System |
| Defrost System |
Electric Defrosting |
| Side Wall Thickness |
40 mm Thick Insulated Side Panels Each (80 mm Total) |
| Chassis & Body |
Heavy-Duty Colorbond Finish with CFC-Free Foam Tank |
| Shelving System |
4 x Height-Adjustable Non-Toxic White-Painted Steel Shelves + Base Deck |
| Lighting |
Upper Internal Pink Neon Display Tube (Ideal for Meats & Smallgoods) |
| Energy Management |
Integrated Auto-Rolling Manual Pull-Down Night Blind |
| Controller |
Precision Electronic Digital Control Panel |

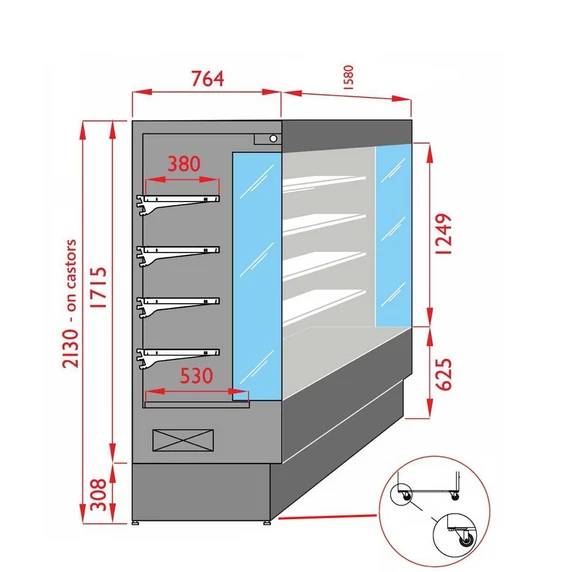

| External Dimensions (mm) |
1580 (W) x 764 (D) x 2135 (H) |
| Net Weight |
240 kg |
| Electrical Power |
240V / 50Hz Single Phase; 2721W (Dedicated 15 Amp Outlet Required) |
| Warranty |
2 Years Commercial Parts & Labour Warranty |
Operating & Service Notice
This open-deck merchandiser uses an air-curtain cooling principle. Do not block internal return air grilles or shelf discharge vents with stock, promotional ticket strips, or packaging. Always pull down the built-in manual night blind at the end of each trading shift to retain interior temperatures and reduce unnecessary compressor runtime. Routine inspection and cleaning of the condenser coil are required to maintain peak refrigeration performance.
Freight & Delivery Notice
Shipping rates vary across Australia depending on your location. Due to the external dimensions and 240kg commercial shipping weight of this unit, please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.
Frequently Asked Questions
What makes the 0°C to +2°C temperature range important for this chiller?
The 0°C to +2°C operating window is specifically tailored for raw meat, poultry, fresh sausages, smallgoods, and delicate dairy lines. This tight temperature control retards bacterial growth and preserves product shelf life far more effectively than standard 2°C to 8°C beverage multidecks.
Why is the chiller fitted with pink neon lighting?
The specialised pink-spectrum neon tube highlights the natural fresh tones in meats, cold cuts, and charcuterie without washing them out, creating an appetizing presentation that encourages customer purchase.
Does the Tecnodom TDVC80-CA-150 come with a night blind?
Yes. It features an integrated auto-rolling manual night blind that staff can easily pull down after trading hours to reduce cold air loss and lower running costs overnight.
Can the shelves be adjusted?
Yes. The unit includes four heavy-duty white-painted steel shelves that can be positioned at various heights to accommodate different product package sizes, bottles, cans, and vacuum-sealed trays.
What power supply is required for installation?
The unit draws 2721W on 240V power and requires a dedicated Australian 15 Amp single-phase power outlet installed on a compliant commercial circuit.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
