Modular Systems WBBD7-0900R/A All Premium Stainless Steel Dishwasher Bench Right Outlet (900mm)

[MODULAR_SYSTEMS_MSG]

The Modular Systems WBBD7-0900R/A All Premium Stainless Steel Dishwasher Bench is a compact, heavy-duty commercial inlet/outlet bench engineered specifically for Australian commercial kitchens, cafes, takeaway shops, bars, and catering facilities where space is at a premium. Built with a compact 900mm width, a standard 700mm depth, and a 900mm working height, this unit features a Right-Hand Sink/Outlet orientation—meaning when facing the bench, the dishwasher inlet and sink assembly are situated on the right-hand side for efficient pass-through dishwashing operations.

Constructed from premium 1.2mm SUS304 (18/8) food-grade stainless steel, the benchtop is reinforced with an internal 15mm XPS insulation board and heavy-duty stainless steel 'U' channel under-reinforcements to support a substantial 280kg load rating. Complete with an integrated 180mm high stainless steel-backed splashback, 42mm diameter stainless steel legs, and fully adjustable polished disc feet, this bench delivers exceptional rigidity and hygienic performance. Supplied flat-packed for cost-effective transport, it includes all required assembly tools and instructions and is backed by a 2-Year Parts-Only Warranty.

Why Choose the Modular Systems WBBD7-0900R/A Stainless Steel Dishwasher Bench?

Choosing the Modular Systems WBBD7-0900R/A Stainless Steel Dishwasher Bench equips compact commercial wash areas with a durable, space-saving, and highly functional benchtop solution.

Key reasons commercial kitchen operators specify the Modular Systems WBBD7-0900R/A include:

• Heavy-Duty 280kg Benchtop Load Capacity: Reinforced 1.2mm SUS304 (18/8) stainless steel surface lined with a 15mm XPS board and stainless steel 'U' channel supports safely hold dish racks, pot loads, and pass-through machinery up to 280kg.

• Compact 900mm Space-Saving Footprint: Ideal for tight kitchen layouts requiring a streamlined right-hand pass-through connection to commercial dishwashers.

• Right-Hand Outlet Orientation: Purpose-designed right-side configuration allows smooth, linear workflow integration with commercial pass-through dishwashers when facing the unit.

• Integrated 180mm Fully Enclosed Splashback: Features a 180mm high x 30mm thick bevelled, stainless steel-backed splashback that seals against rear kitchen walls to prevent water, food debris, and moisture ingress.

• Adjustable Polished Stainless Steel Disc Feet: Sturdy 42mm diameter 1.2mm stainless steel legs feature fully adjustable polished disc feet to ensure precise levelling on uneven commercial kitchen floors.

• Flat-Packed Design for Quick Assembly: Ships flat-packed for reduced shipping freight costs, including complete step-by-step instructions and all necessary assembly tools.

• Castor Kit Compatibility: Designed to fit optional lockable castor wheel kits for mobile kitchen cleaning access and flexible station configurations.

• 2-Year Warranty Protection: Supported by a 2-Year Parts-Only Warranty for reliable long-term service.

Technical Specifications

Orientation Notice: When standing in front of and facing the bench, the dishwasher inlet and sink sections are positioned on the RIGHT side.

Delivery & Freight Notice: Commercial equipment requires dedicated freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Assembly & Installation Guidelines

1. Unpacking & Component Inspection: Unpack the flat-packed bench carton on a clean, soft surface. Verify all components, including the 1.2mm SUS304 benchtop, 4 x stainless steel legs, adjustable disc feet, assembly tool kit, and instruction manual are present.

2. Leg Insertion & Tightening: Invert the benchtop onto a protective mat. Insert the 4 x 42mm diameter stainless steel legs into the pre-welded under-bench sockets. Secure each leg tightly using the provided fixing hardware and tools.

3. Upright Positioning & Levelling: Carefully flip the bench upright and position it adjacent to your pass-through dishwasher. Rotate the adjustable polished stainless steel disc feet to level the bench top across uneven floor surfaces before sealing the 180mm splashback against the wall.

Frequently Asked Questions

1. What does "Right Outlet" mean for the Modular Systems WBBD7-0900R/A bench?

"Right Outlet" means that when you are standing directly in front of and facing the bench, the dishwasher inlet connection and sink area are positioned on your right-hand side.

2. What is the maximum load weight capacity for this 900mm bench?

The Modular Systems WBBD7-0900R/A 900mm wide bench has a rated static load weight capacity of 280kg, thanks to its 1.2mm SUS304 stainless steel construction, internal 15mm XPS lining board, and stainless steel 'U' channel reinforcements.

3. What grade of stainless steel is used on the benchtop?

The benchtop is constructed from high-grade 1.2mm thick SUS304 (18/8) food-grade stainless steel, offering superior resistance to rust, corrosion, and organic acids found in commercial food environments.

4. Can castors be fitted to this dishwasher bench?

Yes. Optional heavy-duty lockable castor kits are available separately to convert the stationary leg setup into a mobile workstation for easier floor cleaning.

5. Does the bench arrive fully assembled?

No. To minimize freight costs and reduce transport damage, the bench is supplied flat-packed. However, it is specifically designed for fast assembly and comes complete with an instruction manual and the necessary tools.

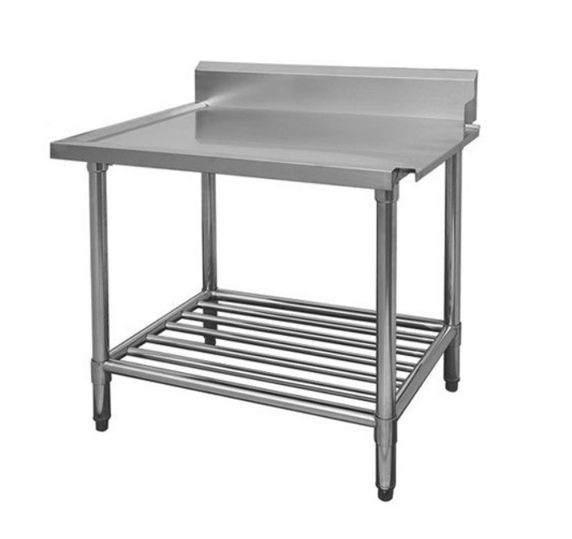

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
