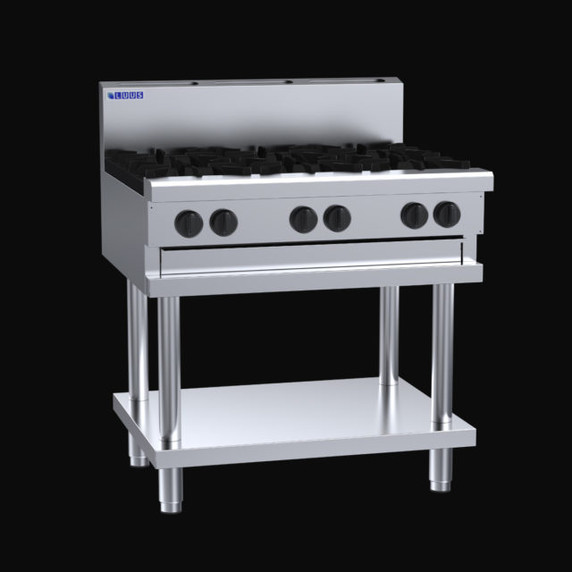

LUUS CS-6B - 6 Burner Cooktop
About LUUS CS-6B - 6 Burner Cooktop
900mm wide, high performance open burner cooktop range, with optional griddle/chargrills configurations available.
Available as a benchtop or freestanding with a large undershelf storage area.
Features:
• Nickel plated 28 mj open burners with FFD standard
• Burner, chargrill & hotplate combinations
• Available freestanding or as a benchtop model
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Open Burners:
• Nickel plated cast iron 28 mj dual-flame ring burners
• Flame failure device standard (pilots optional extra)
• Variable flame control valve with low flame setting
• Heavy duty cast iron trivets
• Pressed 0.7mm 304 stainless steel spillage bowls
Overall Construction:
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Secondary catchment tray 0.9mm stainless steel
Dimensions:
• 900mm x 800mm x 1100mm H
• 900mm x 800mm x 560mm H (benchtop)
• Working height 900mm
• Weight 118kg
• Packed dimensions 940mm x 860mm x 1260mm H
• Packed weight 143kg
Connections:
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing:
• Removable burner hoods and spillage bowls
• Secondary undertray to catch any additional waste
• Easy access to all parts & components from front
Options/ Accessories:
• Rear castors
• Pilots to open burners
• 300mm drop on plate (6mm mild steel) for open burners
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Ceramic rocks (specify when ordering)
• Benchtop mount (specify when ordering)
Nat Gas: 168 mj
LP Gas: 168 mj
Please advise your preferred gas type when ordering.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
