Gasmax KB-5 5 Burner Natural Gas Kebab Machine 56kg | 10A

[GASMAX_MSG]

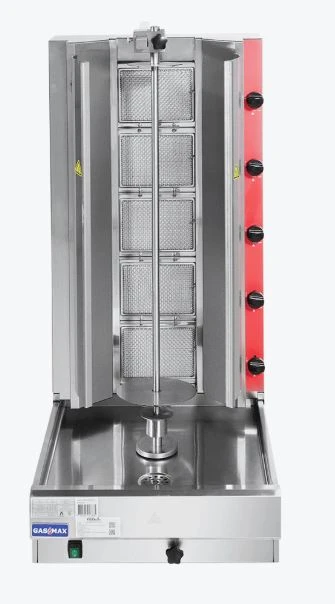

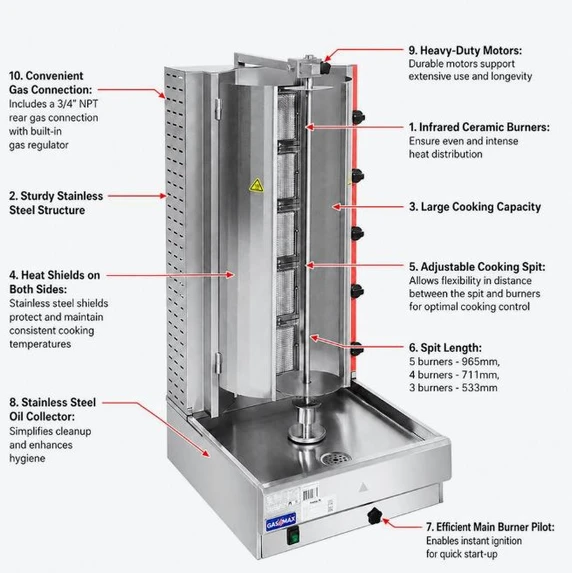

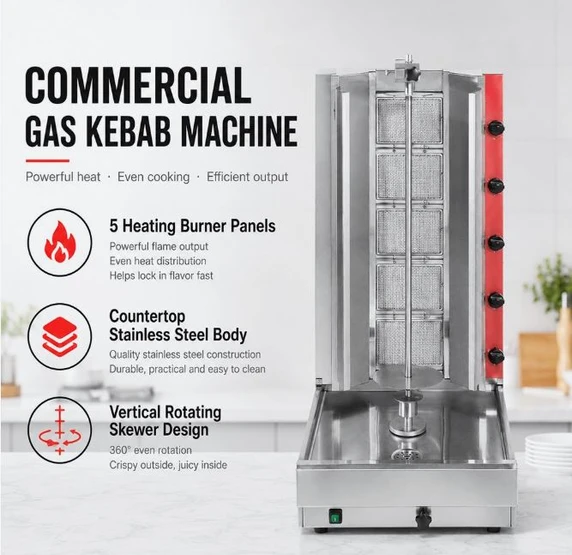

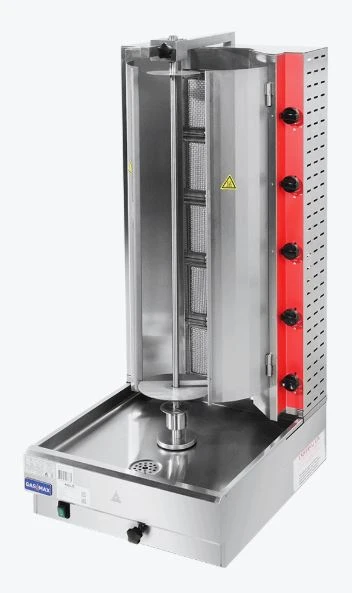

The Gasmax KB-5 Semi-Automatic 5 Burner Natural Gas Kebab Machine (Vertical Broiler / Doner Kebab Machine) is a high-capacity, heavy-duty commercial rotisserie engineered specifically for Australian kebab shops, takeaway outlets, Mediterranean restaurants, Greek tavernas, food trucks, and catering venues operating on reticulated mains Natural Gas. Measuring 537 mm Wide x 639 mm Deep x 1170 mm High and weighing 44 kg, this vertical roasting spit boasts a massive 56 kg meat holding capacity powered by five independent infrared ceramic burners drawing an economical total of 65 Mj/h. Featuring a 965 mm heavy-duty skewer, precision spit-to-burner distance adjustment, dual protective stainless steel heat shields, an efficient standing pilot system, and an integrated heavy-duty electric rotisserie motor running on a standard 10A plug, the KB-5 delivers succulent, slow-roasted internal meat paired with a crispy, caramelised outer crust for authentic doner kebabs, gyros, shawarma, and tacos al pastor.

Why Australian takeaway venues, kebab shops, and hospitality operators choose the Gasmax KB-5:

• Generous 56 kg meat cone capacity — expansive 965 mm skewer accommodates large meat stacks up to 56 kg, providing the volume required to sustain heavy lunchtime trade and high-turnover evening rushes without premature reload downtime.

• High-efficiency 65 Mj/h Natural Gas infrared system — five independently controlled ceramic infrared burners deliver radiant, uniform heat penetration, searing meat exteriors to a golden crisp while sealing in natural juices and reducing gas consumption.

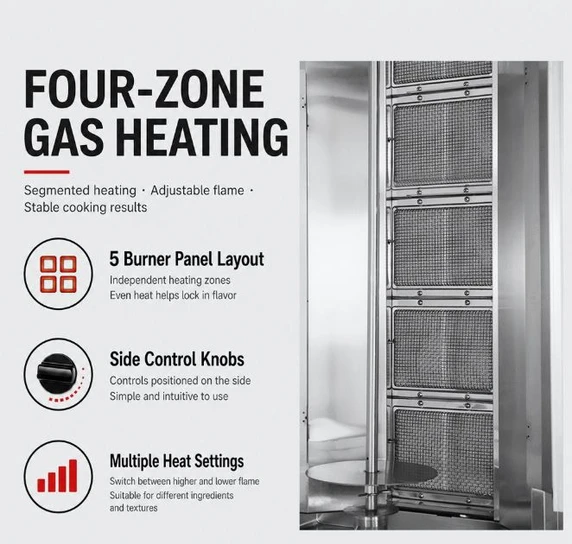

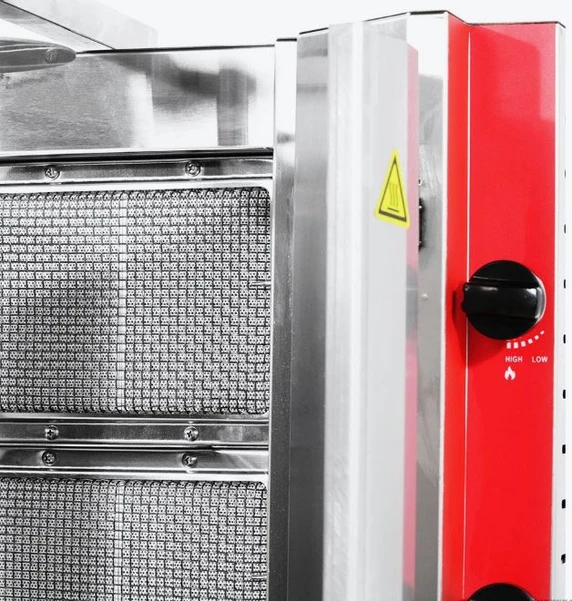

• Independent zone control (5 heat dials) — individual control valves allow operators to regulate each burner tier separately, providing the flexibility to shut down lower or upper burners as the meat cone is gradually shaved down throughout service.

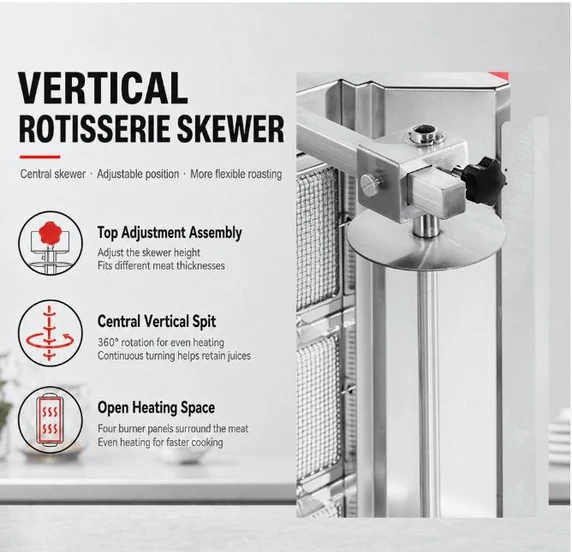

• Adjustable spit carriage — smooth manual slide mechanism allows operators to adjust the horizontal distance between the meat skewer and ceramic burners, delivering precise heat regulation across different meat stack diameters.

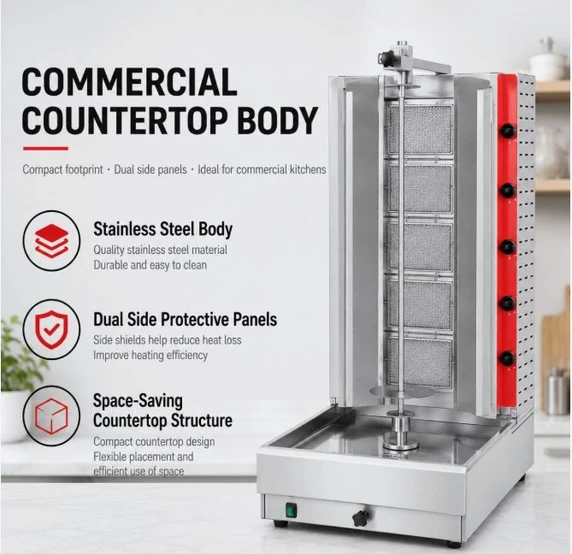

• Stainless steel protective heat shields — heavy-duty side shields retain radiant heat within the cooking zone for faster roasting cycles while protecting adjacent food prep benches and kitchen staff from heat exposure.

• Heavy-duty commercial electric rotisserie motor — robust continuous-duty drive motor ensures smooth, steady 360-degree rotation under heavy 56 kg meat loads, preventing uneven cooking, flat spots, or motor stalls.

• Fast pilot ignition — efficient standing pilot system enables immediate, reliable ignition across all five main burners, speeding up morning start-up and streamlining kitchen prep hygiene.

• Commercial food-grade stainless steel build — high-grade stainless steel casing, fat catchment base, and spit assembly resist corrosive meat salts, marinades, and high grease exposure while facilitating rapid sanitisation.

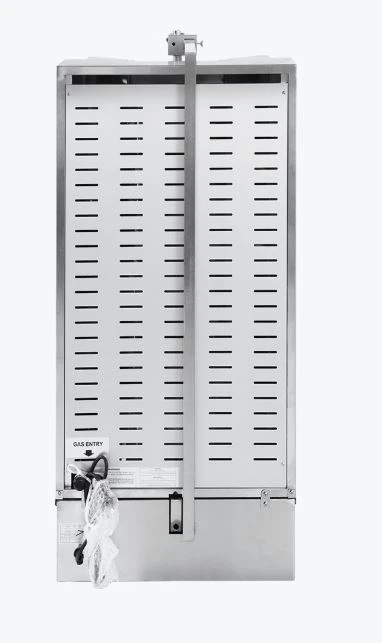

• Integrated gas regulation & standard 10A electrics — features a rear 3/4" NPT gas connection with an integrated gas regulator, paired with a standard Australian 240V 10 Amp plug-and-lead to power the continuous-duty motor.

• Extended 4-year warranty protection — backed by an Australian 2-Year parts and labour commercial warranty, extendable to an additional 2-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

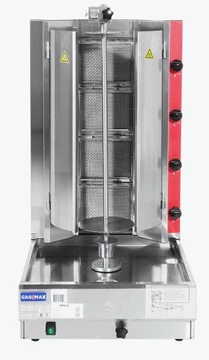

Gasmax KB Series Spit Length Comparison

Daily Care, Maintenance & End-of-Shift Sanitisation

1. Ceramic Burner Protection: Never spray water, degreasers, or liquid cleaning detergents directly onto the infrared ceramic burner tiles. Liquid penetration can cause the porous ceramic plates to crack or crumble when heated. Brush off surface meat splatters or carbon gently with a dry, soft nylon brush only when the unit is completely cold.

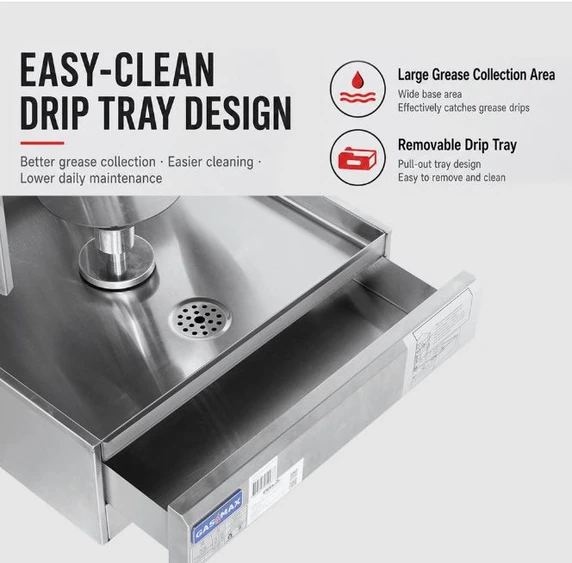

2. Skewer & Base Pan Cleaning: At the close of service, remove the 965 mm spit, base catch pan, and meat skewer plate. Soak and wash them in a commercial pot-wash sink with warm water and an approved commercial food-safe degreaser. Rinse thoroughly and dry completely before reassembly.

3. Stainless Steel Body & Heat Shields: Wipe down the external stainless steel panels, side heat shields, and rear deflector casing daily with warm soapy water and a soft microfibre cloth, rubbing in the direction of the metal grain. Avoid abrasive scourers, wire wool, or caustic chemical sanitisers that could scratch the stainless steel finish.

4. Motor Care & Lubrication: Ensure marinades, oil drips, and cooking juices do not enter the motor housing. Wipe the exterior drive shaft collar clean daily to avoid grease ingress that can strain the internal drive gears.

5. Carriage Slide Maintenance: Keep the horizontal spit-adjustment rails free of solidified fats and food scraps. Wipe the sliding track clean daily to ensure smooth, effortless adjustment during busy trading periods.

Gas Installation, Ventilation & Commissioning Notice

The Gasmax KB-5 is a commercial gas and electrical appliance requiring certified trade installation:

1. Licensed Gas Fitter Commissioning: The unit must be installed, pressure-tested, and commissioned by an authorised, licensed gas fitter in strict compliance with current AS/NZS 5601 gas installation regulations, local council health bylaws, and manufacturer specifications. An official gas compliance certificate must be retained to validate warranty coverage.

2. Gas Supply Line & Sizing: Calibrated for reticulated Natural Gas and fitted with a 3/4" NPT rear gas inlet and built-in regulator. Ensure incoming gas supply lines maintain rated operating pressure without pressure drops when running at full 65 Mj/h capacity alongside other kitchen equipment.

3. Electrical Supply: The heavy-duty continuous rotisserie motor runs on standard Australian single-phase 240V power and comes factory-fitted with a 10 Amp plug and lead, plugging directly into a conventional 10A commercial wall outlet.

4. Commercial Canopy Requirements: Generating intense radiant heat, rendered animal fats, grease vapours, and combustion products, the machine must be operated directly beneath an approved commercial kitchen exhaust extraction hood compliant with AS 1668.2.

5. Operating Clearances: Maintain minimum clearances of at least 150 mm from combustible walls and 50 mm from non-combustible partitions. Ensure the unit sits level on a heat-resistant, commercial-grade stainless steel benchtop capable of supporting the machine and a fully loaded 56 kg meat cone.

Freight & Delivery Notice

Standard commercial freight delivery is available Australia-wide to commercial business addresses with level ground access or loading docks. Due to the unit's height (1170 mm), delicate infrared ceramic elements, and transport dimensions, deliveries to residential or non-commercial addresses require a customised tail-lift courier quote. Please contact our friendly commercial sales team prior to placing your order to confirm site access details, doorway clearances, and delivery logistics.

Frequently Asked Questions

What are the operational benefits of ceramic infrared burners for cooking kebabs?

Infrared ceramic burners emit direct radiant heat rather than convection air currents. This intense radiant energy penetrates the exterior layers of the meat cone quickly, sealing in natural juices and rendering fats without drying out the core. This achieves the crispy exterior and tender, juicy interior required for authentic doner, shawarma, and gyros.

How does the independent burner control save gas during quiet trading periods?

The KB-5 features five independent control dials—one for each ceramic burner tier. As meat is shaved off the top and sides throughout the day, or during slower afternoon trading windows, operators can turn down or switch off individual burner sections while keeping the remaining meat warm. This reduces gas consumption and prevents overcooking smaller meat stacks.

Why is the adjustable spit-to-burner carriage important?

As the meat cone is shaved away during service, the diameter of the meat column naturally decreases. The adjustable sliding carriage allows operators to slide the skewer closer to the ceramic burners to maintain consistent searing intensity, or move it further away when loading a wide, fresh 56 kg cone to avoid burning the surface.

What electrical supply is needed to run the rotisserie motor?

The rotation motor requires minimal electrical draw and operates on standard Australian single-phase 240V mains power. It comes pre-wired with a standard 10 Amp plug, allowing immediate plug-and-play operation into any standard commercial power point.

How do I activate the 4-year warranty coverage?

The Gasmax KB-5 comes standard with a 2-Year commercial parts and labour warranty. Venue operators who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 2-Year parts-only warranty extension, providing up to 4 years of comprehensive commercial protection across Australia.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
