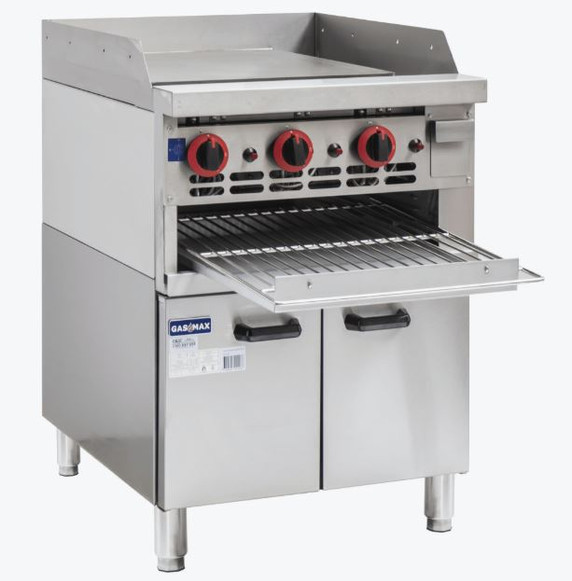

The Gasmax GGS-24 Commercial Gas Griddle & Broiler Combination is a heavy-duty, versatile cooking machine engineered for Australian cafes, restaurants, pubs, burger shops, and catering venues. Delivering a total power output of 45MJ/h across 3 heavy-duty burners, this unit combines a 19mm thick mild steel griddle plate with an integrated lower broiler section, allowing chefs to grill, sear, and toast simultaneously on a single space-saving footprint.
Built with a rugged welded frame, double-door lower storage cabinet, and complete flame failure safety protection on every burner, the GGS-24 delivers outstanding heat retention, rapid thermal recovery, and reliable continuous operation.
Key Features & Benefits
-
Heavy-Duty 19mm Mild Steel Griddle Plate: Superior thermal mass ensures optimal heat retention and uniform heat recovery across the entire 610mm cooking surface.
-
Dual Griddle & Broiler Functionality: Features an 8.25-inch high lower broiler opening with a smooth slide-out rack, perfect for melting cheese, browning, and salamander-style broiling.
-
3 Heavy-Duty Cast Iron Burners: Powered by 3 cast iron open burners (14.8MJ/h each) with individual control knobs for precise zonal temperature management.
-
Flame Failure Safety Controls: Fitted with flame failure control valves on every burner to ensure full compliance with strict Australian commercial gas safety standards.
-
Piezo Ignition & Continuous Pilot: Features an easy-start Piezo igniter and continuous pilot light for quick, hassle-free morning startups.
-
Hygienic & Simple Maintenance: Equipped with a large grease collector, front pull-out crumb tray with an angled handle, and a Bakelite cool-touch handle for safe daily operation.
-
Durable Cabinet Construction: Built with a stainless steel front, galvanised sides, double-door lower storage cabinet, and heavy-duty adjustable legs.
Technical Specifications
| Feature |
Specification |
| Model |
Gasmax GGS-24 |
| Total Gas Output |
45 MJ/h |
| Burner Configuration |
3 x Heavy-Duty Cast Iron Burners (14.8 MJ/h each) |
| Griddle Plate Thickness |
19 mm Heavy-Duty Mild Steel |
| Broiler Section |
8.25-Inch High Broiler Opening with Sliding Rack |
| External Dimensions (mm) |
610 (W) x 815 (D) x 970 (H) |
| Gas Connection |
3/4-Inch NPT Rear Gas Connection |
| Ignition / Safety |
Piezo Igniter, Continuous Pilot, Flame Failure Valves |
| Storage Base |
Double-Door Stainless Steel Cabinet |
| Net Weight |
126 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Extra Parts Warranty (upon registration within 14 days of invoice) |
Delivery & Freight Notice: Freight options vary depending on location. Due to the unit's size and weight (126kg), please contact our friendly commercial sales team directly for a custom freight quote if delivery is required for a residential or non-commercial address.
Installation & Mandatory Gas Compliance
-
Licensed Gas Fitter Required: This commercial gas appliance must be installed and commissioned by a licensed gas fitter in strict accordance with AS/NZS 5601 gas installation standards.
-
Griddle Plate Seasoning: Prior to initial use, thoroughly clean off protective factory oils and season the 19mm mild steel plate with food-grade cooking oil to establish a non-stick cooking surface.
-
Daily Maintenance: Scrape down the griddle plate after service shifts into the removable grease collector. Empty and wash the front crumb tray and grease drawer daily.
-
Warranty Registration: Register your unit online within 14 days of invoice to extend your standard 2-Year Parts & Labour warranty with an additional 2 Years of spare parts coverage.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
