Preserve pastry, cake, and bread quality with the FED-X XPA800TN 737L Single Solid Door Commercial Bakery Chiller Cabinet. Designed specifically for wholesale bakeries, pastry shops, patisseries, and commercial kitchens, this upright bakery fridge is engineered to accommodate 10 adjustable 600mm x 800mm bakery pans and trays, providing seamless workflow transition from prep to cooling.
Constructed with a full stainless steel interior and exterior featuring coved bottom corners for easy washdowns, the XPA800TN is certified 4M1 food-safe with a 3-Star GEMS energy rating. Equipped with a Dixell digital controller, R290 natural refrigerant, and heavy-duty fan-forced cooling, it reliably maintains holding temperatures between -2°C and +5°C in high-heat commercial bakery environments up to +43°C.
Key Benefits
-
600mm x 800mm Bakery Tray Compatibility: Internal tray slide system holds up to 10 adjustable 600mm x 800mm European-standard baking sheets or trays for direct kitchen-to-chiller transfer.
-
Certified 4M1 Food-Safe & 3-Star GEMS: Tested and certified to strict 4M1 food safety standards, delivering verified storage conditions and energy efficiency (2.993 kWh / 24h).
-
Tropicalised +43°C Ambient Rating: Built to maintain holding temperatures in ambient kitchen and bakery environments up to +43°C at 70% relative humidity.
-
Reversible Self-Closing Solid Door: Heavy-duty reversible door features an integrated fan and light safety micro-switch, a key lock, and replaceable magnetic door seals.
-
Fan-Forced Cooling & Automatic Defrost: Dynamic forced-air circulation maintains consistent temperatures across all tray levels while automatic defrosting prevents ice buildup.
-
Heavy-Duty Commercial Stainless Steel Construction: Premium stainless steel exterior and interior with coved/rounded bottom corners eliminate dirt traps for quick sanitation.
-
Precision Dixell Digital Controls: Intuitive Dixell digital temperature control panel and external readout allow staff to monitor holding performance at a glance.
-
Eco-Friendly R290 Refrigerant & 60mm Insulation: Natural R290 hydrocarbon refrigerant combined with 60mm CFC-free insulation minimizes energy consumption and environmental impact.
Technical Specifications
| Feature |
Specification |
| Brand / Model |
FED-X XPA800TN |
| Gross / Net Volume |
737 Litres / 612 Litres |
| Tray / Pan Compatibility |
Fits 10 Adjustable 600mm x 800mm Bakery Pans |
| External Dimensions (mm) |
740 (W) x 990 (D) x 2010 (H) |
| Temperature Set Range |
-2°C to +5°C |
| Cooling Mechanism |
Dynamic Fan-Forced Cooling (Automatic Defrost) |
| Controller / Refrigerant |
Dixell Digital Controller / Eco-Friendly R290 |
| Power Supply / Electrical |
240V / 50Hz / 295W (Standard 10A Plug) |
| Energy Rating / Consumption |
3-Star GEMS Rating / 2.993 kWh / 24h |
| Food Safety Certification |
Certified 4M1 Food-Safe |
| Insulation Thickness |
60 mm CFC-Free Polyurethane |
| Door Style |
Single Reversible Lockable Self-Closing Solid Door |
| Ambient Operating Temp |
Approved for +43°C Ambient (70% Relative Humidity) |
| Net Weight |
134.0 kg |
| Warranty |
2 Years Parts & Labour (+ 2 Years Parts Only upon registration within 14 days of invoice) |
Delivery & Operational Notes
-
Baking Trays: Bakery trays and pans are sold separately. Contact our sales team for quotes on compatible 600mm x 800mm baking sheets.
-
Residential Delivery: Delivery to residential or non-commercial addresses requires a custom freight quote. Please contact our sales team before placing your order.
-
Extended Warranty: Standard warranty covers 2 Years Parts and Labour. Receive an additional 2 Years Parts-Only protection by registering your product online within 14 days of invoice.

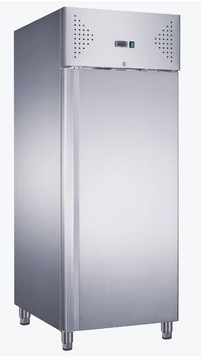

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
