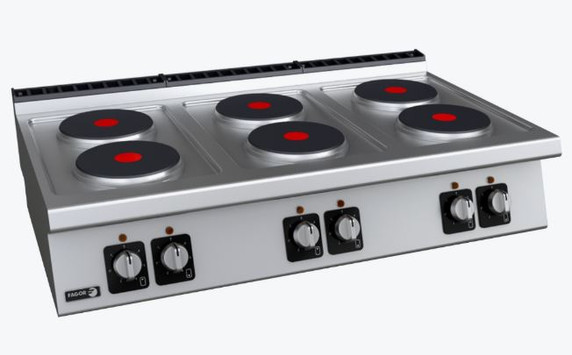

Fagor Kore 700 Series Bench Top 6 Electric Plate Cooktop (C-E760)

[GLOBAL_MSG_2]

The Fagor Kore 700 Series C-E760 Bench Top 6 Electric Burner Cooktop is a heavy-duty, commercial-grade electric boiling top engineered specifically for high-volume Australian commercial kitchens, restaurants, catering venues, hotels, and institutional canteens. Sized at 1,200 mm Wide x 730 mm Deep x 290 mm High and weighing 51 kg, this benchtop electric range delivers robust cooking capacity, superior thermal efficiency, and modular flexibility across busy service lines.

Constructed from premium 1.5 mm thick AISI-304 stainless steel with laser-cut joints, automatic hidden welding, and a deep-drawn top deck with rounded corners, the C-E760 features six hermetically sealed 223 mm diameter cast iron hotplates (2.6 kW each). Designed for effortless cleaning and protection against internal liquid spills, each cooking zone offers 7-position power selectors, individual overheating protection, IPX5 water resistance, and a high-temperature enamelled cast iron flue protector. Operating on a 415V / 3-Phase electrical supply (15.6 kW total load), it comes backed standard by up to a 4-Year Commercial Warranty (2 Years Parts & Labour plus 2 Years Parts Only upon registration).

Why Choose the Fagor Kore 700 Series C-E760 6-Plate Electric Cooktop?

Selecting the Fagor Kore 700 Series C-E760 Electric Boiling Top equips kitchen designers, venue owners, and executive chefs with an ultra-durable, hygienic, and precise electric cooking platform built to withstand continuous heavy usage.

Key benefits of the Fagor Kore 700 Series C-E760 include:

• Six High-Output Cast Iron Hotplates (15.6 kW Total): Features 6 hermetically sealed 223 mm diameter round cast iron plates, each delivering 2.6 kW of consistent thermal power for multi-pot cooking, searing, and simmering.

• 1.5mm AISI-304 Stainless Steel Construction: Heavy-duty pressed top deck manufactured from 1.5 mm thick AISI-304 stainless steel with rounded edges to prevent liquid spills from penetrating internal electrical components.

• IPX5 Water Protection Rating: Holds an official IPX5 water ingress protection rating, allowing kitchen staff to wash down the unit safely with low-pressure water hoses during shift resets.

• 7-Position Power Regulation & Safety Protection: Independent 7-stage selector dials provide fine control over heat output, supported by automated internal overheating protection sensors on every plate.

• Precision Laser-Cut Joints & Hidden Screws: Features seamless laser-cut edge joints and hidden hardware for a flush fit when lined up alongside other Fagor Kore 700 series modules.

• Enamelled Cast Iron Flue Protector: High-temperature enamelled cast iron flue guard handles extreme heat while venting excess internal cabinet air safely.

• Optional Stand Available: Designed for benchtop operation, or can be mounted onto an optional stainless steel base stand (sold separately) for a free-standing modular setup.

• Up to 4-Year Warranty Coverage: Backed standard by a 2-Year Parts & Labour Warranty, extending to a total 4-Year Warranty (2 Years Parts & Labour + 2 Years Parts Only) when registered online within 14 days of invoice.

Technical Specifications

Electrical Installation Notice: Under Australian standards (AS/NZS 3000), commercial 3-phase electric equipment must be hardwired and installed by a licensed electrician. This unit requires a 415V 3N~ supply with a total connected load of 15.6 kW.

Freight & Delivery Notice: Commercial heavy cooking equipment requires dedicated freight transport. Please contact our friendly sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Cleaning Guidelines

1. Hardwiring & Commissioning: Have a certified electrician hardwire the 415V 3-phase power supply to the internal terminal block. Position the unit on a flat, heat-resistant bench top or optional Fagor Kore 700 base stand and verify proper rear clearance.

2. Daily Cooking Operation: Place flat-bottomed commercial pots and pans directly onto the 223 mm cast iron hotplates. Rotate the corresponding 7-position dial to your desired heat output (1 for gentle holding, 7 for rapid boiling).

3. Cleaning & Maintenance: Allow the cast iron plates and stainless steel deck to cool down completely. Wipe the 1.5 mm pressed top and rounded corners with a non-abrasive cloth and mild commercial degreaser. Thanks to the IPX5 rating, external surfaces can be wiped down or cleaned with low-pressure spray hoses safely.

Frequently Asked Questions

1. What is the Fagor Kore 700 Series Bench Top 6 Electric Burners C-E760?

The Fagor Kore 700 Series C-E760 is a commercial 6-plate electric benchtop cooktop featuring six 2.6 kW cast iron hotplates mounted on a heavy-duty 1.5 mm AISI-304 stainless steel frame, engineered for heavy commercial kitchen service.

2. How do I clean the Fagor Kore 700 Series electric cooktop?

The deep-drawn pressed top deck features rounded corners and a liquid-retention rim to prevent spills from reaching internal components. Combined with its IPX5 water protection rating, cleaning is fast, safe, and efficient using damp microfibre cloths or low-pressure water hoses.

3. What electrical supply does the C-E760 require?

The Fagor C-E760 requires a 415V / 3-Phase electrical connection with a total power capacity of 15.6 kW (each of the six plates draws 2.6 kW). It must be hardwired by a licensed electrician.

4. What safety features are built into the Fagor C-E760?

Each cooking zone includes an independent internal overheating protection sensor that cuts power if temperatures exceed safe operational limits. It also holds an IPX5 water ingress rating for safe kitchen cleaning.

5. Can I install the C-E760 on a base stand?

Yes. While designed for countertop and benchtop installation, an optional Fagor Kore 700 Series stainless steel base stand is available for venues requiring a floor-standing modular cooktop setup.

N.B Image is for illustrative purposes only. Specifications are subject to change without notice.
