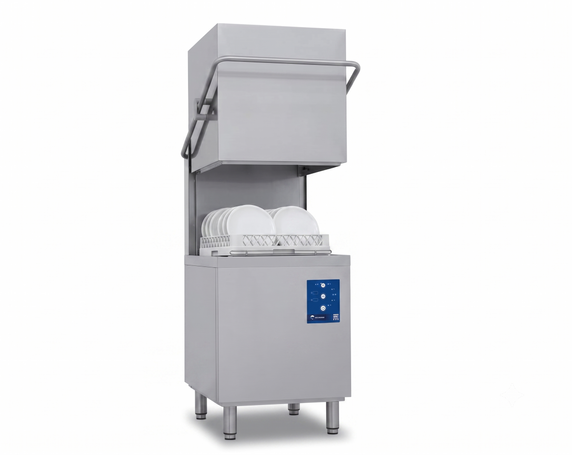

Eurowash EW393E Passthrough Commercial Dishwasher

Introducing the Eurowash Passthrough single phase hood type commercial dishwasher with electronic interface.

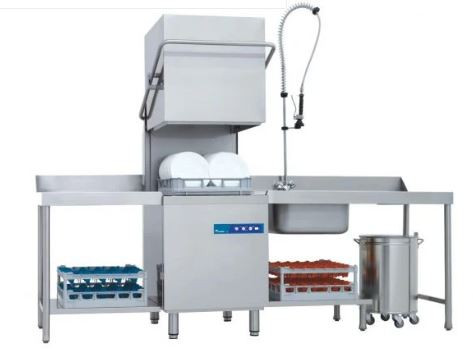

Ease of use and versatility and availability of a wide range of service tables permit use in any environment with installation in line or in a corner configuration. With the useful height of 45 cm, you can also wash trays and utensils.

Water consumption for rinsing of only 2.5 l per rack, thus reducing water, power, detergent consumption and also running costs.

The machine is built in with a partial drain system.

User Interface

Easy to use, reliable and complete, with three soft touch keys and a 4-character LED display, located on the lower body, which shows the wash and rinse temperatures. Carefully chosen graphic symbols provide a clear indication of the dishwasher status and wash cycle progress at a glance.

In addition to the operating parameters, such as the temperature of the tank and boiler or the number of cycles completed, the indications provided by the automatic diagnosis system are also displayed.

It is possible to adjust the dosing of detergent and rinse aid, while our specialised technicians can modify all the operating parameters of the machine.

Ideal for cafes, restaurants and commercial kitchens.

Wash cycles (seconds): 60 – 120 – 150 – continuous.

Standard equipment includes 1 x plate, 1 x universal rack and a cutlery basket.
ProClean Self-clean cycle is provided as standard.

Key Features:

• 3 wash cycles: 60, 120, and 150 seconds
• Wash temperature of 55°C for efficient cleaning
• 500 x 500mm rack size for high-volume dishwashing
• 15-litre tank volume with optimal water supply pressure (2-4 bar)
• 2.2 litres of rinse water per rack for efficient use
• Integrated drain pump for easy operation
• Total load: 240V / 50Hz / 1PH / 3.2W / 15A

Dimensions: 706 mm W x 800 D x 1479 H (1909 open)

Rack Size: 500 x 500 mm

Colour: Silver

Gross Weight: 100kg

Door Opening Height: 450 mm

Max Productivity: Rack/h: 60

Tank Capacity: 20 Ltr

Booster Capacity: 6 Ltr

Rinse Water Consumption: L/Cycle: 2.2

Electric Power: 3.1kW

Voltage: 240V/ 50Hz/ 1N

Watts: 3.2 kilowatt

Gross Weight Kg: 100

Net Weight Kg: 90

Fuse AMP: 15 Amps

Warranty: 2 Years

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
