Electmax EFS-8 Commercial French Fries Station 800mm | 10A Heated

[GLOBAL_MSG_2]

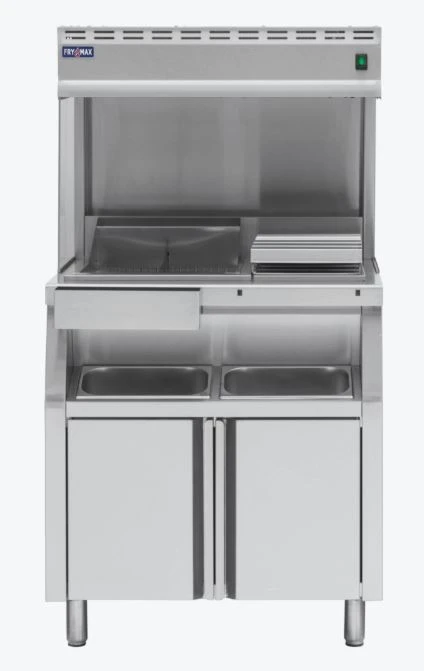

The Electmax EFS-8 Commercial Electric French Fries Station (800mm Wide) is a high-volume hot chip holding, salting, and bagging workstation engineered specifically for Australian quick-service restaurants (QSR), takeaway burger shops, fish and chip outlets, food trucks, roadhouse diners, and high-tempo commercial catering lines. Measuring 800 mm Wide x 720 mm Deep x 1500 mm High and weighing 68 kg, this freestanding heated chip dump station pairs dual top ceramic heating elements (550W x 2) with a dedicated 110W bottom contact heater beneath the holding well. Built from heavy-duty commercial-grade stainless steel with an integrated transparent polycarbonate sneeze guard, four illuminating display heat lamps, an internal product separator, a raised-edge chip dump well with a dedicated pre-pack zone, two 1/3 size 150mm deep Gastronorm pans, and a lower two-door storage cabinet, the EFS-8 operates on a total 1.45 kW electrical load via a standard Australian single-phase 10A plug-and-play circuit.

Why Australian takeaway shops and fast-food venues choose the Electmax EFS-8:

• Dual-action top and bottom heating system — combines dual overhead 550W ceramic heating elements with a targeted 110W under-pan base heater to bathe freshly fried chips in consistent, gentle radiant warmth, keeping them crisp and golden without burning or becoming soggy.

• Overhead illumination array (four lamps) — four bright display lamps clearly illuminate the chip dump and packing deck, providing chefs with visibility for seasoning and bagging while keeping fries warm and visually appealing during busy rushes.

• Organised chip dump well with removable divider — spacious dump basket features a partition to segregate different fried products (such as sweet potato wedges, regular hot chips, onion rings, or potato scallops) within the same heated well.

• Raised well edge with dedicated bagging area — designed with elevated perimeter borders to contain stray fries and salt during vigorous scooping, complete with an integrated staging deck to make bag packing and end-of-shift sanitisation fast and mess-free.

• Front accessory station with 2 x 1/3 GN pans (150mm deep) — supplied complete with a front stainless steel holder and two 1/3 size 150mm deep Gastronorm pans, providing dedicated storage for seasoning salts, chip scoops, tongs, and takeaway bags directly within the cook's reach.

• Protective clear polycarbonate shield — durable, high-clarity front safety barrier shields hot food from airborne contaminants and customer droplets while providing unobstructed visibility across the packing counter.

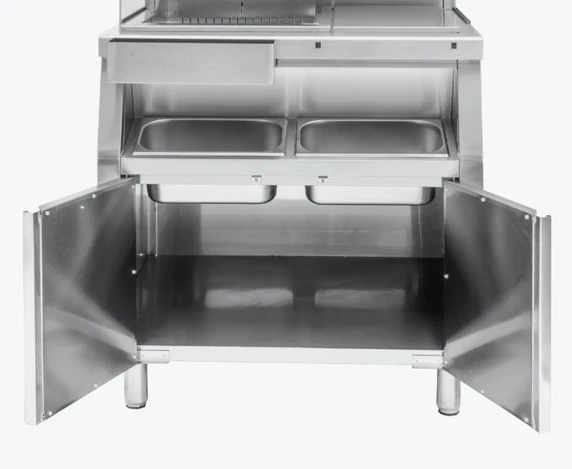

• Integrated lower storage cabinet — bottom cupboard with hinged stainless steel doors provides out-of-sight under-counter storage for spare cartons, chip boxes, oil bottles, and bulk packaging supplies.

• Heavy-duty stainless steel build — full commercial food-grade stainless steel construction throughout resists high cooking temperatures, salt corrosion, and grease buildup while complying with commercial health standards.

• Sturdy height-adjustable stainless steel legs — heavy-duty threaded legs allow operators to adjust and level the workstation on sloping or uneven commercial kitchen floors.

• Standard 10A plug-and-play installation — draws an economical 1450W (1.45 kW) on standard Australian single-phase 240V power with a factory-fitted 10 Amp plug, eliminating the expense of dedicated 15A wiring.

Technical Specifications

Daily Care, Maintenance & End-of-Shift Sanitisation

1. Pre-Cooked Hot Product Holding: The Electmax EFS-8 is engineered strictly to hold freshly fried, piping-hot food above 60°C. It is not designed to cook or reheat cold items. Always transfer fries directly from the deep fryer baskets into the dump station immediately after draining off excess oil.

2. End-of-Service Well Cleaning: Switch off the unit at the mains switch and allow the ceramic heaters and stainless steel pan to cool completely. Lift out the removable product divider and chip dump pan, scrape out collected salt crystals and loose crumb debris, and wash the pan assembly in a commercial pot-wash sink with warm water and a neutral food-safe degreaser.

3. Polycarbonate Shield Care: Wipe down the front clear shield using a soft microfibre cloth dampened with warm water and a mild dishwashing detergent. Never use abrasive scourers, harsh scrub sponges, glass cleaners containing ammonia, or caustic oven sprays, as these will permanently scratch and cloud the polycarbonate surface.

4. Stainless Steel Cabinet & Storage Base: Wipe down the exterior panelling, side walls, and lower storage cupboard doors with warm soapy water, rubbing in the direction of the stainless steel grain. Dry thoroughly with a clean cloth to prevent salt-induced pitting or water spotting.

5. Ceramic Element Inspection: Inspect the overhead ceramic heaters and four lamp sockets weekly when the station is turned off and cold. Ensure ceramic elements are free of grease splatter, and wipe away dry residue gently using a dry, soft cloth. Never spray water or liquid cleaning chemicals directly up into the electrical heating assembly.

Electrical & Kitchen Placement Guidelines

The Electmax EFS-8 is built for immediate commercial integration into Australian fast-food lines:

1. Electrical Supply: Operates on standard Australian single-phase 240V mains power with a total power consumption of 1450W (1.45 kW). Supplied complete with a factory-fitted 10 Amp plug and lead, allowing direct connection to any dedicated 10A commercial wall outlet without the need for a 15A circuit.

2. Fryer Line Positioning: Best positioned immediately adjacent to commercial deep fryers to establish an ergonomic workflow: lifting fried baskets, dumping onto the perforated well, seasoning with salt, and packing into takeaway cartons in a single, fluid motion.

3. Heat & Clearance Precautions: While the unit features insulated panels and an overhead canopy, ensure adequate clearance from combustible materials. Position the station on a flat, non-combustible commercial floor surface and adjust the threaded feet until the working surface is completely level.

4. Cover Plate Storage: Use the included stainless steel top cover plate during pre-heating periods or between meal rushes to trap radiant heat within the dump pan, cutting power use and keeping the well ready for the next batch of fries.

Freight & Delivery Notice

Standard commercial freight delivery is available Australia-wide to commercial business addresses with level ground access or loading docks. Due to the unit's height (1500 mm), crated transport dimensions, and delicate overhead heating components, deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to ordering to verify site access, delivery doorway clearances (minimum 750 mm clear doorway opening required), and receiving logistics.

Frequently Asked Questions

Why does this chip dump station feature both top and bottom heating elements?

Standard heat lamp setups only provide warmth from above, which can leave the bottom layer of fries sitting in a cold metal pan where they quickly absorb grease and turn soggy. The Electmax EFS-8 combines two 550W top ceramic infrared heaters with a 110W under-pan contact heater. This top-and-bottom heat envelope keeps the entire batch crisp and uniformly hot right down to the base of the pan.

What are the advantages of ceramic heating elements over standard quartz heat lamps?

Ceramic heating elements emit long-wave infrared heat that warms the food directly and uniformly without emitting the harsh glare or excessive ambient heat of standard high-wattage quartz tubes. Ceramic elements are also physically more robust, resisting the vibration, knocks, and temperature fluctuations common around busy deep-fryer lines.

What are the front 1/3 Gastronorm pans used for?

The front stainless steel bracket holds two 1/3 size, 150mm deep stainless steel GN pans. In high-tempo fast food venues, these pans are used to hold salt shakers, proprietary seasoning blends, chip scoops, tongs, and paper takeaway bags within immediate arm's reach of the bagging station operator.

Can the internal dump pan divider be removed?

Yes. The product divider lifts out easily without tools. You can keep it installed to hold two separate products—such as beer-battered chips and potato gems—or remove it completely to create an expansive, unobstructed holding well for high-volume single-product rushes.

What is the purpose of the lower cabinet?

The enclosed stainless steel cabinet underneath the dump well utilizes previously wasted vertical footprint, providing sanitary storage for bulk chip cups, takeaway packaging boxes, extra salt supplies, and cleaning cloths right at the fry station.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
