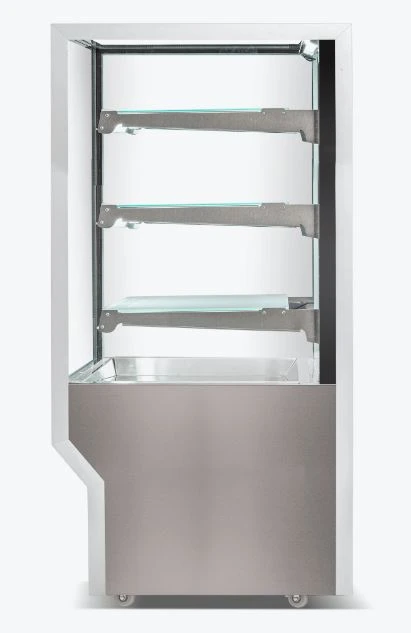

Bonvue C1510-3S Square Chilled Cake Display 1510mm 698L | 10A LED

[GLOBAL_MSG_2]

The Bonvue C1510-3S Complex Chilled Square Display Showcase (1510mm Wide, 698L Capacity) is a premium, high-visibility commercial confectionery and cake display refrigerator engineered specifically for Australian bakeries, patisseries, cafes, delis, gourmet sandwich bars, and supermarket self-service counters. Measuring 1510 mm Wide x 678 mm Deep x 1400 mm High and weighing 191 kg, this freestanding, straight-glass refrigerated display cabinet provides 698 litres of illuminated showcase volume across three height-adjustable tempered glass shelves plus the stainless steel base deck. Built with double-glazed safety glass across all four sides for condensation-resistant, 360-degree product visibility, the unit utilises a balanced ventilated cooling system and eco-friendly R290 natural refrigerant to hold food-safe serving temperatures reliably. Outfitted with warm-free under-shelf LED lighting, an intuitive digital controller, dual rear sliding access doors, an automated defrost cycle, and heavy-duty castor wheels, the C1510-3S delivers high-impact retail presentation on a standard Australian single-phase 10A plug-and-play circuit.

Why Australian bakeries, cafes, and gourmet retail food venues choose the Bonvue C1510-3S:

• Generous 698L merchandise capacity across 4 tiers — provides four expansive presentation tiers (three adjustable tempered glass shelves plus the stainless steel base deck), allowing operators to merchandise high volumes of artisan cakes, tarts, pastries, plated sandwiches, and fresh deli goods.

• Double-glazed tempered glass on all 4 sides — premium four-sided double-glazed safety glass construction minimises ambient heat penetration and surface condensation, ensuring clear, unobstructed product visibility from front and side viewing angles.

• Dedicated LED lighting on top and under every shelf — high-output, energy-efficient interior LED lighting strips are mounted directly into the canopy and beneath each individual shelf tier, casting bright, shadow-free illumination across every display level without radiating heat onto sensitive creams and frostings.

• Balanced ventilated cooling system — dynamic fan-forced air curtain circulation distributes refrigerated air evenly throughout the entire cabinet cavity, preventing thermal stratification and maintaining food-safe holding compliance in accordance with Australian Food Safety Standard 3.2.2.

• Rear double-glazed sliding access doors — smooth-sliding dual rear glass doors enable fast, ergonomic restock access and service for counter staff without interrupting customer viewing lines or creating floor-space bottlenecks.

• Three height-adjustable tempered glass shelves — sturdy commercial-grade tempered glass shelves adjust easily along internal vertical support brackets, offering flexibility for multi-tiered celebration cakes, tall beverage bottles, and delicate pastry platters.

• Automated defrost system with built-in evaporation — intelligent off-cycle automatic defrosting prevents ice build-up across internal cooling coils without requiring manual downtime or intervention.

• Durable food-grade stainless steel base — heavy-gauge commercial stainless steel lower cabinet base resists scuffs, knocks, and cleaning chemicals while providing a clean, contemporary finish that matches modern cafe fit-outs.

• Eco-conscious R290 natural refrigerant — zero ozone depletion potential (ODP) and negligible global warming potential (GWP) deliver sustainable cooling performance with an energy-efficient 425W power profile.

• Pre-fitted mobility castors with dual locking brakes — four industrial-grade swivel castors allow easy repositioning for floor cleaning, re-merchandising, and shop maintenance, with two front locking brakes to keep the cabinet firmly locked during service.

• Standard 10A plug-and-play installation — runs on standard Australian single-phase 240V mains power with a factory-fitted 10 Amp plug, eliminating the need for expensive 15A electrical alterations.

• Extendable manufacturer warranty protection — backed by a standard 1-Year commercial parts and labour warranty, extendable to an additional 1-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

Operating, Care & Preventative Maintenance

To maintain sharp display presentation, high refrigeration efficiency, and extended compressor life:

1. Pre-Chilled Product Merchandising: The Bonvue C1510-3S is engineered to hold and showcase pre-chilled pastries, cakes, tortes, sandwiches, and delicacies at food-safe temperatures. Never load hot, warm, or room-temperature bakery products directly into the display case, as this introduces excessive moisture, causes temporary glass fogging, and raises cabinet temperatures.

2. Internal Airflow Ventilation: Ensure cake stands, platters, and display trays do not cover or block the front discharge air grilles or rear return vents along the stainless steel base deck. Maintaining an unobstructed air curtain is essential for circulating cold air evenly to all shelf tiers.

3. Condenser Coil Cleaning (Every 2 to 4 Weeks): In bakery and cafe environments, airborne flour, coffee grind dust, and lint settle onto the condenser fins. Vacuum and brush down the lower condenser coil regularly using a soft brush attachment to prevent compressor strain and maintain low operating temperatures.

4. Tempered Glass Cleaning: Wipe down the internal and external double-glazed glass surfaces daily using a soft microfibre cloth and a neutral, non-abrasive glass cleaner. Avoid harsh solvents, ammonia, or abrasive scourers that can scratch the glass or damage edge seals.

5. Sliding Door Track Maintenance: Keep the bottom sliding door guide rails clean and free of cake crumbs, sugar granules, and debris. Wipe the tracks weekly to ensure smooth door gliding and maintain a tight seal against cold air leakage.

6. Stainless Steel Base Care: Wipe the exterior stainless steel base panels daily with warm soapy water and a soft microfibre cloth, rubbing in the direction of the metal grain. Avoid bleach, chlorine-based sanitisers, or wire wool pads that can pit the stainless steel surface.

Electrical & Ventilation Installation Guidelines

The Bonvue C1510-3S provides straightforward commercial plug-and-play installation:

1. Electrical Supply: Operates on standard Australian single-phase 240V mains power with an energy-efficient 425W draw. Comes factory-fitted with a standard Australian 10 Amp plug and lead, allowing immediate connection to any dedicated 10A commercial wall socket without requiring a 15A circuit upgrade.

2. Ventilation Clearances: Self-contained commercial display showcases discharge warm air through the lower mechanical housing. Maintain a minimum clearance of at least 100 mm at the rear and sides to ensure adequate heat dissipation from the condensing unit.

3. Store Placement & Climate: Avoid positioning the display cabinet in direct sunlight, directly underneath ducted reverse-cycle air conditioning vents, or near open entrance doors where hot cross-drafts can disrupt the internal chilled air curtain. Keep the unit away from radiant heat sources such as commercial ovens, panini grills, or salamanders.

4. Levelling & Wheel Locking: Once wheeled into its permanent retail position on a level, structurally sound floor, depress the two front castor foot brakes to lock the 191 kg showcase firmly in place.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia to commercial business addresses with level ground access or loading docks. Due to the unit's substantial 191 kg net weight, 1400 mm height, and full four-sided double-glazed glass construction requiring strict upright transit, deliveries to residential or non-commercial addresses require a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to ordering to verify site access, delivery doorway clearances (minimum 720 mm clear doorway opening required), and receiving logistics.

Frequently Asked Questions

What are the merchandising advantages of a straight/square glass display compared to curved glass?

Square glass showcases provide a clean, modern aesthetic with flat, distortion-free top and front viewing surfaces. The flat glass top also provides a convenient visual line of sight and can serve as an ambient staging ledge during order assembly. Furthermore, straight glass showcases maximize internal shelf depth and cubic volume across every tier, giving operators greater usable display area compared to curved front profiles.

Why is under-shelf LED lighting important for chilled bakery displays?

Standard overhead-only lighting leaves lower shelf tiers in dark shadows once top shelves are filled with platters and cakes. The Bonvue C1510-3S features individual LED lighting strips beneath each glass shelf, ensuring every level receives uniform illumination. Because LEDs emit virtually no radiant heat, delicate cream decorations, chocolate ganache, and icings remain stable and visually pristine throughout the day.

Can the tempered glass shelves be adjusted to fit tall celebration cakes?

Yes. The three tempered glass shelves can be easily adjusted to different heights along the vertical support brackets. You can reposition or completely remove one or more shelves to create the vertical clearance needed for multi-tiered wedding cakes, tall dessert domes, or upright beverage bottles.

Does this chilled display cabinet require an external plumbing drain?

No. The Bonvue C1510-3S features an automated off-cycle defrost cycle with an integrated condensate evaporation system. Meltwater runoff from the cooling coil is channelled into an evaporation tray located near the compressor, where system heat naturally vaporises the moisture. No external floor wastes, tundishes, or drain plumbing are needed.

How do I activate the 2-year extended warranty coverage?

The Bonvue C1510-3S comes standard with a 1-Year commercial parts and labour warranty. Venue operators who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 1-Year parts-only warranty extension, providing up to 2 years of warranty protection across Australia.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
