Bonvue BM11SC Square Countertop Wet and Dry Bain Marie (3 x GN 1/1)

[GLOBAL_MSG_2]

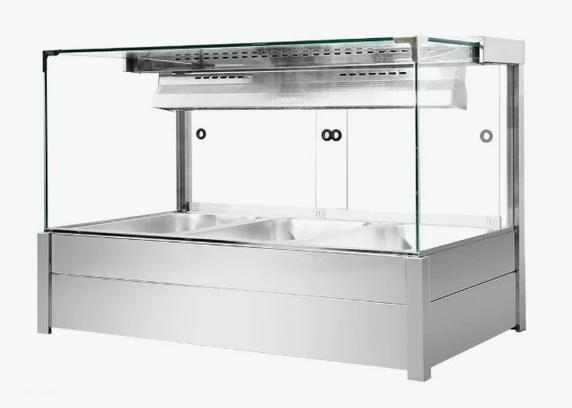

The Bonvue BM11SC Square Glass Countertop Hot Food Display Bain Marie is a compact, high-capacity heated display cabinet engineered specifically for Australian bakeries, cafes, takeaways, canteens, catering venues, and food service bars. Featuring a clean, modern square front profile crafted from 8mm tempered safety glass and rear 5mm tempered glass sliding doors, this 1055mm wide display unit optimizes food visibility and front-of-house presentation while maintaining precise food holding temperatures (+35°C to +85°C).

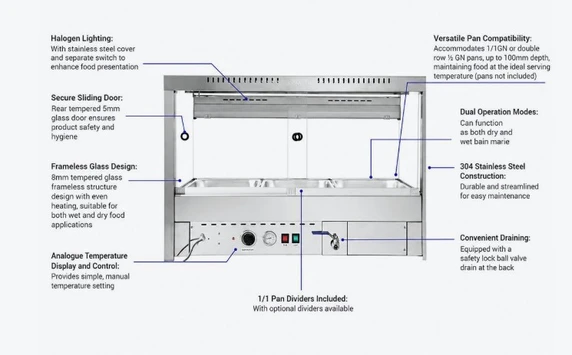

Constructed from premium 304-grade stainless steel on a durable tubular frame, the BM11SC accommodates 3 x GN 1/1 pans (or double-row 1/2 GN pans) up to 100mm deep. Powered by high-efficiency Italian heating elements, overhead heating lamps, and warm white LED display lighting under a stainless cover, it offers dual operational flexibility as both a wet and dry bain marie. Operating on a standard single-phase 10 Amp power supply (2194W) with a rear safety-lock ball valve drain, this hot food display cabinet includes up to 4 years of total warranty coverage upon product registration.

Why Choose the Bonvue BM11SC Square Countertop Bain Marie?

Choosing the Bonvue BM11SC Square Glass Hot Food Display equips commercial operators with an attractive, hygienic, and power-efficient food presentation cabinet designed to keep prepped dishes at safe holding temperatures.

Key reasons commercial operators specify the Bonvue BM11SC include:

• Versatile Wet or Dry Bain Marie Operation: High-efficiency Italian heating elements allow operators to run the tank dry for crispy fried foods or wet with water for delicate curries, gravies, pasta dishes, and stews.

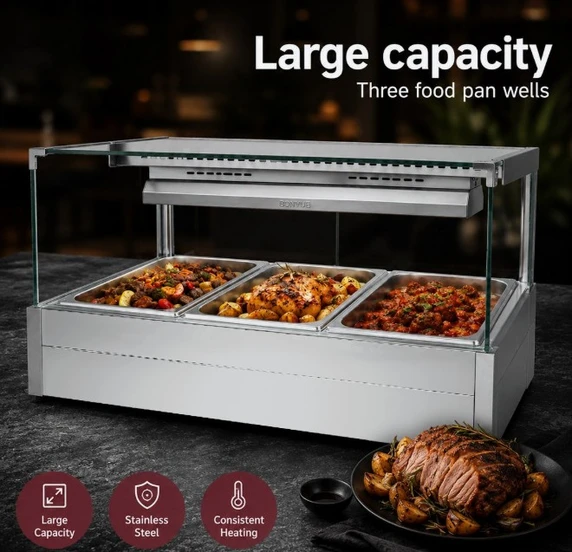

• 3 x GN 1/1 Pan Capacity Deck: Accepts three full-size GN 1/1 pans or double-row 1/2 GN pans (up to 100mm deep, pans sold separately) with included stainless steel pan dividers for flexible menu presentation.

• Warm White LED Display & Overhead Heating Lamps: Top-tier overhead quartz lamps paired with warm white LED illumination under a stainless cover highlight food textures and colours to boost front-of-house sales.

• 8mm Tempered Square Front Glass & Rear Sliding Doors: Panoramic square front glass structure provides exceptional architectural lines and visual clarity, while 5mm tempered rear sliding doors give staff smooth access while retaining cabinet heat.

• Heavy-Duty 304 Grade Stainless Steel Build: Full commercial-grade 304 stainless steel well and tubular chassis resist corrosion and withstand heavy daily cleaning routines.

• Effortless Drainage with Rear Ball Valve: Features a rear-mounted safety lock ball valve drain and internal max water level line for fast, safe water removal without spill risks.

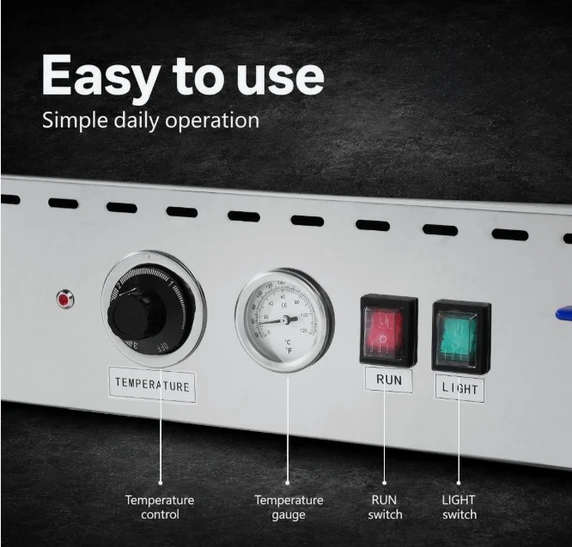

• Intuitive Temperature Monitoring: Analogue dial controller paired with an analogue gauge display and temperature reach light provides clear visual confirmation of food holding safety (+35°C to +85°C).

• Plug & Play 10A Electrical Power: Draws 2194W on single-phase 240V supply, plugging directly into standard Australian 10 Amp wall outlets for instant operation.

• Extended 2+2 Year Warranty Protection: Supported by 2 Years Parts & Labour plus an additional 2 Years Parts Only Warranty when registered online within 14 days of invoice.

Technical Specifications

Gastronorm Pan Notice: Gastronorm pans are sold separately. Contact our friendly sales team for a custom quote on GN 1/1 or 1/2 pan sets, lids, or matching mobile trolley bases.

Warranty Registration Notice: To activate the extended 2 Years Parts Only warranty (total 4 years parts coverage), products must be registered online within 14 days of invoice date.

Delivery & Freight Notice: Commercial equipment requires dedicated freight handling. Please contact our commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Operating & Cleaning Guidelines

1. Setup & Power Connection: Position the square glass bain marie on a sturdy, level counter or optional Bonvue BMT trolley. Plug into a dedicated 240V 10A wall socket. If operating in wet mode, fill the well with warm water up to the marked maximum water level line before switching on power.

2. Pre-Heating & Temperature Control: Turn on the analogue thermostat (+35°C to +85°C) and overhead lamps. Wait for the temperature reach indication light to illuminate before inserting GN pans filled with pre-heated food products.

3. End-of-Shift Sanitisation & Drainage: Turn off and unplug the unit. Allow water in the tank to cool safely before placing a bucket or drain hose beneath the rear safety-lock ball valve and opening the lever. Remove pan dividers to wash separately. Wipe down the 304 stainless steel tank, glass panels, and sliding doors using a soft microfiber cloth and mild food-safe sanitiser.

Frequently Asked Questions

1. What pan capacity does the Bonvue BM11SC Bain Marie hold?

The Bonvue BM11SC holds up to 3 x GN 1/1 Gastronorm pans or a double row of 1/2 GN pans with a maximum depth of 100mm. Stainless steel pan dividers are included.

2. Can the Bonvue BM11SC plug into a standard 10 Amp wall outlet?

Yes, this unit draws 2194W and operates on a single-phase 240V supply using a standard Australian 10 Amp plug, making it easy to position anywhere in your venue without specialized 15A electrical wiring.

3. Can I run the Bonvue BM11SC as a dry bain marie?

Yes, the BM11SC is engineered with Italian heating elements designed for both wet operation (using water for delicate foods, curries, and gravies) and dry operation (for fried or crisp menu items).

4. How does the rear drain valve operate?

The unit features a rear-mounted safety-lock ball valve drain. Simply attach a container or hose to the rear valve, unlock the safety catch, and turn the lever to empty the water tank safely after service.

5. What warranty is included with the Bonvue BM11SC?

The unit comes with a standard 2-year commercial parts and labour warranty. Registering the product online within 14 days of invoice unlocks an additional 2 years of parts-only protection (giving 4 years total parts coverage).

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
