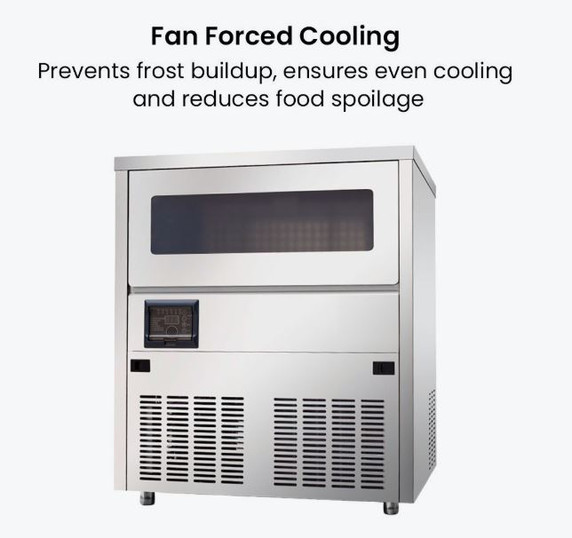

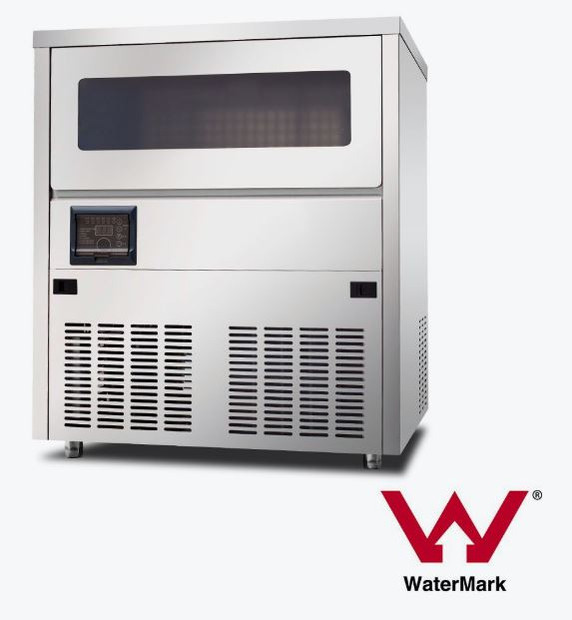

The Blizzard SN-101B Ice Maker is a powerful, high-capacity commercial ice machine engineered specifically for busy Australian hospitality venues, bars, cafes, restaurants, and event spaces. Capable of producing up to 100kg of crystal-clear 23mm³ cube ice per 24 hours, this robust unit comes equipped with an integrated 30kg storage bin and an internal drain pump for maximum installation flexibility.
Built with an eco-friendly R290 natural refrigerant, heavy-duty stainless steel cabinet, and world-class internal components, the SN-101B delivers reliable, high-volume ice output with excellent energy efficiency.
Key Features & Benefits
-

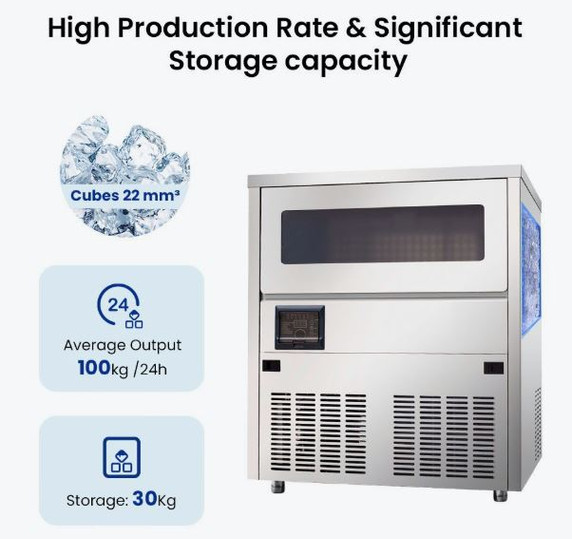

High Daily Output: Produces up to 100kg of solid 23mm³ cube ice every 24 hours to handle peak service periods.
-
Integrated Drain Pump: Includes a built-in internal drain pump, allowing easy installation even where gravity drainage is unavailable.
-
Eco-Friendly R290 Refrigerant: Utilises natural R290 hydrocarbon refrigerant for superior cooling efficiency and minimal environmental impact.
-
WaterMark Certified: Fully compliant with Australian plumbing standards and health safety regulations.
-
Generous Bin Storage: 30kg total bin storage capacity (with bin control setting defaulted to ~14kg for optimal ice rotation).
-
Durable Stainless Steel Construction: Premium stainless steel exterior with a strong hinged door designed for high-traffic commercial environments.
-
Adjustable Feet: Allows precise levelling and height adjustment on uneven kitchen floor surfaces.
Premium Global Engineering & Components
-
German EBM-Pabst Fans: Exceptional air circulation for optimal heat dissipation and long compressor life.
-
Hisakage PLC Control System: Smart digital controls for precise cycle management and dependable continuous operation.
-
Denmark Danfoss Expansion Valve & Dry Filter: Premium refrigerant control ensuring optimal temperature control and system protection.
-
Japanese Saginomiya Solenoid & Hydraulic Valves: Industry-leading valving for seamless harvest cycles and fluid management.
-
U.S. Morrill Water Pump: Heavy-duty, continuous-duty pump engineered for reliable water flow.
Technical Specifications
| Feature |
Specification |
| Model |
Blizzard SN-101B |
| Ice Type |
Full Cube ($23\text{ mm}^3$) |
| Daily Output |
Up to 100 kg / 24 Hours |
| Storage Capacity |
Approx. 30 kg (Bin Control Setting ~14 kg) |
| Dimensions (mm) |
666 (W) x 650 (D) x 780 (H) |
| Door Type |
1 x Hinged Door |
| Body Construction |
Heavy-Duty Stainless Steel |
| Refrigerant |
Eco-Friendly R290 Natural Gas |
| Drainage |
Integrated Internal Drain Pump Included |
| Certification |
WaterMark Certified |
| Electrical Supply |
240V / 50Hz (Standard 10A Outlet, 700W) |
| Warranty |
2 Years Parts & Labour Warranty |
Delivery & Freight Notice: Delivery to non-commercial or residential addresses requires a customised freight calculation. Please contact our commercial sales team prior to placing your order.
Maintenance & Warranty Compliance
To protect your equipment, maintain optimal ice clarity and thickness, and preserve your warranty coverage, regular preventative maintenance is required for all commercial ice machines.
Warranty Requirement: An approved commercial water filter must be installed upon setup, or the 2-year warranty will be void.
Essential Maintenance Schedule
-

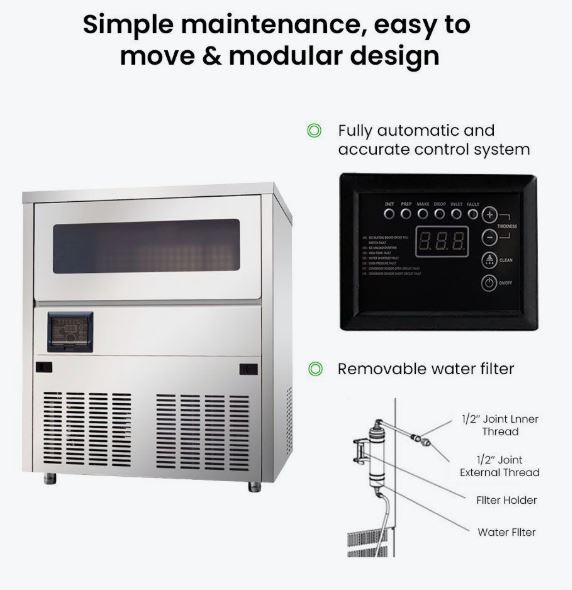

Water Filter Cartridge Replacement (Every 6 Months): Replace the inline water filter cartridge bi-annually to protect internal components against scale buildup and impurities.
-
Evaporator Plate De-scaling: Routinely de-scale and clean the refrigeration evaporator plate using an approved commercial de-scaling solution to maintain proper cube formation and harvest release.
-
Routine Sanitisation: Regularly clean and sanitise the internal water reservoir, water distribution lines, and storage bin interior to ensure complete food safety compliance.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
