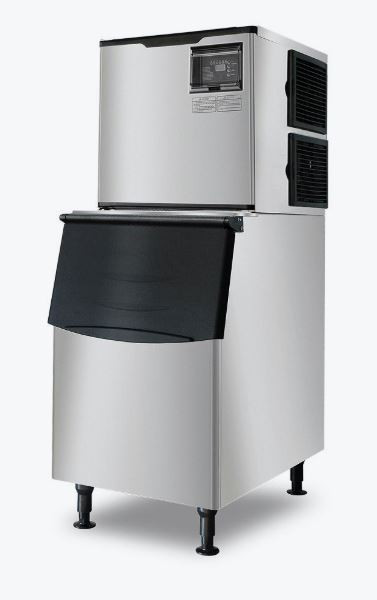

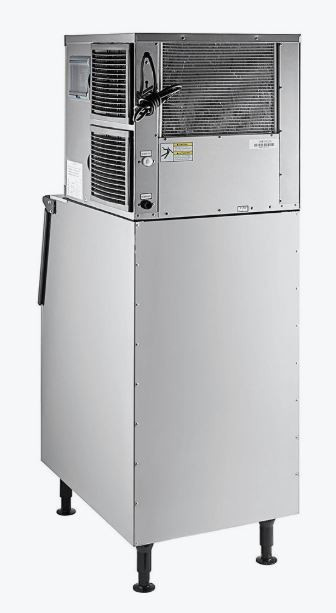

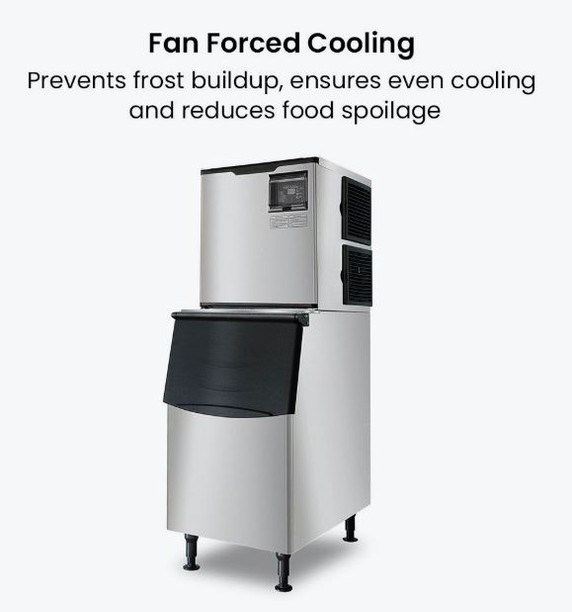

Blizzard Ice Maker Air-Cooled - SN-700P

**WINTER Sale valid until 30th July + [GLOBAL_MSG_2]**

Key Features:

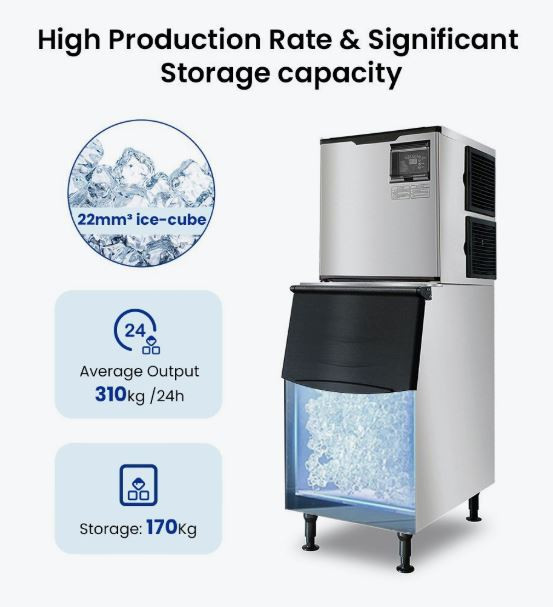

• Output/24h: Up to 310kg
• Storage Capacity: Approx. 170kg (Bin Control Setting Approx. 170kg)
• U.S. Morrill Water Pump
• German ËBM-Pabst fan
• Italian Aspera Compressor
• Hisakage PCL
• 22mm³ ice-cube
• Denmark Danfoss Expansion Valve & Dry Filter
• Japanese Saginomiya Solenoid & Hydraulic valve
• Watermark-certified product sticker

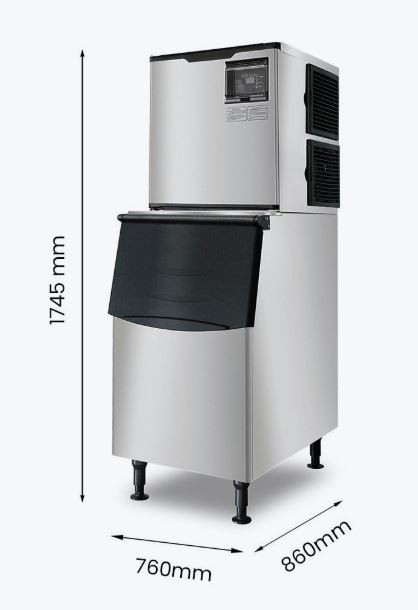

Dimensions: 760 mm W x 860 D x 1745 H

Doors: 1

Door Type: Hinged

Body: Stainless Steel

Power: 240V; 1680W/10A

Net Weight (Kg): 105

Warranty: 2 Years Parts and Labour

Please note you will need to contact our friendly sales team for a quote to deliver to a residential address.

All Ice machines MUST be maintained to ensure high performance.

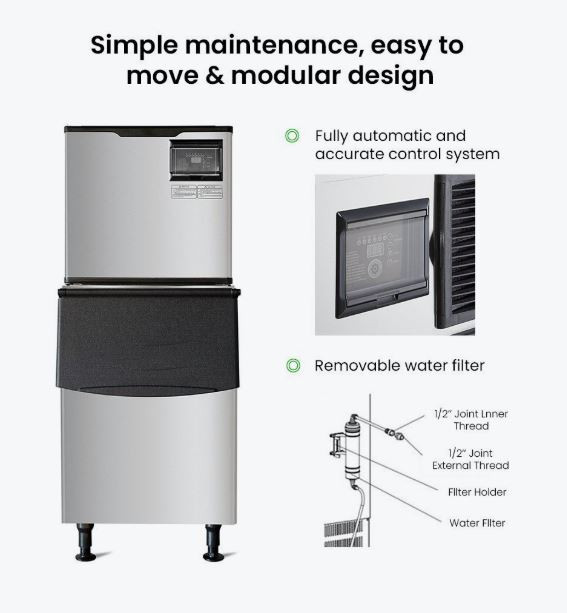

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.



• Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.



• Sanitise water reservoir, distribution tubes, and bin interior.



• Clean and flush condenser coils (air-cooled units).



• Inspect condenser fan motor and blades.



• Check inlet water valve, float, and filters for correct operation.



• Verify ice thickness probe or sensor calibration.



• Inspect refrigerant pressures, superheat, and subcooling - adjust if necessary.



• Test compressor amperage and general performance.



• Inspect water pump operation and clean pump housing.



• Check harvest cycle operation (heater or hot gas valve).



• Inspect electrical connections, relays, and contactors.



• Replace inline water filter cartridge.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
