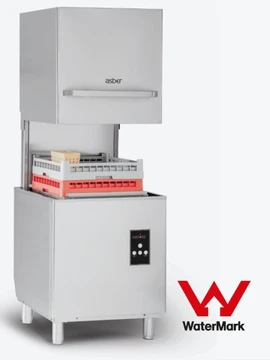

Asber GEX-H500BDD Commercial Single-Phase Passthrough Dishwasher with Drain Pump

[GLOBAL_MSG_2]

The Asber GEX-H500BDD Commercial Hood-Type Passthrough Dishwasher is a reliable, high-performance warewashing unit designed specifically for Australian cafes, restaurants, bars, clubs, and catering venues requiring efficient commercial cleaning on a single-phase 15A electrical supply. Featuring an intuitive electromechanical control panel, built-in drain pump, and integrated chemical dosing, this passthrough washer simplifies kitchen dishwashing operations while maintaining exceptional hygiene standards.

Equipped with durable stainless steel upper and lower wash arms, anti-backflow protection, and a low 2.6-litre water consumption per rinse cycle, the GEX-H500BDD delivers outstanding washing performance while keeping utility overheads under control.

Key Features & Benefits

• Single-Phase 15A Plug Convenience: Operates on 240V single-phase power (3.6kW / 15A), eliminating the need for expensive 3-phase power upgrades in smaller commercial kitchens.

• Simple Electromechanical Controls: Durable, user-friendly control interface with 2 fast washing cycles (90 and 180 seconds) plus a continuous cycle mode (up to 600 seconds) for heavily soiled pots and pans.

• Factory-Fitted Drain Pump & Rinse Aid Dispenser: Integrated automatic drain pump and rinse aid dosing system streamline operation and allow flexible drain positioning.

• Hygienic High-Temp Sanitation: Built-in safety thermostats enforce a 60°C wash temperature and an 85°C final rinse temperature to ensure full food safety compliance.

• Dual Stainless Steel Wash & Rinse Arms: Robust upper and lower rotating stainless steel arms ensure thorough water coverage and effective soil removal across every tray.

• Adjustable Boiler Power (Multi-Power): Flexible boiler heating configuration (2kW base rating) allows tailored energy usage based on venue hot water supply.

• Water & Energy Savings: Uses just 2.6 litres of water per rinse cycle, helping reduce chemical usage and overall energy bills.

• Complete Accessory Kit Included: Comes ready to operate with 1 x plate basket (CP-16/18), 1 x flat/cup basket (CT-10), and 1 x cutlery basket (CU-7).

Technical Specifications

Delivery & Freight Notice: Shipping rates vary across Australia depending on your location. Due to the dimensions and weight of this commercial unit (94kg), please contact our friendly commercial sales team for a custom freight quote if delivery is required for a residential or non-commercial address.

Installation & Mandatory Compliance

1. Electrical Requirement: Requires a dedicated 240V 15 Amp single-phase power outlet installed by a qualified electrician.

2. Plumbing & Hot Water Connection: Hot water inlet connection is required. Must be installed and commissioned by a licensed plumber in accordance with AS/NZS 3500 plumbing standards.

3. Daily Cleaning Routine: At the end of each trade shift, lift out and clean the composite tank filter to prevent food residue accumulation and maintain peak wash pump pressure.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
